Steering Column Lock Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

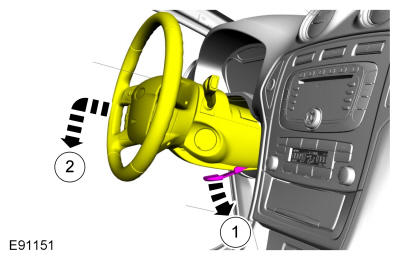

  1. GFD570167Courtesy of FORD MOTOR COMPANY
  2. GFD570168Courtesy of FORD MOTOR COMPANY
  3. GFD570161Courtesy of FORD MOTOR COMPANY
  4. GFD570162Courtesy of FORD MOTOR COMPANY

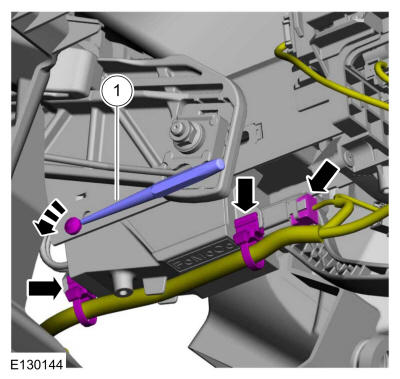

  5. On both sides. Use the General Equipment: Center Punch
    GFD570173Courtesy of FORD MOTOR COMPANY

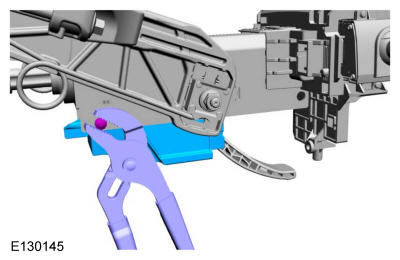

  6. On both sides.
    GFD570174Courtesy of FORD MOTOR COMPANY
