Steering Column Control Module (SCCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current SCCM (steering column control module) installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.

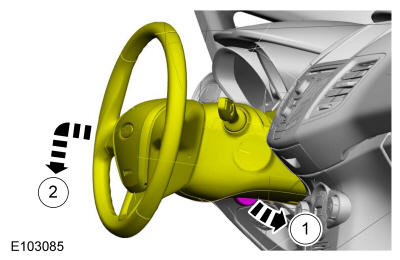

Courtesy of FORD MOTOR COMPANY

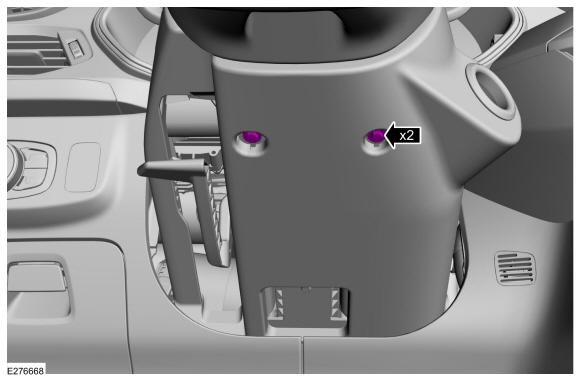

Remove the retainers.

Courtesy of FORD MOTOR COMPANY
On both sides.

Courtesy of FORD MOTOR COMPANY

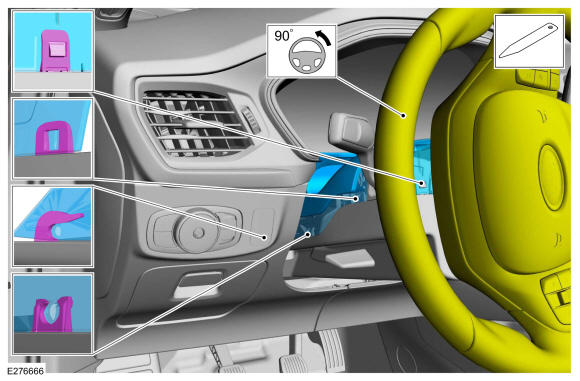

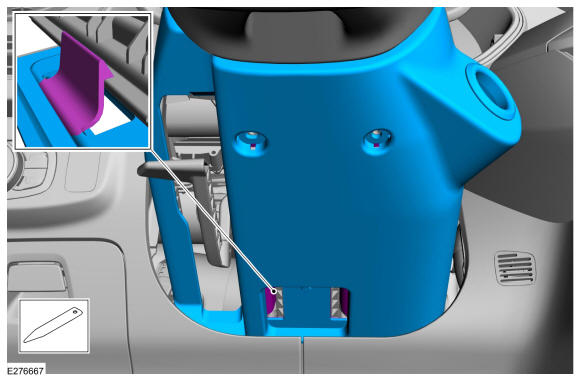

Release the clips.

Courtesy of FORD MOTOR COMPANY

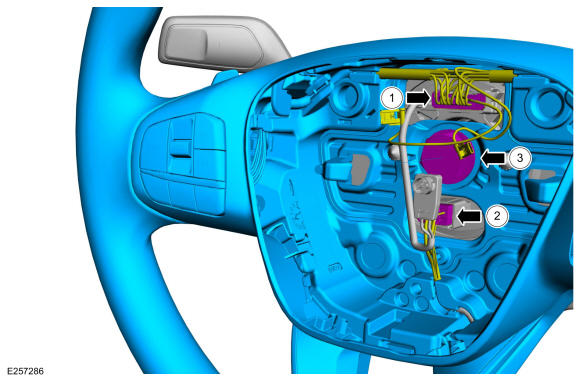

Remove the driver airbag. Refer to: Driver Airbag .
NOTE: Make sure that the steering column lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

Courtesy of FORD MOTOR COMPANY
1. If equipped.
2. NOTE: Make sure a new bolt is installed.

  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

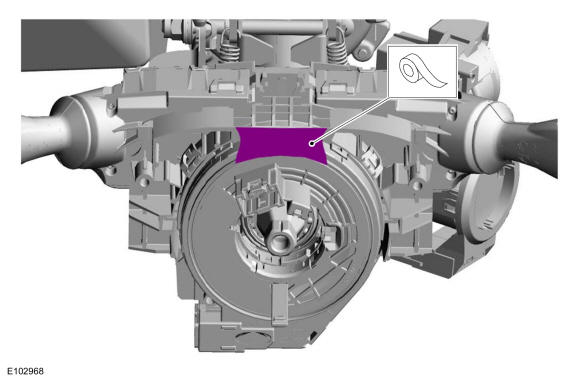

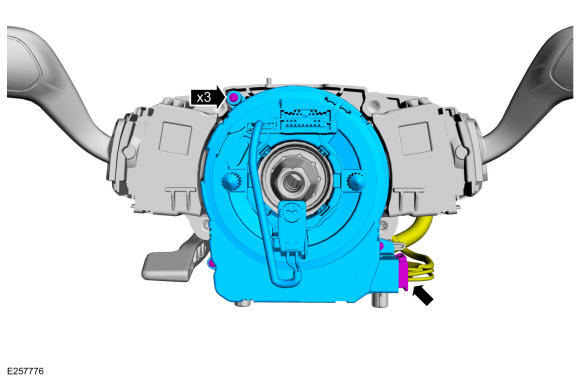

NOTE: Make sure that the clockspring rotor does not rotate.

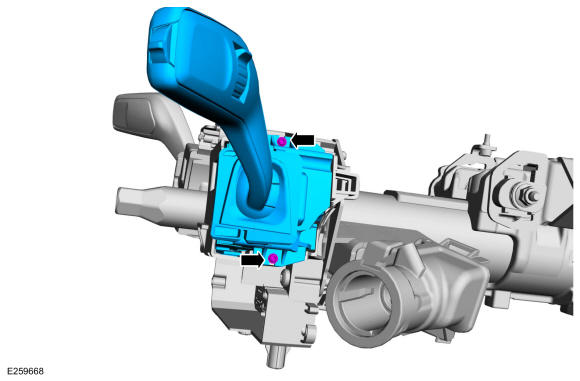

NOTE: This step is only necessary when installing a new component.

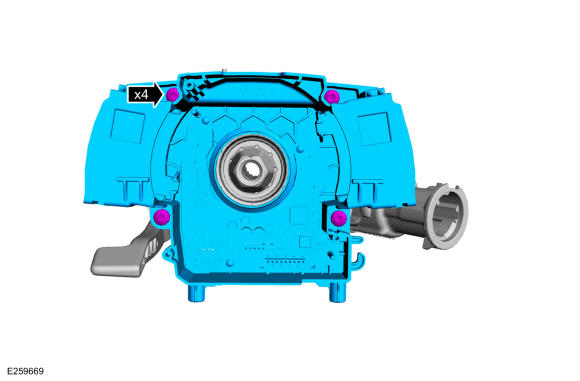

NOTE: This step is only necessary when installing a new component.

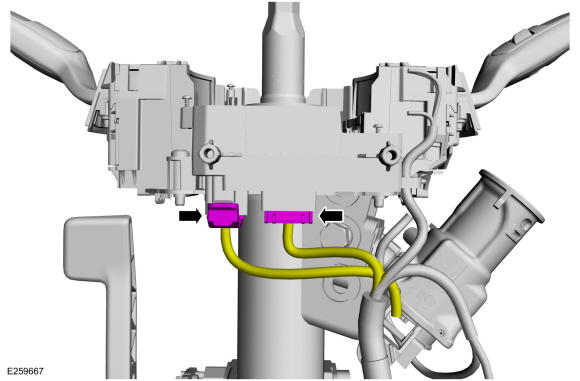

NOTE: Make sure that the component terminals are not bent or damaged.
