Steering Column Control Module (SCCM): Installation

  1. To install, reverse the removal procedure.
  2. NOTE: This step is only necessary when installing a new component.

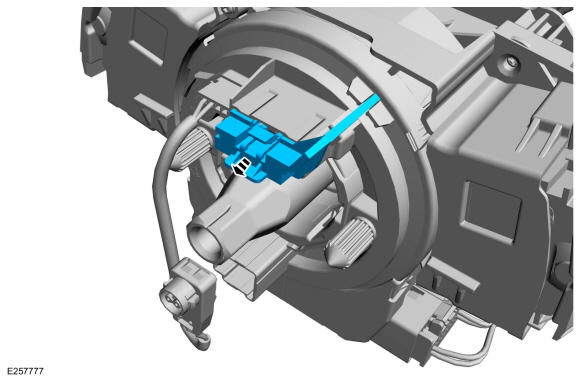

    GFD570186Courtesy of FORD MOTOR COMPANY
  3. GFD570187Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the SCCM following the on-screen instructions.
