Ignition Lock Cylinder Housing: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the SASM. Refer to: Steering Angle Sensor Module (SASM) .

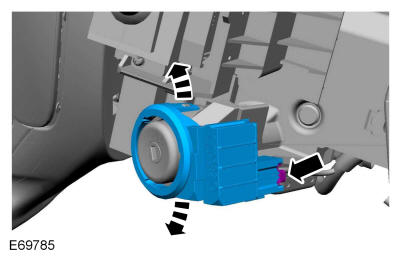

  2. If equipped. Release the tabs and remove the PATS transceiver.
    GFD570154Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only necessary when installing a new component.

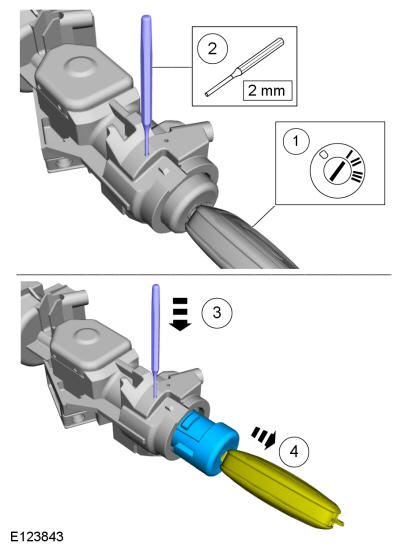

    1. Insert and turn the ignition key to the I (ACC) position.
    2. Locate the hole and insert the 2mm punch. Use the General Equipment: 2 mm Punch
    3. Press the punch down. Use the General Equipment: 2 mm Punch
    4. Extract the ignition lock.

    GFD570155Courtesy of FORD MOTOR COMPANY

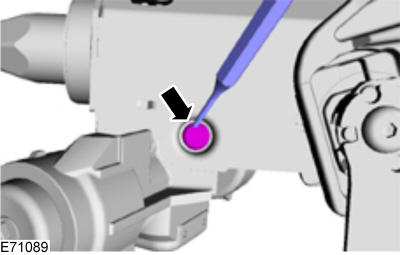

  4. Cut a slot into the head of the ignition lock cylinder housing bolt.
    GFD570156Courtesy of FORD MOTOR COMPANY

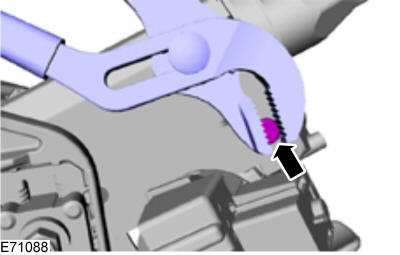

  5. Remove and discard the ignition lock cylinder housing bolts.
    GFD570157Courtesy of FORD MOTOR COMPANY

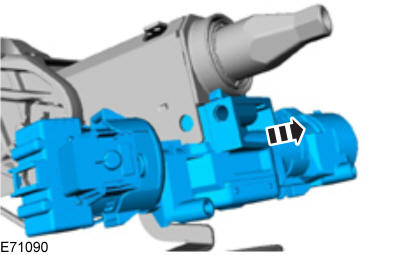

  6. Remove the ignition lock cylinder housing.
GFD570158Courtesy of FORD MOTOR COMPANY
