Parking Assist Control Module (PAM) - Long Wheelbase: Removal

  1. Remove the RH load space trim panel. Refer to: LOADSPACE TRIM PANEL RH - LONG WHEELBASE

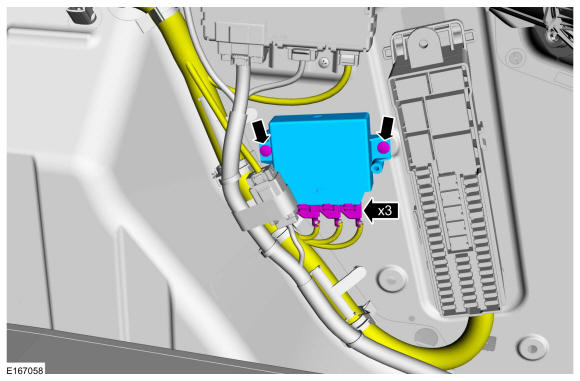

    • Disconnect the PAM electrical connectors.

    • Remove the screws and the PAM.

GFD573154Courtesy of FORD MOTOR COMPANY
