Front Parking Aid Speaker: Removal

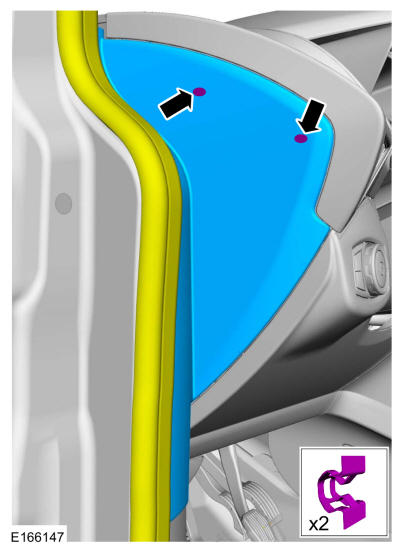

  1. Position aside the weatherstrip, release the clips and remove the side trim panel.
    GFD573150Courtesy of FORD MOTOR COMPANY

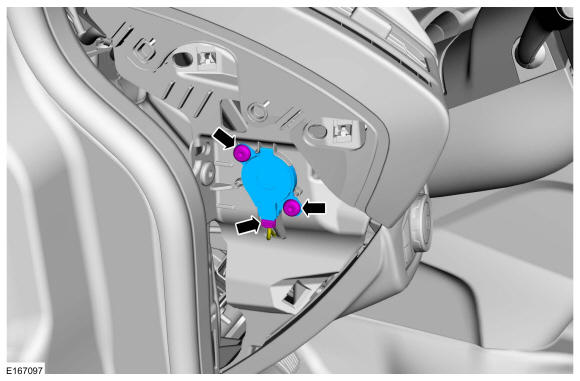

    • Disconnect the front parking aid speaker electrical connector.

    • Remove the screws and the front parking aid speaker.

GFD573151Courtesy of FORD MOTOR COMPANY
