Parking Aid - Component Location

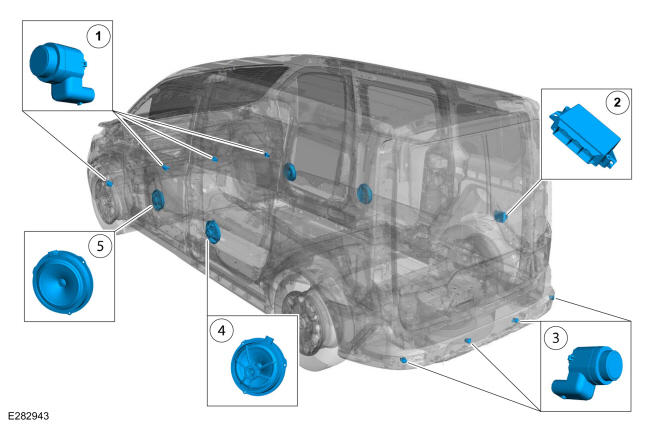

Component Location

GFD573140Courtesy of FORD MOTOR COMPANY
Item Description
1 Front parking aid sensors
2 PAM
3 Rear parking aid sensors
4 Rear audio system speakers
5 Front audio system speakers
