Rear Parking Aid Camera: Removal

Vehicles with liftgate

1. Remove the liftgate release handle. Refer to: Liftgate Release Handle .

   All vehicles

2. Remove the rear door molding. Refer to: Rear Door Molding .

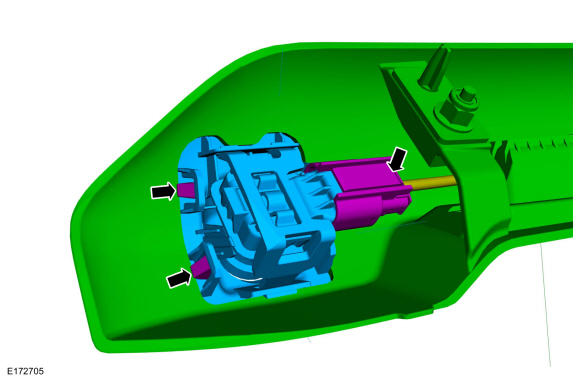

3. • Disconnect the rear parking aid camera electrical connector.
   • Release the tabs and remove the rear parking aid camera assembly.

   Courtesy of FORD MOTOR COMPANY

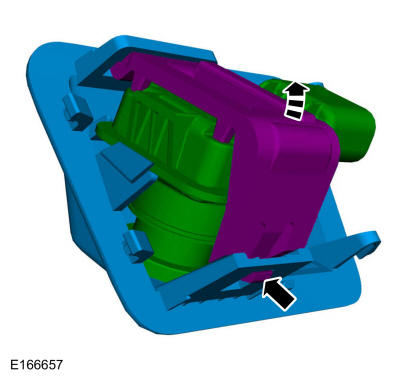

4. Remove the rear parking aid camera.
   • Release the tab.
   • Remove the rear parking aid camera bracket.

Courtesy of FORD MOTOR COMPANY
