Parking Aid - Component Location

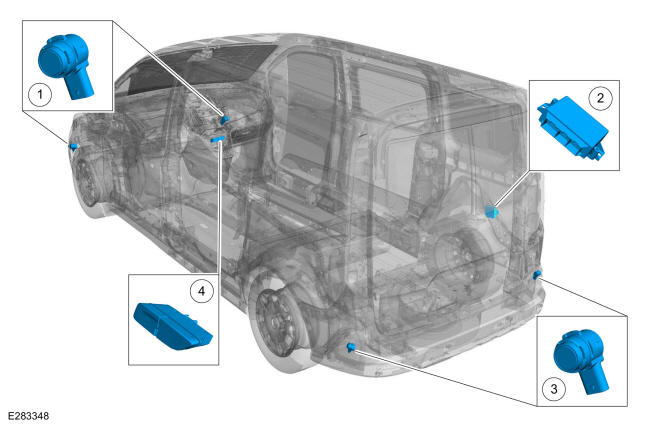

Component Location - Active Park Assist

GFD573170Courtesy of FORD MOTOR COMPANY
Item Description
1 Front active park assist sensors
2 PAM
3 Rear active park assist sensors
4 Active park assist switch
