Parking, Rear and License Lamps

Fig 1: Identifying Parking, Rear and License Lamps Wiring Diagram (Of 2)
GFDWR130243Courtesy of FORD MOTOR COMPANY

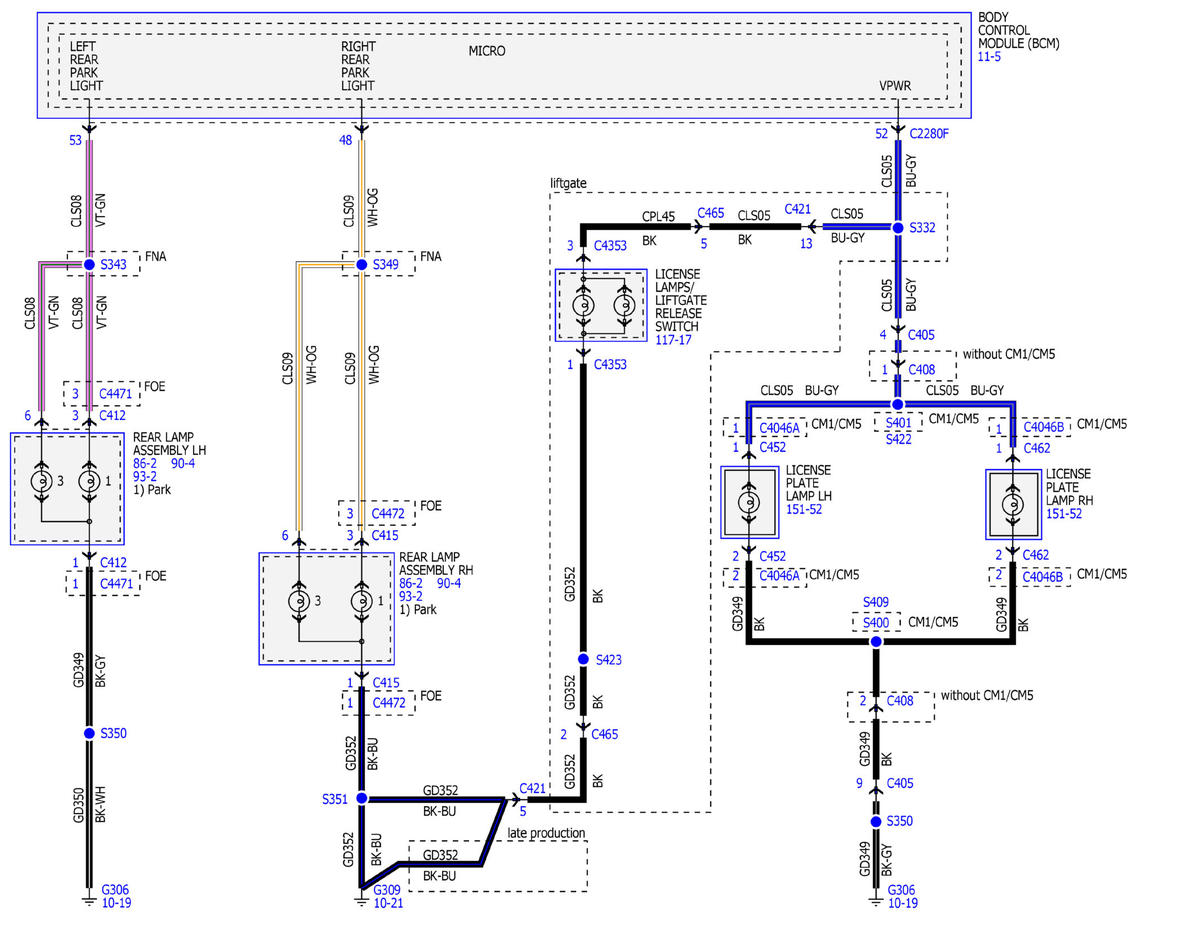

Fig 2: Identifying Parking, Rear and License Lamps Wiring Diagram (2 Of 2)
GFDWR130244Courtesy of FORD MOTOR COMPANY
