OEM Wiring Diagrams: Headlamps/Autolamps

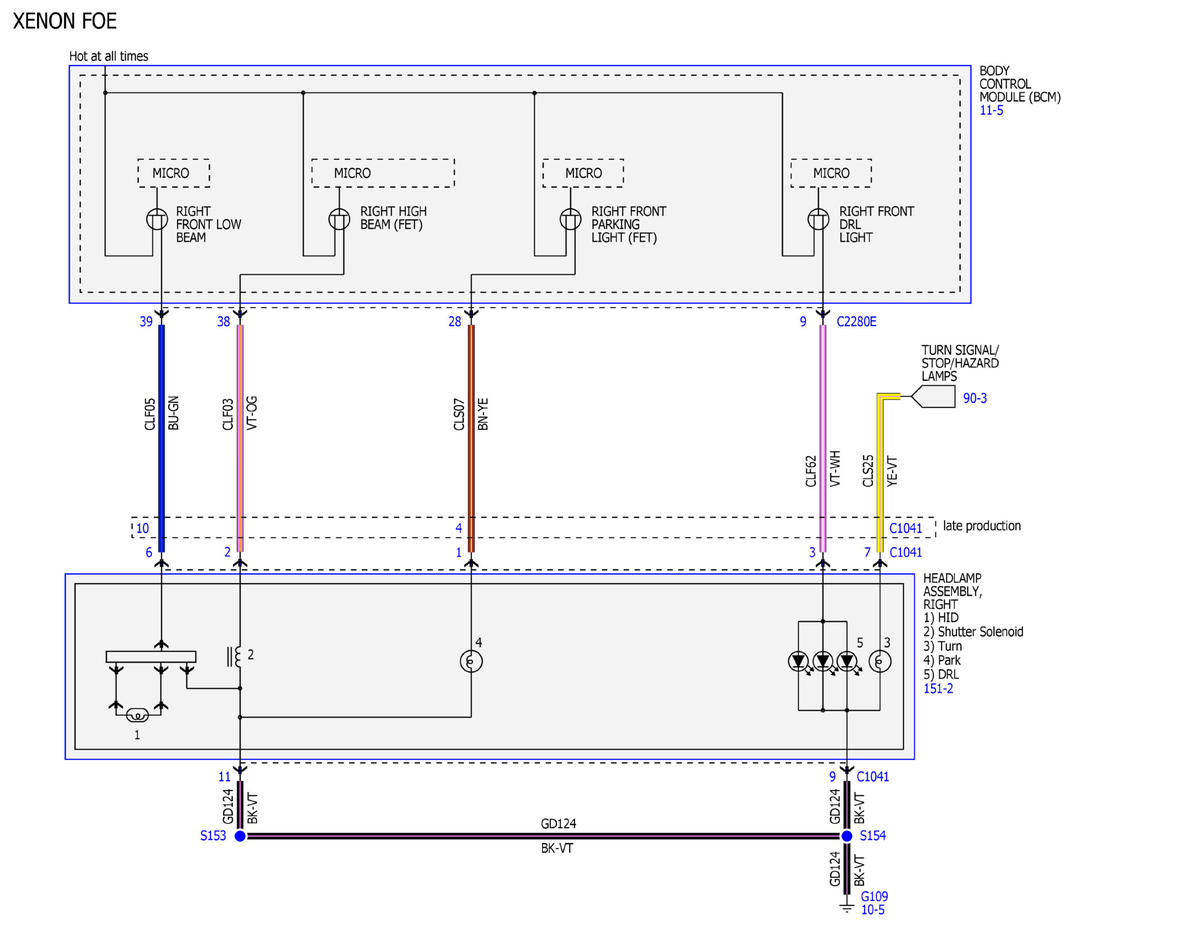

Fig 1: Identifying Headlamps/Autolamps Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR COMPANY

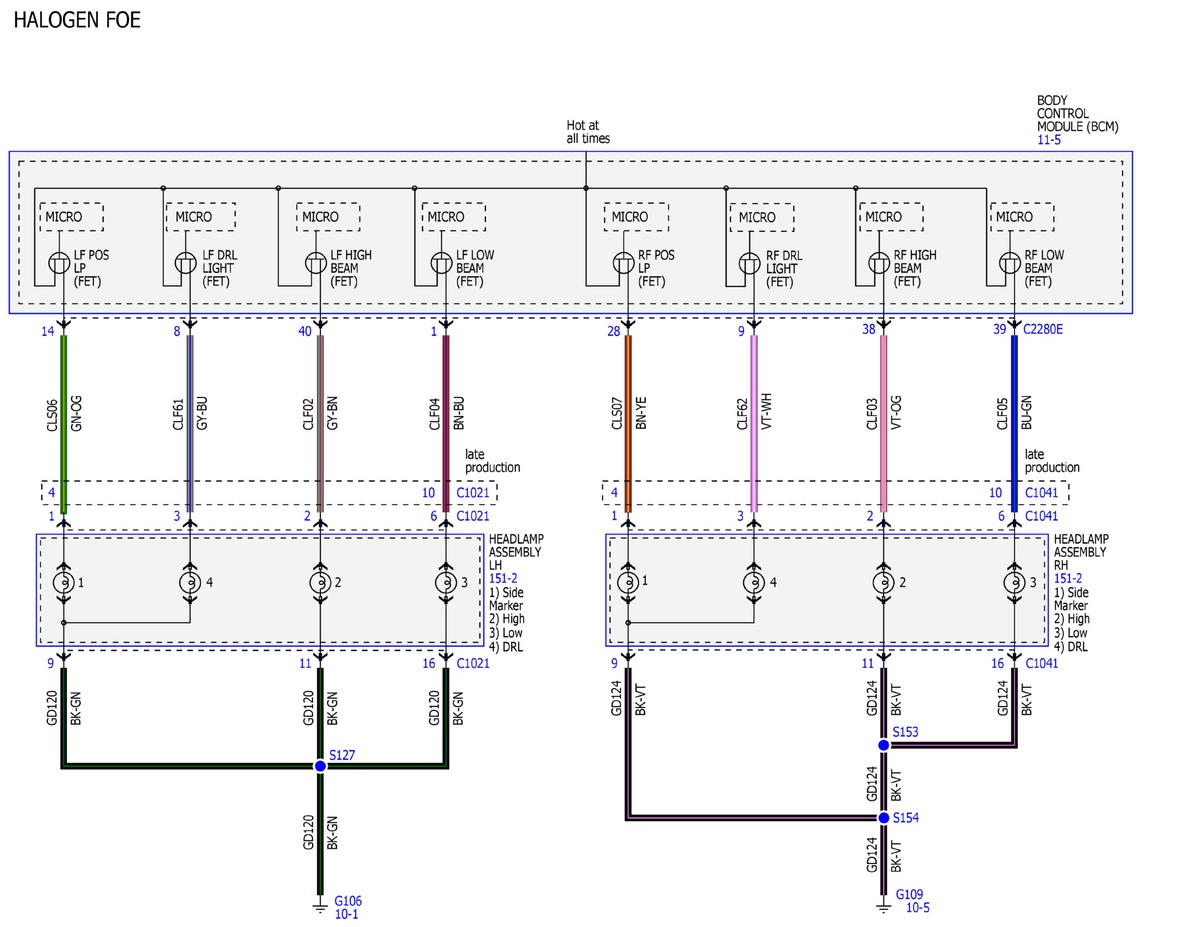

Fig 2: Identifying Headlamps/Autolamps Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR COMPANY

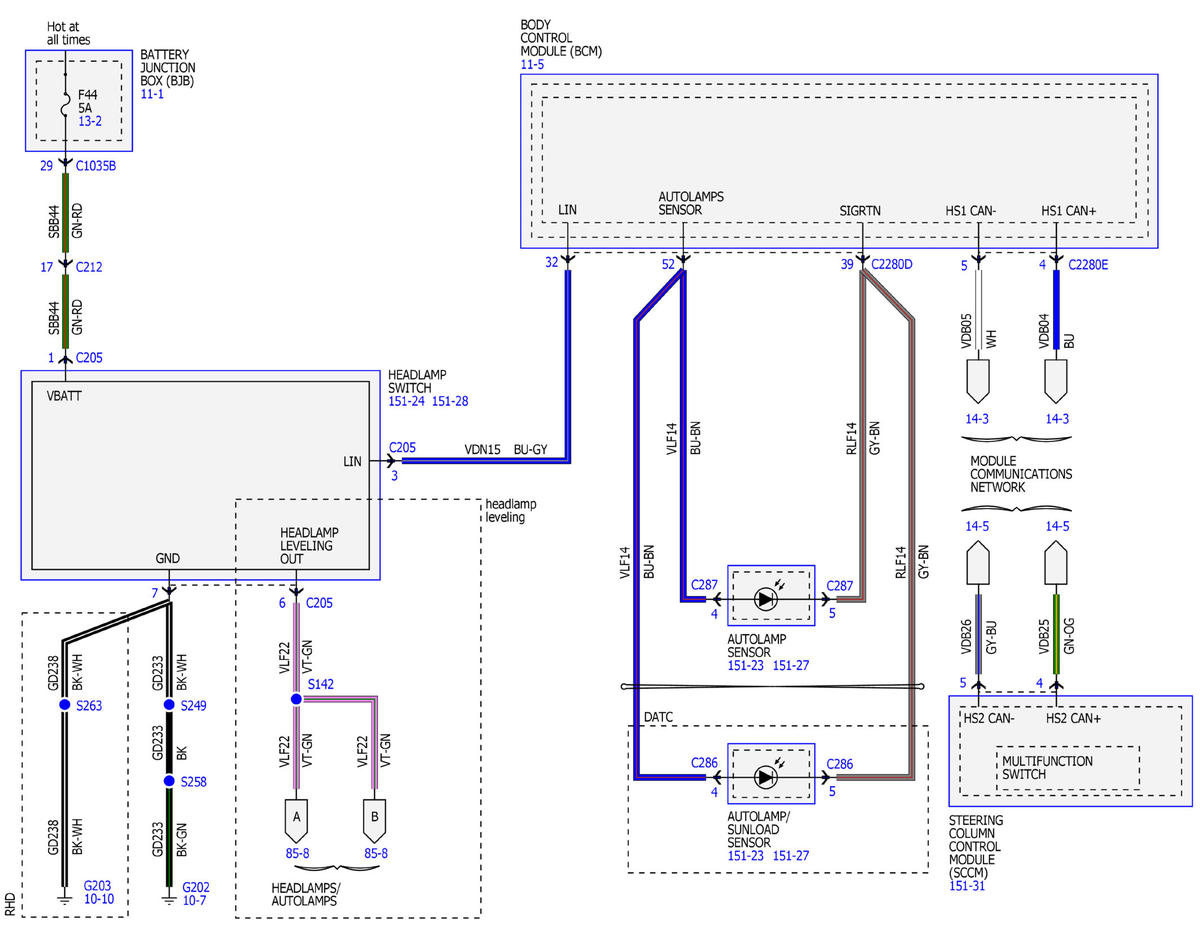

Fig 3: Identifying Headlamps/Autolamps Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR COMPANY

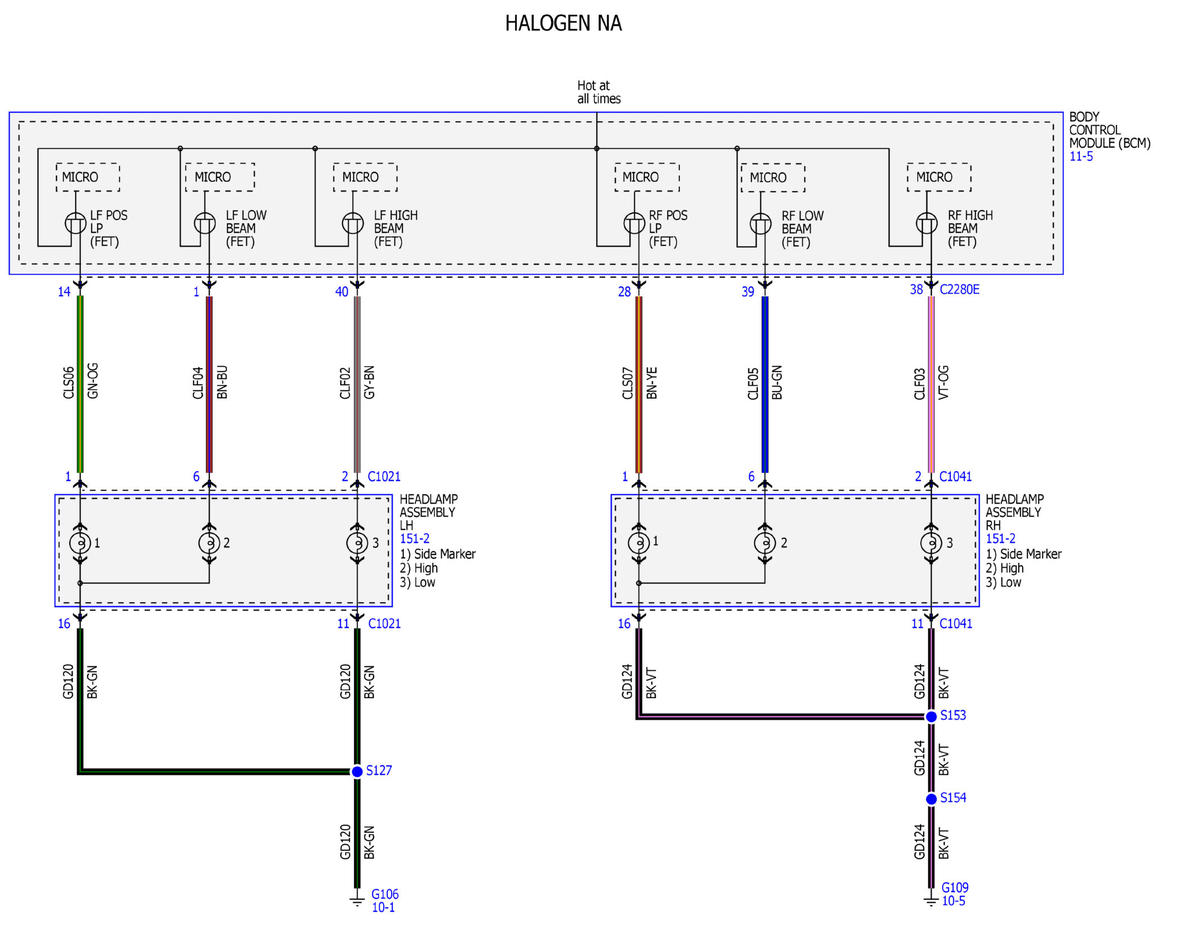

Fig 4: Identifying Headlamps/Autolamps Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR COMPANY

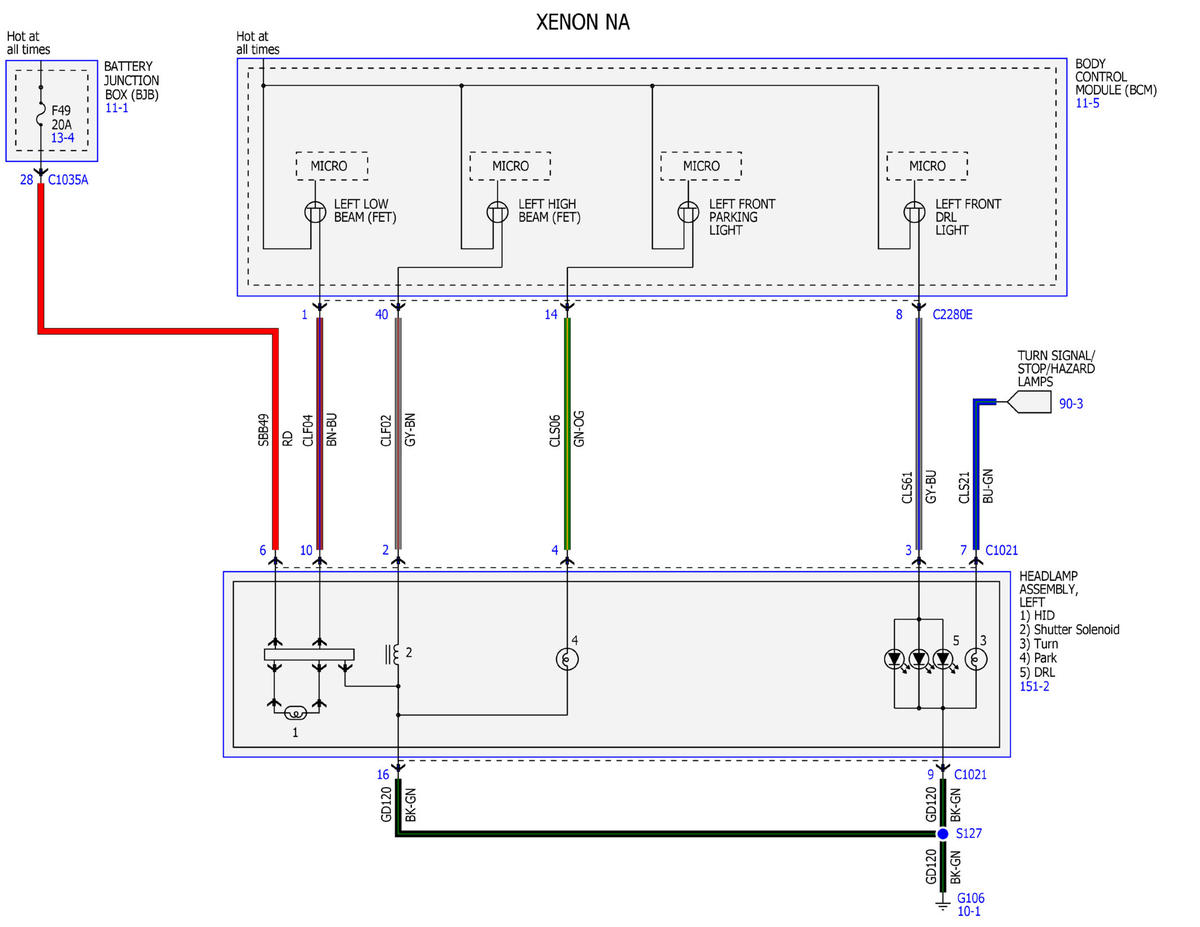

Fig 5: Identifying Headlamps/Autolamps Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR COMPANY

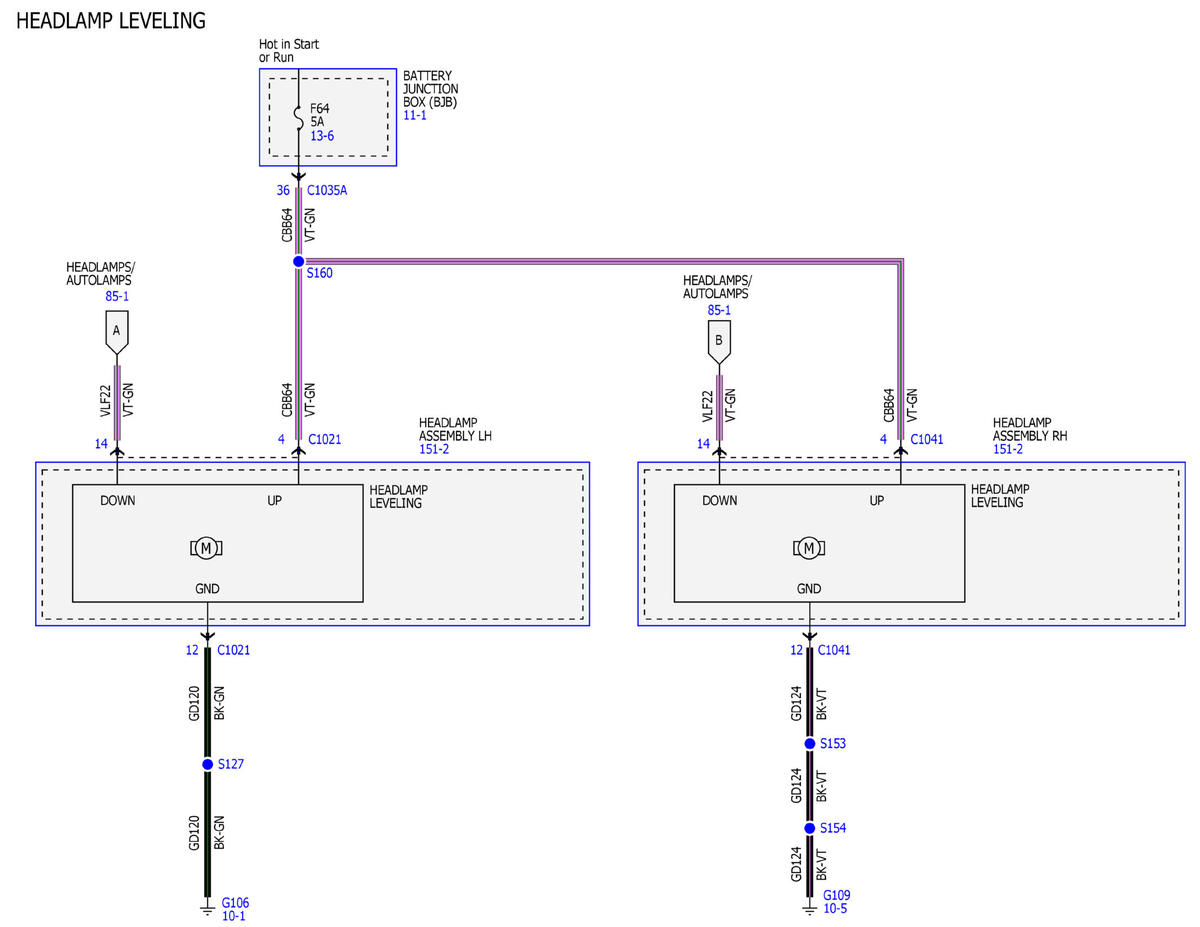

Fig 6: Identifying Headlamps/Autolamps Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR COMPANY

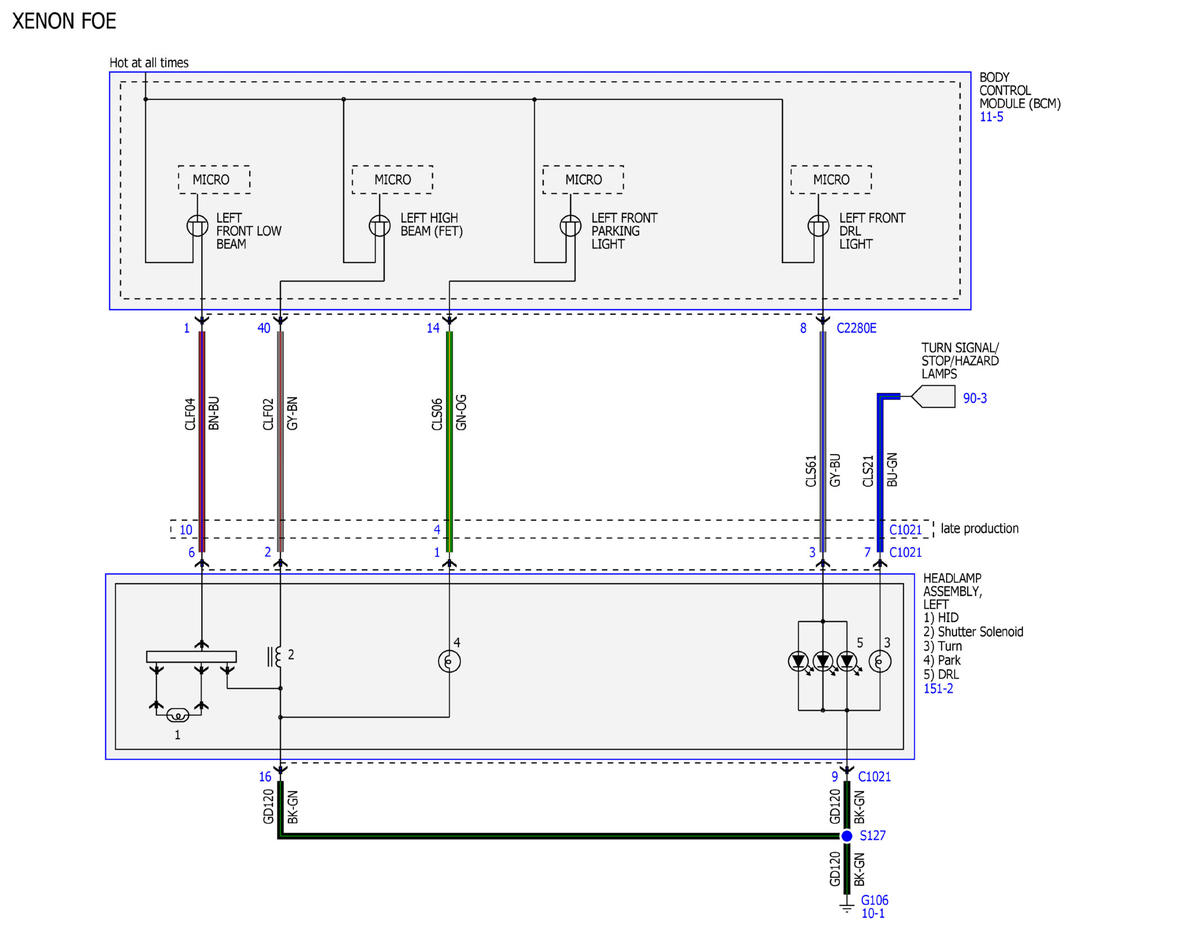

Fig 7: Identifying Headlamps/Autolamps Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR COMPANY

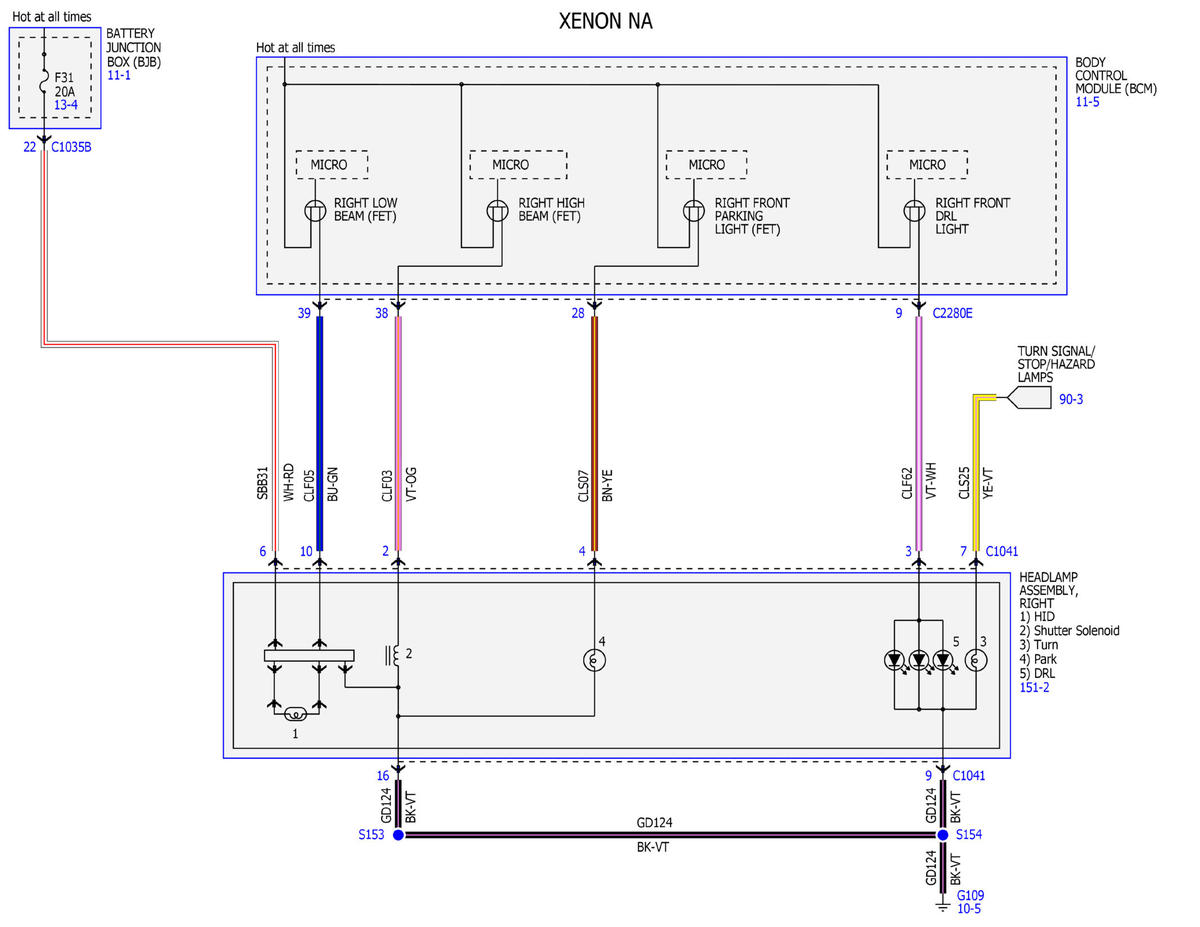

Fig 8: Identifying Headlamps/Autolamps Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR COMPANY
