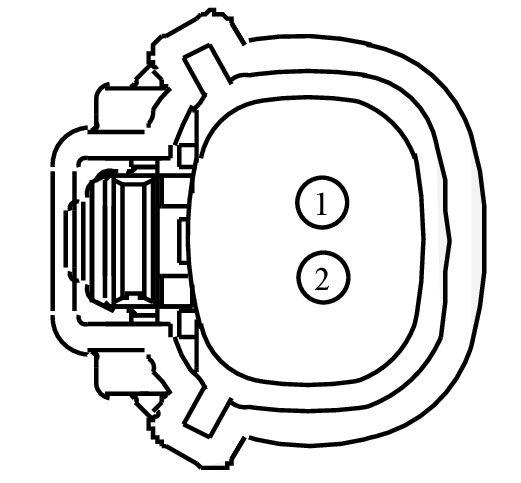

Connector End View (C1795) - VACUUM SOLENOID VALVE (VSV)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1795 | VACUUM SOLENOID VALVE (VSV) | BK | 14305 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CCA72 (WH-VT) | 18 | CTRL MOD. - VACUUM ON DEMAND AUTOMATED SHUT-OFF VALVE (ASOV) | N/A | ||||
| 2 | CBB69 (WH-VT) | 18 | FUSE - 69 OR CIRCUIT BREAKER | N/A | ||||

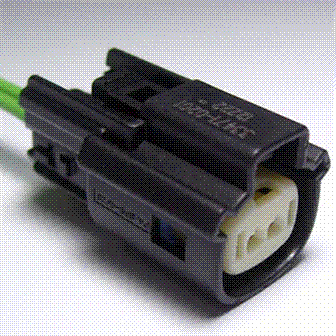

Available Pigtail Kits
Pigtail Kit Part Number WPT-1631
Service Part Number:
EU2Z-14S411-MB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Fog/Driving
- Motor - Electric Water Pump
- Motor - Long Travel
- Pump - Fuel Injection
- Solenoid - Fuel Volume Regulator Control
- Valve - Fuel Metering
- Valve - Vacuum On Demand Auto Shutoff
Pigtail Kit Part Number WPT-1402
Service Part Number:
EU2Z-14S411-MA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Motor - Electric Water Pump
