Valve Cover LH: Installation

All vehicles

1. NOTE: Installation of new seals is only required if damaged seals were removed.

   Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Installation of new seals is only required if damaged seals were removed.

   Using the special tools, install new VCT variable force solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

   Courtesy of FORD MOTOR COMPANY

3. Install a new gasket.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.

   Apply an 12 mm (0.47 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.

   Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

5. Install the valve cover and tighten the bolts.

   Torque: 89 lb.in (10 Nm)

   Fig 1: LH Valve Cover Tightening Sequence

   Courtesy of FORD MOTOR COMPANY
6. 1. Push the oil level indicator tube into the engine.
   2. Rotate the oil level indicator tube clockwise.
   3. Verify the tab is locked in place.
   4. Install the oil level indicator.

   Courtesy of FORD MOTOR COMPANY

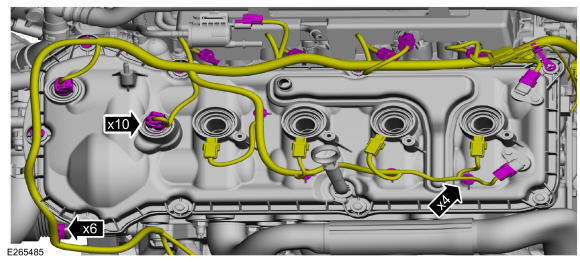

7. 1. Position the wiring harness and attach the retainers.
   2. Connect the engine wiring harness electrical connectors.

   Courtesy of FORD MOTOR COMPANY

8. Install the LH ignition coils. Refer to: Ignition Coil-On-Plug .
9. Position the fuel supply tube and connect the quick release coupling. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

   Mach 1

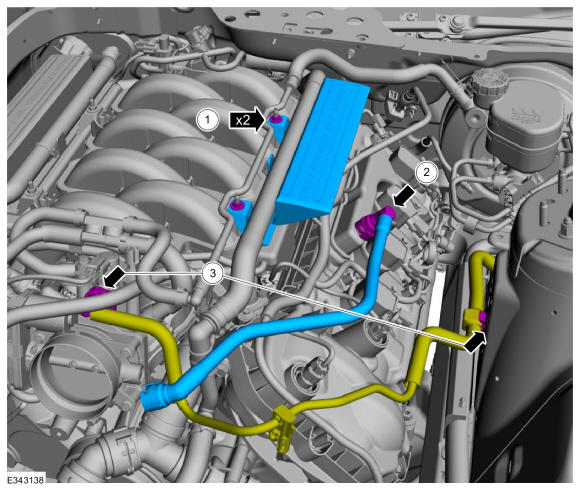

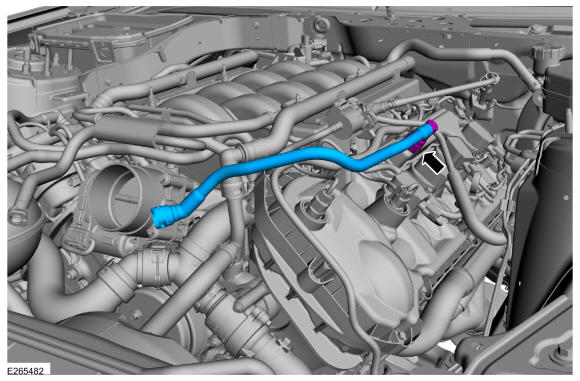

10. 1. Install the heater hose support and the nuts.

       Torque: 62 lb.in (7 Nm)

    2. Position the crankcase vent tube and connect the quick release coupling. Refer to: Quick Release Coupling .
    3. Connect the quick release coupling and attach the retainer. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

    GT

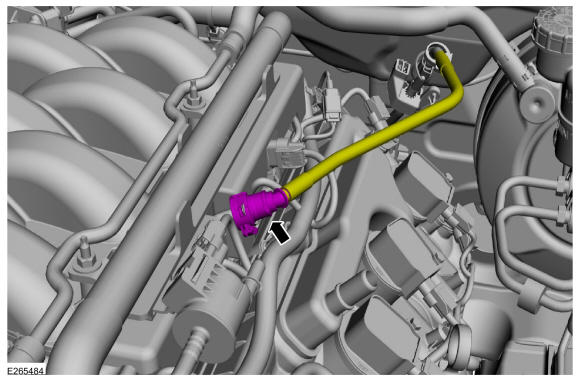

11. Connect the quick release coupling and attach the retainer. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

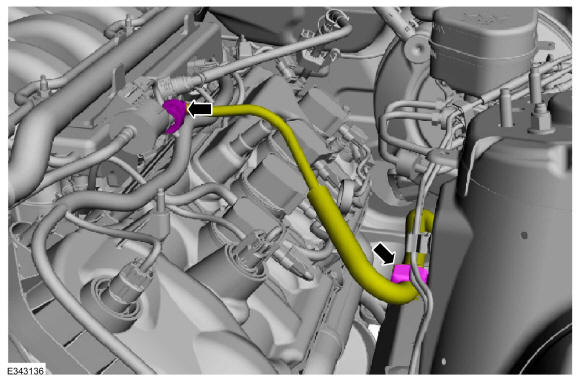

12. Install the crankcase vent tube and connect the quick release coupling.. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

13. Install the following items:
    1. Intake air resonator outlet pipe. Refer to: Intake Air Resonator Outlet Pipe .
    2. Air cleaner. Refer to: Air Cleaner .
    3. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

14. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

    Install the engine appearance cover and the nuts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Install the engine appearance cover caps.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

16. If equipped, install the cowl extension and fasteners.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

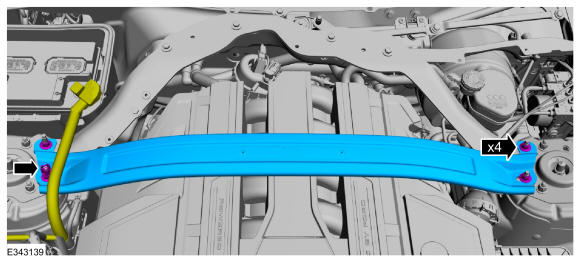

17. 1. If equipped, install the strut tower cross brace and the nuts.

       Torque: 41 lb.ft (55 Nm)

    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

18. Remove the cowl grille panel. Refer to: Cowl Panel Grille .
19. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
20. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
