Oil Cooler: Removal

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

    GT

  2. Remove the fasteners and the underbody shield.
    GFD716775Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the subframe bracket and underbody shield assembly.
    GFD715899Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the engine oil filter.
    GFD716611Courtesy of FORD MOTOR COMPANY
    • Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers

    • Disconnect the coolant hoses.

    GFD716776Courtesy of FORD MOTOR COMPANY
  6. Remove the retainer and the oil cooler.
    GFD716777Courtesy of FORD MOTOR COMPANY

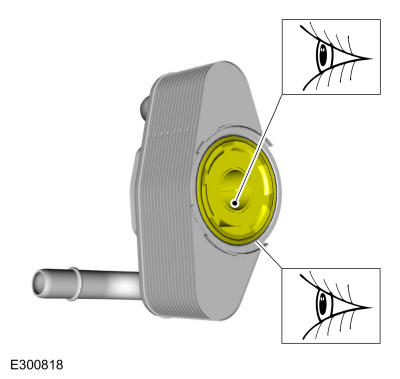

  7. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION

    • Inspect the oil cooler.

    • Inspect the seal. If the seal is damaged discard the oil cooler.

    GFD716778Courtesy of FORD MOTOR COMPANY

    Mach 1

  8. Remove the LH front wheel and tire. Refer to: Wheel and Tire .
  9. Remove the pin type retainers.
    GFD716779Courtesy of FORD MOTOR COMPANY
  10. Remove the pin type retainers.
    GFD716723Courtesy of FORD MOTOR COMPANY
    1. Remove the bolts.
    2. Remove the pin type retainer and the underbody shield.
    GFD716780Courtesy of FORD MOTOR COMPANY
  12. Remove the pin type retainers and position the fender shield aside.
    GFD716781Courtesy of FORD MOTOR COMPANY
    1. Remove the fasteners and the bracket.
    2. Remove the pin type retainer and the air duct.
    GFD716782Courtesy of FORD MOTOR COMPANY
  14. Remove the retaining clips and disconnect the oil cooler tubes.
    GFD716783Courtesy of FORD MOTOR COMPANY
  15. Remove the fasteners and the oil cooler.
    GFD716784Courtesy of FORD MOTOR COMPANY
  16. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION

    Inspect the oil cooler.

GFD716785Courtesy of FORD MOTOR COMPANY
