Oil Cooler: Installation

Mach 1

1. Install the oil cooler and the fasteners.

   Torque: 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

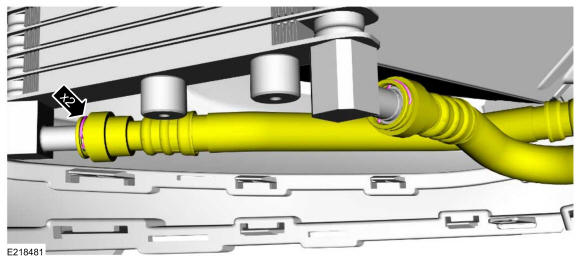

2. Connect the oil cooler tubes and install the retaining clips.

   Courtesy of FORD MOTOR COMPANY

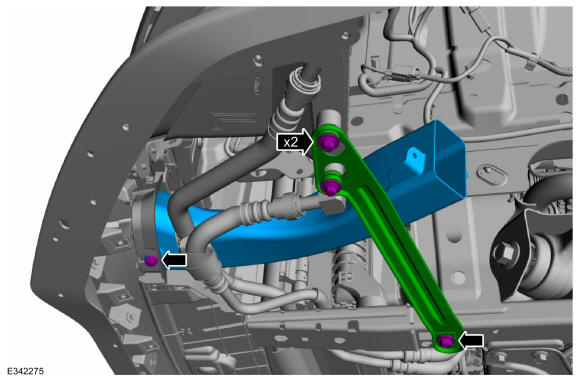

3. 1. Install the air duct and the pin type retainer.
   2. Install the bracket and the fasteners.

      Torque: Bracket-to-cooler bolts: 97 lb.in (11 Nm) Bracket-to-frame bolt: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Position the shield and install the retainers.

   Courtesy of FORD MOTOR COMPANY

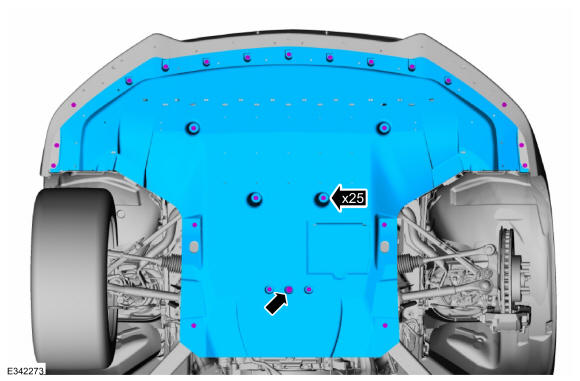

5. 1. Position the underbody shield and install the pin type retainer.
   2. Install the bolts.

   Courtesy of FORD MOTOR COMPANY

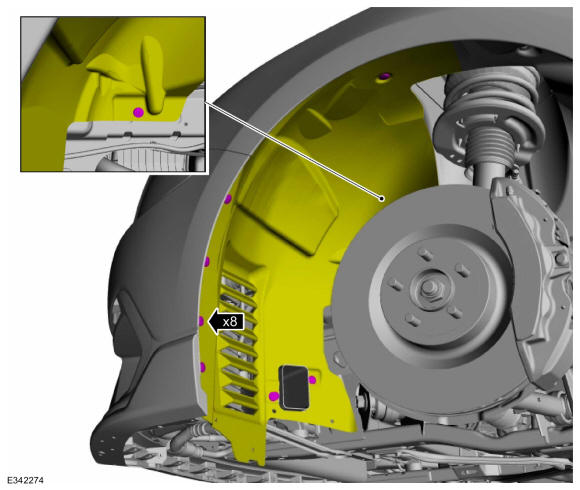

6. Install the pin type retainers.

   Courtesy of FORD MOTOR COMPANY

7. Install the pin type retainers.

   Courtesy of FORD MOTOR COMPANY

8. Install the LH front wheel and tire. Refer to: Wheel and Tire .
9. Inspect and adjust the engine oil level. Refer to: Specifications .

   GT

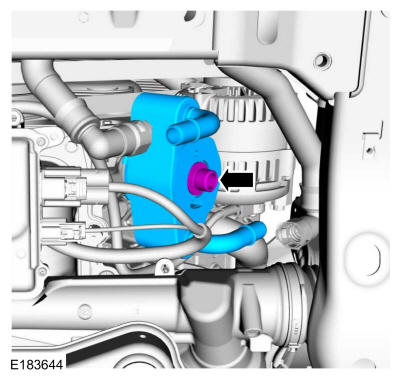

10. Install the oil cooler and the retainer.

    Torque: 43 lb.ft (58 Nm)

    Courtesy of FORD MOTOR COMPANY

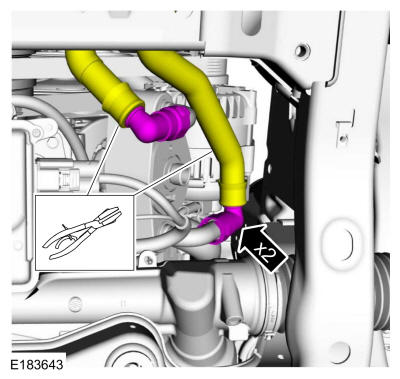

11. • Connect the coolant hoses.
    • Remove the hose locking pliers. Use the General Equipment: Locking Pliers

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Do not lubricate the O-ring seal.

    Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

13. Install the subframe bracket and underbody shield assembly and the bolts.

    Torque: Bracket bolts: 46 lb.ft (63 Nm) Underbody shield bolt: 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Install the underbody shield and the fasteners.

    Courtesy of FORD MOTOR COMPANY

15. Inspect and adjust the coolant level in the degas bottle Refer to: Specifications .
16. Inspect and adjust the engine oil level. Refer to: Specifications .
