Engine Mount RH: Installation

All vehicles

1. Install the engine mount and bolts.

   Torque: 52 lb.ft (70 Nm)

   Courtesy of FORD MOTOR COMPANY

   Mach 1

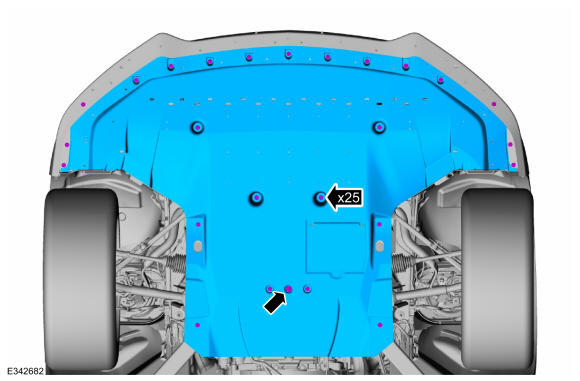

2. 1. Position the underbody shield and install the pin type retainer.
   2. Install the bolts.

   Courtesy of FORD MOTOR COMPANY

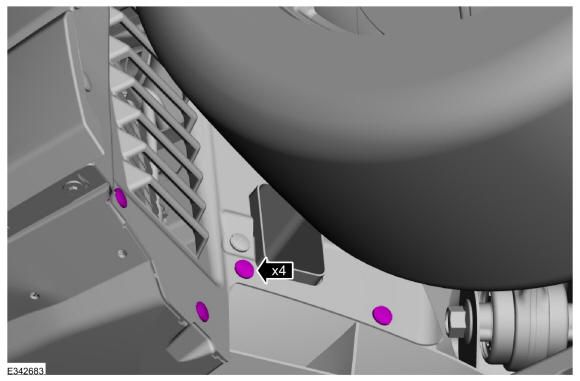

3. Install the pin type retainers.

   Courtesy of FORD MOTOR COMPANY

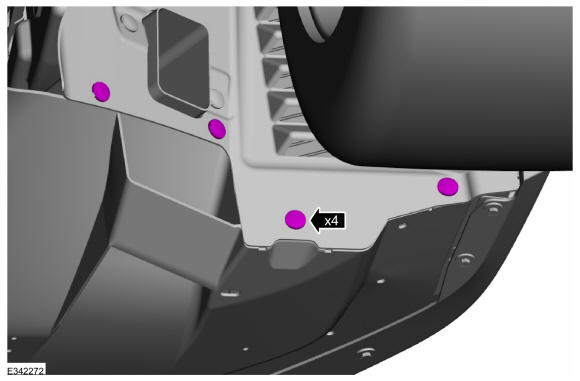

4. Install the pin type retainers.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

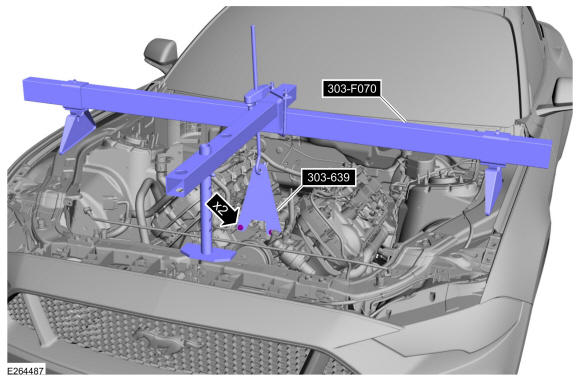

5. • Using the special tools, lower the engine onto the engine mounts.
   • Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.

   Courtesy of FORD MOTOR COMPANY

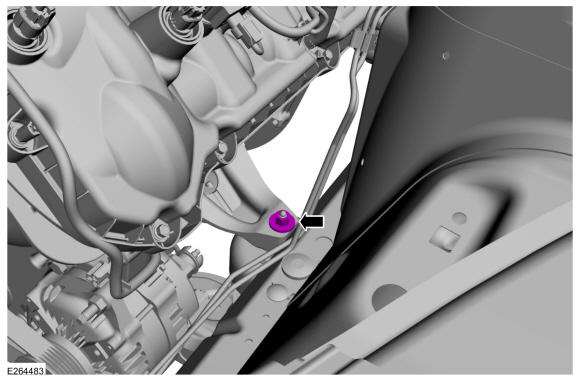

6. Install the RH engine mount nut.

   Torque: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Install the LH engine mount nut.

   Torque: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the radiator top shield and the retainers.

   Courtesy of FORD MOTOR COMPANY

9. Install the following items:
   1. Intake manifold. Refer to: Intake Manifold .
   2. Refer to: Air Cleaner .

10. Connect the battery positive and ground cables. Refer to: Battery Disconnect and Connect .
11. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
12. Road test the vehicle.
