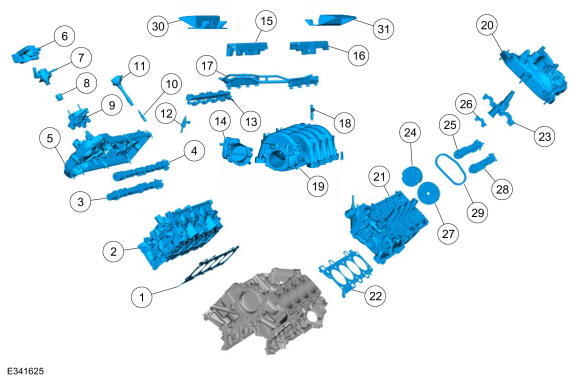

| 1 |
6051 |
RH cylinder head gasket |
| 2 |
6049 |
RH cylinder head |
| 3 |
6A272 |
RH exhaust camshaft |
| 4 |
6A270 |
RH intake camshaft |
| 5 |
6582 |
RH valve cover |
| 6 |
9U550 |
Insulator |
| 7 |
9D376 |
High pressure fule pump |
| 8 |
9C587 |
Tappet |
| 9 |
-- |
Camshaft bearing cap (part of 6049) |
| 10 |
12405 |
Spark plug (8 required) |
| 11 |
12029 |
Ignition coil on plug (8 required) |
| 12 |
9G929 |
Fuel injector (Direct injection) (8 required) |
| 13 |
9F797 |
Fuel rail (Direct injection) (2 required) |
| 14 |
9F991 |
Throttle body |
| 15 |
6P013 |
RH fuel injector insulator shield |
| 16 |
6P013 |
LH fuel injector insulator shield |
| 17 |
9F792 |
Fuel rail (PFI) |
| 18 |
9F593 |
Fuel injector (PFI) (8 required) |
| 19 |
9424 |
Intake manifold |
| 20 |
6582 |
LH valve cover |
| 21 |
6049 |
LH cylinder head |
| 22 |
6051 |
LH cylinder head gasket |
| 23 |
-- |
Camshaft bearing cap (part of 6049) (2 required) |
| 24 |
6256 |
Intake camshaft Variable Camshaft Timing (VCT) (2 required) |
| 25 |
6A271 |
LH intake camshaft |
| 26 |
-- |
Camshaft bearing cap (part of 6049) (14 required) |
| 27 |
6C525 |
Exhaust camshaft Variable Camshaft Timing (VCT) (2 required) |
| 28 |
6A273 |
LH exhaust camshaft |
| 29 |
6268 |
Secondary timing chain (2 required) |
| 30 |
18D690 |
Heater hose support |
| 31 |
18D691 |
Heater hose support |
