Removal And Installation: Radiator: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

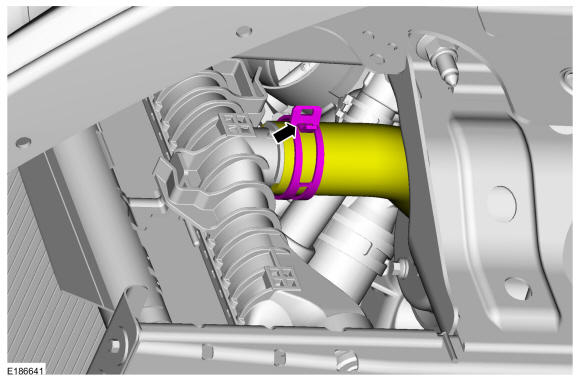

  2. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD717577Courtesy of FORD MOTOR COMPANY
  3. Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

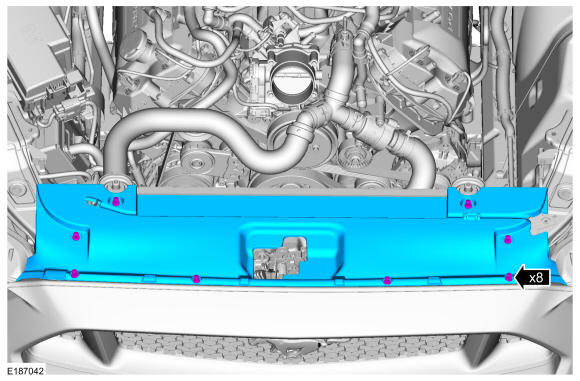

  4. Remove the retainers and the radiator sight shield.
    GFD717578Courtesy of FORD MOTOR COMPANY

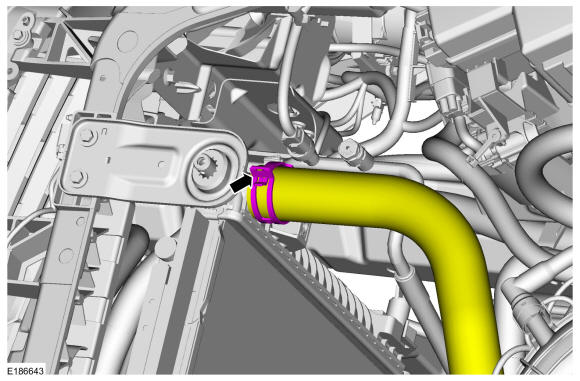

  5. Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD717579Courtesy of FORD MOTOR COMPANY

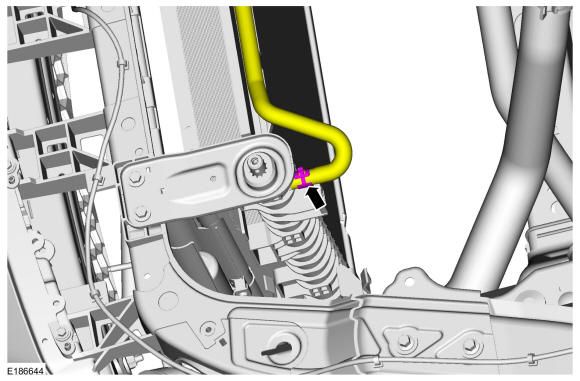

  6. Release the clamp and disconnect the upper coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD717580Courtesy of FORD MOTOR COMPANY

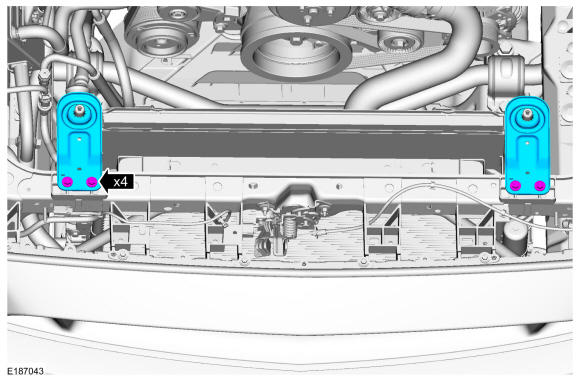

  7. Remove the bolts and the upper radiator support brackets.

    Torque: 97 lb.in (11 Nm)

    GFD717581Courtesy of FORD MOTOR COMPANY

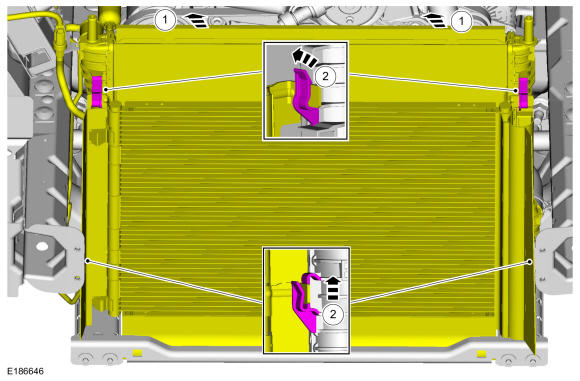

  8. NOTE: Front bumper removed for clarity.

    1. Position the radiator towards the engine.
    2. Release the upper tabs and position the A/C condenser aside.

    GFD717582Courtesy of FORD MOTOR COMPANY

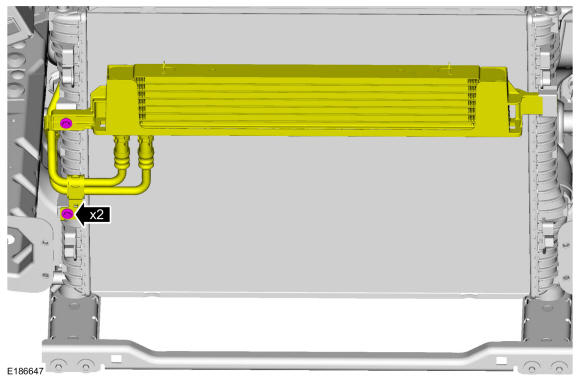

  9. NOTE: If equipped.
    NOTE: Front bumper removed for clarity.

    Remove the bolts and position aside the transmission fluid cooler.

    Torque: 53 lb.in (6 Nm)

    GFD717583Courtesy of FORD MOTOR COMPANY

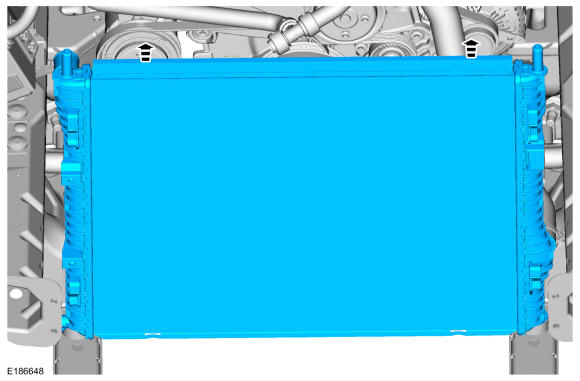

  10. NOTE: Front bumper removed for clarity.

    Remove the radiator.

GFD717584Courtesy of FORD MOTOR COMPANY
