Accessory Drive - Component Location

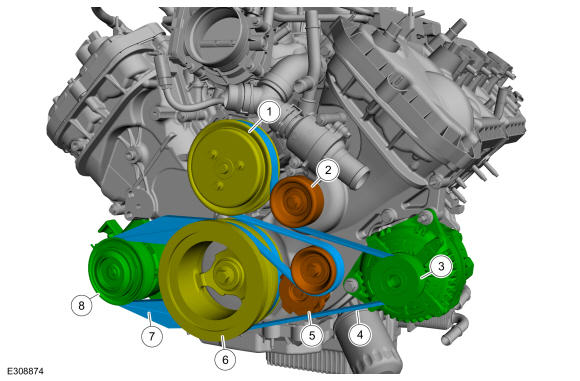

Fig 1: Accessory Drive Belt Routing Diagram

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Coolant pump pulley
2	Drive belt idler pulley
3	Generator pulley
4	Accessory drive belt
5	Accessory drive belt tensioner
6	Crankshaft belt pulley
7	A/C compressor belt
8	A/C compressor pulley
