Parking Brake Shoes - Vehicles With: SVT Performance Package: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc .

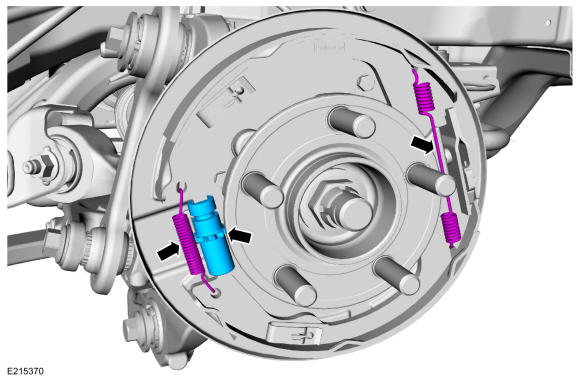

  2. Remove the return springs and the adjuster.
    GFD715807Courtesy of FORD MOTOR COMPANY

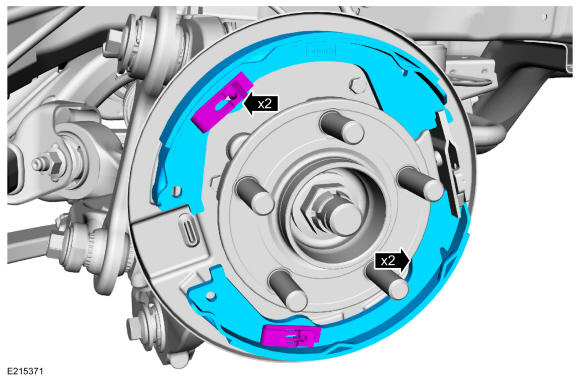

  3. Remove the hold down springs, pins and the parking brake shoes.
GFD715808Courtesy of FORD MOTOR COMPANY
