Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Activation

1. Remove the brake disc. Refer to: Brake Disc - GT500 .

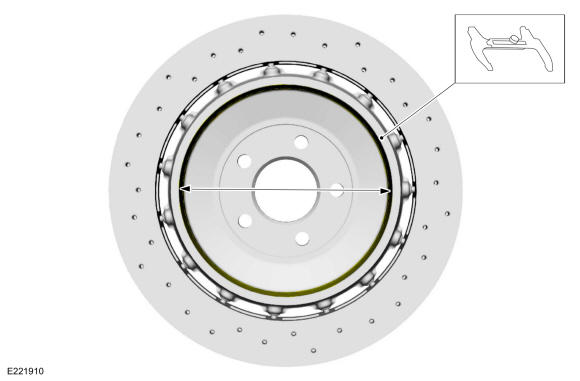

2. Measure ID of the drum portion of the brake disc. Record the measurement. Use the General Equipment: Caliper Gauge

   Courtesy of FORD MOTOR COMPANY

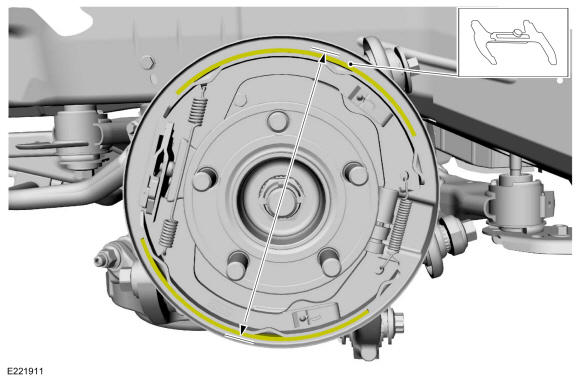

3. Measure the widest diameter of the parking brake shoes. Use the General Equipment: Caliper Gauge

   Courtesy of FORD MOTOR COMPANY

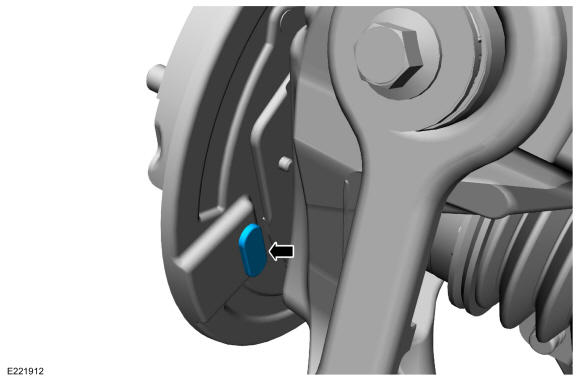

4. Remove the backing plate plug.

   Courtesy of FORD MOTOR COMPANY

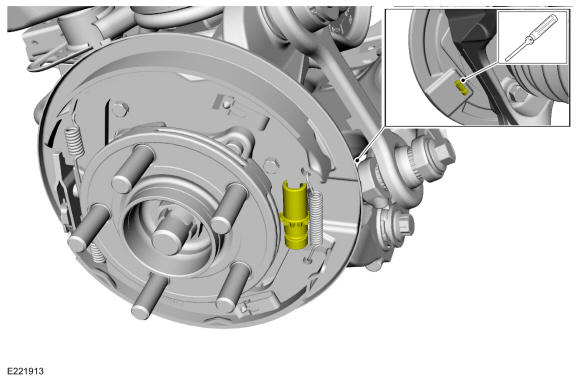

5. Adjust the parking brake shoe clearance by rotating the adjuster until the parking brake shoes measure 0.59 mm (0.023 in) less than the recorded ID of the drum portion of the brake disc.

   Courtesy of FORD MOTOR COMPANY

6. Install the backing plate plug.

   Courtesy of FORD MOTOR COMPANY

7. Install the brake disc. Refer to: Brake Disc - GT500 .
