Brake Master Cylinder - GT500: Removal
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery.

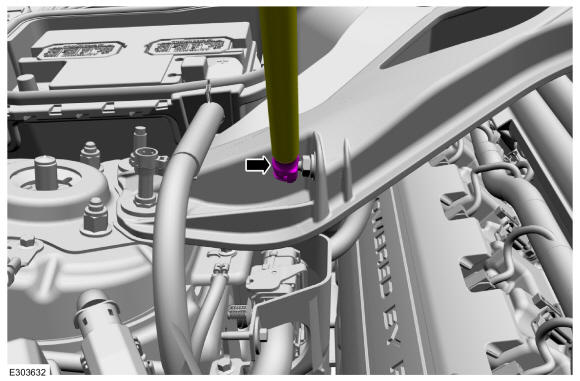

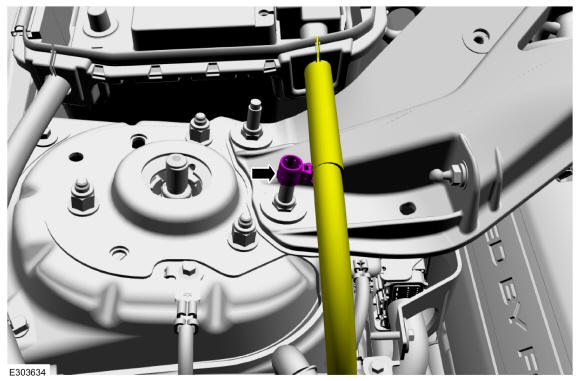

- Safely support the hood, then disconnect the lower hood support.
- Detach the wiring harness retainer.

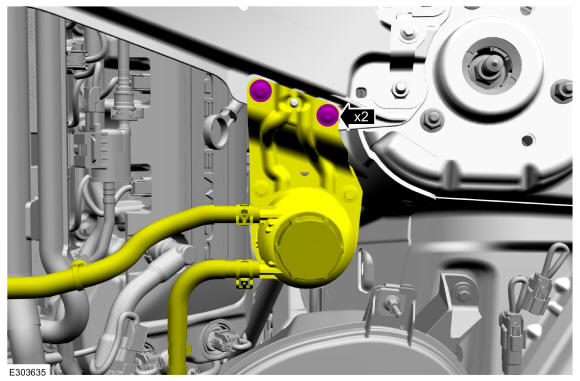

- Remove the bolts, then move the coolant reservoir out of the way.
Torque: 97 lb.in (11 Nm)

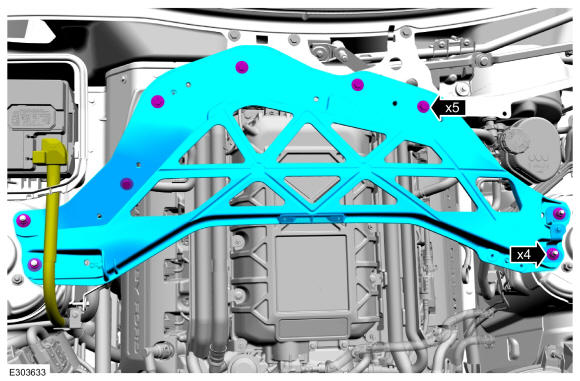

- Remove the nuts, and the bolts, then remove the strut tower cross brace.
Torque: Tighten the nuts to: 41 lb.ft (55 Nm) Tighten the bolts to: 26 lb.ft (35 Nm)
-
- Disconnect the brake fluid level sensor electrical connector.
- Detach the wiring harness retainer from the brake fluid reservoir.
-
NOTE: Make sure that all openings are sealed.

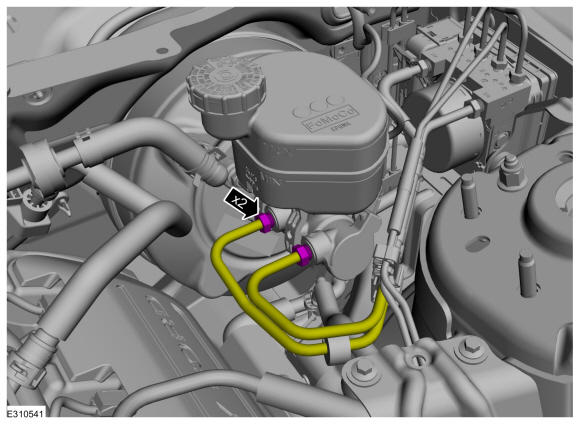

Disconnect the 2 brake tube fittings.
Torque: 30 lb.ft (40 Nm)

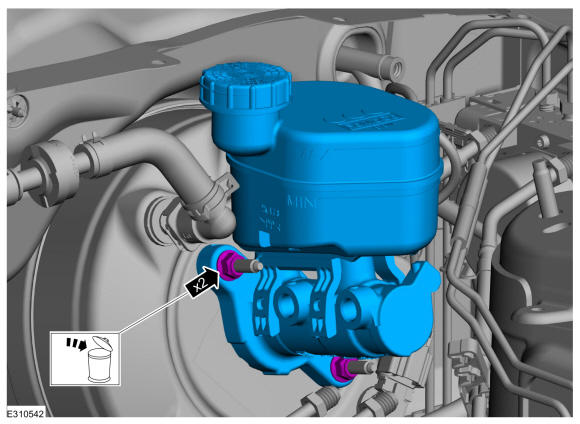

- Remove the 2 nuts and the brake master cylinder. Discard the nuts.
Torque: 17 lb.ft (23 Nm)
