Brake Master Cylinder - 5.0L 32V Ti-VCT: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: 5.0L 32V Ti-VCT engine shown below, 5.2L 32V Ti-VCT similar.

All vehicles

Remove the cowl panel grill. Refer to: Cowl Panel Grille .
Disconnect the battery cables. Refer to: Battery Disconnect and Connect .

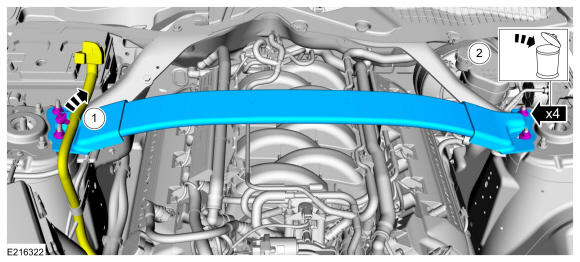

1. Detach the battery cable retainer.
2. Remove the nuts and the cross brace. Discard the nuts.
  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY

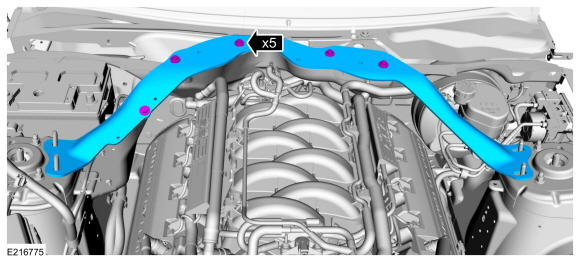

Remove the bolts and the cowl extension.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

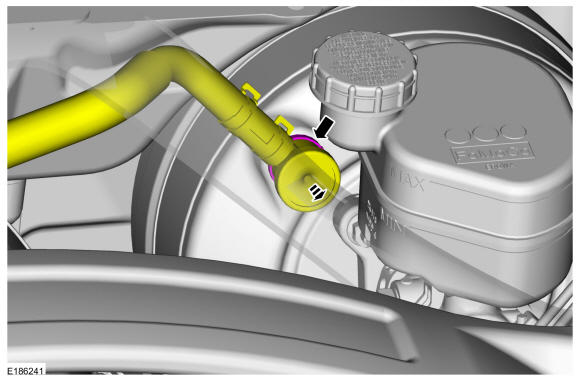

Detach the vacuum check valve from the booster and position aside.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with manual transmission
Remove the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY
Using a suitable suction device, siphon the brake fluid from the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY
Disconnect the clutch master cylinder tube.

Courtesy of FORD MOTOR COMPANY
Detach the clutch master cylinder tube bracket from the master cylinder studs.

Courtesy of FORD MOTOR COMPANY

All vehicles

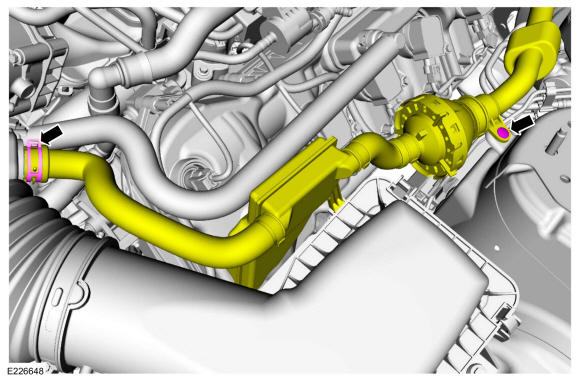

Release the clamp, remove the pin type retainer and position the noise generator aside.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the brake fluid level sensor electrical connector.
2. Detach the wiring harness retainer from the brake fluid reservoir.
Courtesy of FORD MOTOR COMPANY
Disconnect the 2 brake tube fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Unclip the brake tubes.

Courtesy of FORD MOTOR COMPANY
Remove and discard the 2 master cylinder nuts. Remove the master cylinder.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
