Parking Aid - Component Location

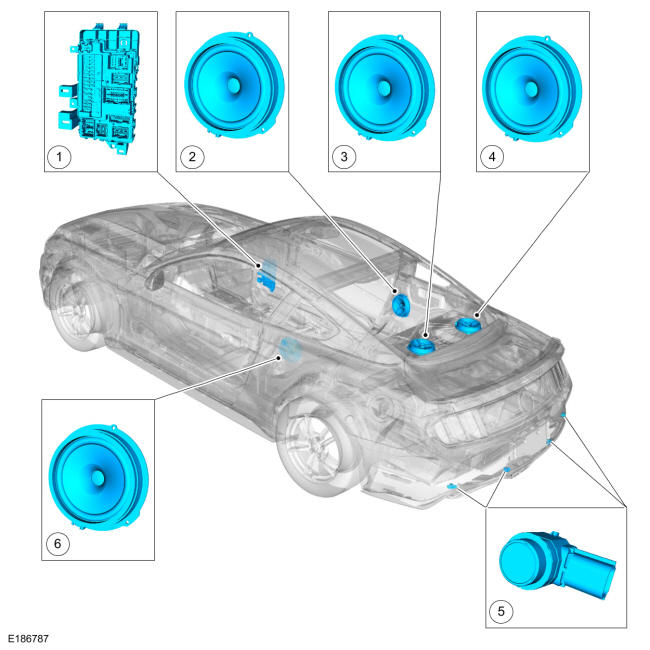

Component Location, Parking Aid - Audible

GFD720154Courtesy of FORD MOTOR COMPANY
Item Description
1 PAM (integral to the BCM)
2 RH rear convertible speaker (part of audio system)
3 LH rear sedan speaker (part of audio system)
4 RH rear sedan speaker (part of audio system)
5 Rear parking aid sensors
6 LH rear convertible speaker (part of audio system)
