Section 7 (Engine - 2.3L ECOBOOST (231KW/314PS)/2.3L ECOBOOST (257KW/350PS) - Mi4): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E 2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine
Magnetic Socket
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
3. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
4. If equipped with strut tower cross brace, disconnect the positive battery cable. Refer to: Battery Disconnect and Connect .
5. If equipped with strut tower cross brace, detach the wiring harness retainer and position the positive battery cable aside.

   Courtesy of FORD MOTOR COMPANY

6. • If equipped, remove the nuts and the strut tower cross brace.
   • Discard the nuts.

   Courtesy of FORD MOTOR COMPANY

7. Remove the nuts and the engine appearance cover.

   Courtesy of FORD MOTOR COMPANY

8. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
9. Remove the screws, bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

10. Remove the pin-type retainers and the hood insulation.

    Courtesy of FORD MOTOR COMPANY

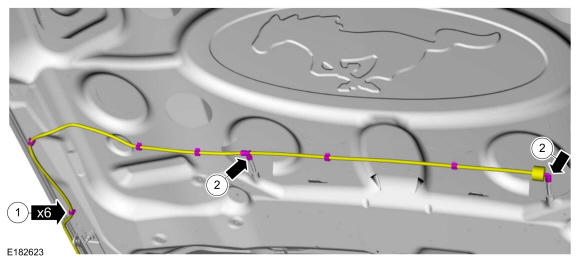

11. 1. Detach the windshield washer hose retainers.
    2. Disconnect the windshield washer hose couplings. Refer to: Washer Hose Coupling .

    Courtesy of FORD MOTOR COMPANY

12. NOTE: RH side shown, LH similar.

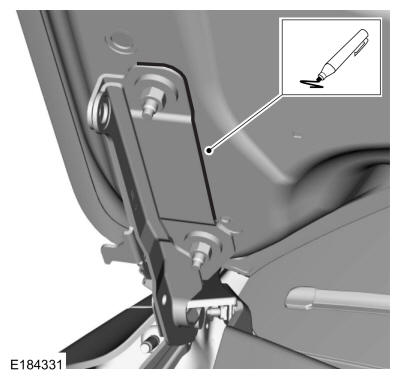

    Index-mark the hood hinge location to aid in hood installation.

    Courtesy of FORD MOTOR COMPANY

13. Remove the nuts and the hood.

    Courtesy of FORD MOTOR COMPANY

14. Remove the degas bottle. Refer to: Degas Bottle .
15. Remove the upper radiator hose from the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

16. Remove the following items:
    1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    2. Remove the air cleaner. Refer to: Air Cleaner .
    3. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

17. Disconnect the CAC valve electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

18. Detach and disconnect the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

19. Disconnect the upper PCM electrical connector and the retainer.

    Courtesy of FORD MOTOR COMPANY

20. Loosen the clamp and position aside the CAC inlet tube.

    Courtesy of FORD MOTOR COMPANY

21. Loosen the clamp and position aside the CAC outlet tube.

    Courtesy of FORD MOTOR COMPANY

22. Remove the lower radiator hose from the radiator. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

23. Remove the retainer and the brake vacuum pump insulator cover.

    Courtesy of FORD MOTOR COMPANY

24. Disconnect the vacuum hose from the brake vacuum pump.

    Courtesy of FORD MOTOR COMPANY

25. Remove the nut and the engine ground strap from the cowl.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: It is necessary to move fuel tube retainer for access for the use of fuel disconnect tool.

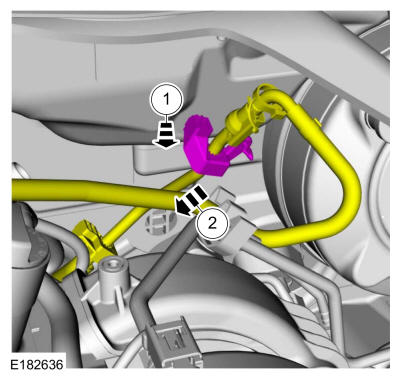

    1. Detach the fuel supply tube retainer from the cowl.
    2. Slide the retainer down the fuel supply tube.

    Courtesy of FORD MOTOR COMPANY

27. Remove the fuel supply tube spring lock coupling retainer.

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the fuel supply tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

29. • Disconnect the vacuum tube quick release coupling from the EVAP canister purge valve.
    • Detach the vacuum tube from the intake manifold retainer.

    Courtesy of FORD MOTOR COMPANY

30. Disconnect the coolant hoses from the heater core.

    Courtesy of FORD MOTOR COMPANY

31. Detach and disconnect the HO2S electrical connector.

    Courtesy of FORD MOTOR COMPANY

32. Disconnect the A/C compressor electrical connectors and the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

33. Remove the bolts, position and support the A/C compressor aside.

    Courtesy of FORD MOTOR COMPANY

34. Remove the starter motor. Refer to: Starter Motor .
35. Remove the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

36. Detach the wire harness retainer from the LH engine mount bracket stud bolt.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: The engine ground wire may be located in one of the following locations.
    1. If equipped, remove the nut and ground wire from the LH engine mount bracket stud bolt.
    2. If equipped, remove the bolt and ground wire from the LH side of the engine block.

    Courtesy of FORD MOTOR COMPANY

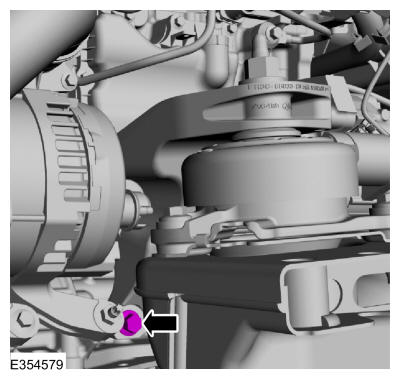

38. Remove the rear bolt, stud bolt for the LH engine mount bracket.

    Courtesy of FORD MOTOR COMPANY

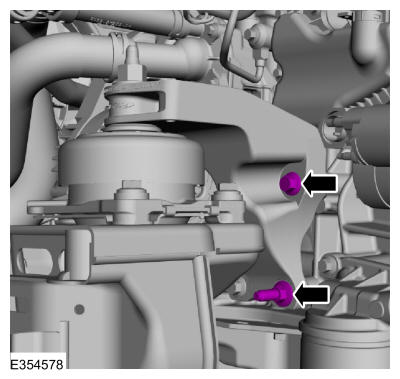

39. Remove the front lower bolt for the LH engine mount bracket.

    Courtesy of FORD MOTOR COMPANY

40. • Remove the bolt and the wire harness retainer from the generator.
    • Disconnect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

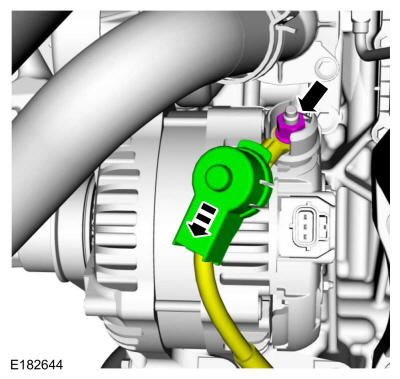

41. • Position the protective cover aside.
    • Remove the nut and the B+ cable.

    Courtesy of FORD MOTOR COMPANY

42. Drain the engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque: 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

43. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

44. Remove the retainers and heat shield.

    Courtesy of FORD MOTOR COMPANY

45. Remove the retainers and position aside the NVH cover.

    Courtesy of FORD MOTOR COMPANY

46. Detach the transmission vent hose and retainer and remove.

    Courtesy of FORD MOTOR COMPANY

47. Detach the transmission wiring harness retainer from the coolant tube bracket.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

48. NOTE: Automatic transmission shown, manual transmission similar.

    Disconnect the catalyst monitor sensor (CMS) sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

49. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the bolts for the catalytic converter bracket.

    Courtesy of FORD MOTOR COMPANY

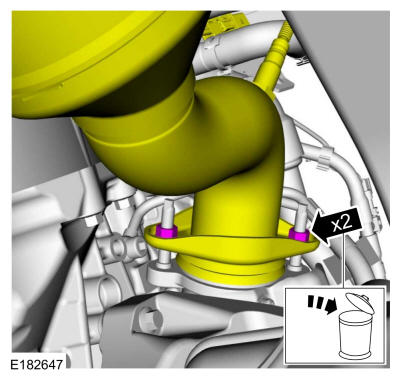

50. NOTE: Make sure that the mating faces are clean and free of foreign material.
    • Remove the nuts and position the catalytic converter aside.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Make sure that the mating faces are clean and free of foreign material.

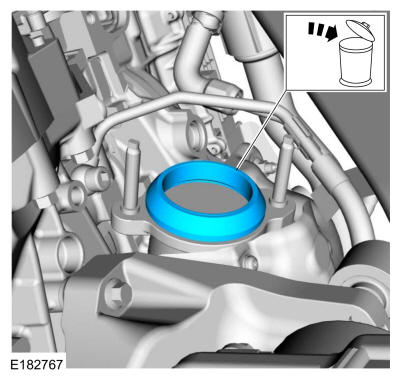

    Remove and discard the gasket.

    Courtesy of FORD MOTOR COMPANY

52. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the nut and position the coolant tube bracket aside.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the transmission bolts.

    Courtesy of FORD MOTOR COMPANY

54. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the transmission bolts.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the transmission bolts.

    Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

56. • Disconnect the transmission electrical connector.
    • Detach the retainers and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

57. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Index mark one stud and the flexplate for assembly reference.

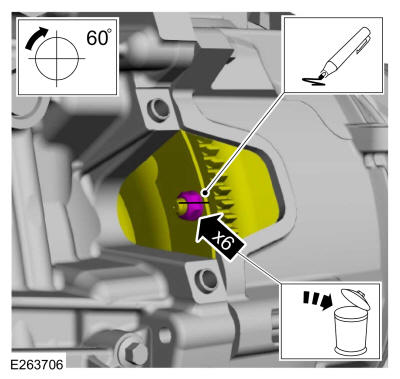

    Remove and discard the torque convertor nuts. Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

58. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.

    Courtesy of FORD MOTOR COMPANY

59. Remove the transmission cooling tube bracket nut and position aside.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

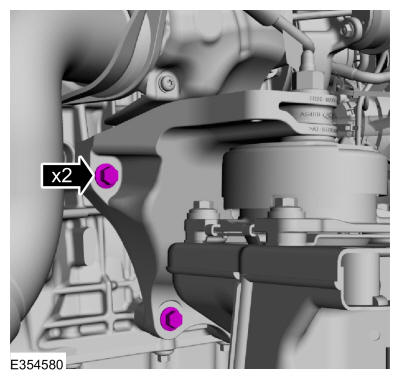

60. Remove the rear bolts for the RH engine mount bracket.

    Courtesy of FORD MOTOR COMPANY

61. Remove the front lower stud bolt for the RH engine mount bracket.

    Courtesy of FORD MOTOR COMPANY

62. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

63. Install the special tool on the LH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

64. NOTE: Coolant tube removed for clarity.

    Install the special tool on the RH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

65. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

    Courtesy of FORD MOTOR COMPANY

66. Install a jack and wooden block under the transmission bell housing to support the transmission. Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack

    Courtesy of FORD MOTOR COMPANY

67. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolt.

    Courtesy of FORD MOTOR COMPANY

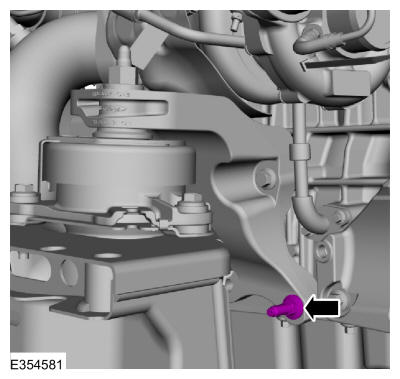

68. Remove the RH and LH engine mount bracket nuts.

    Courtesy of FORD MOTOR COMPANY

69. Remove the front upper bolt and the LH engine mount bracket.

    Courtesy of FORD MOTOR COMPANY

70. Remove the front upper bolt and the RH engine mount bracket.

    Courtesy of FORD MOTOR COMPANY

71. Using the special tool, remove the engine. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
