Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. If equipped with strut tower cross brace, disconnect the negative and positive battery cables. Refer to: Battery Disconnect and Connect .
  2. If equipped with strut tower cross brace, detach the wiring harness retainer and position the positive battery cable aside.
    GFD716170Courtesy of FORD MOTOR COMPANY
    • If equipped, remove the nuts and the strut tower cross brace.

    • Discard the nuts.

    GFD716171Courtesy of FORD MOTOR COMPANY
  4. Remove the nuts and the engine appearance cover.
    GFD715871Courtesy of FORD MOTOR COMPANY
  5. Detach the fuel supply tube retainer from the valve cover stud bolt.
    GFD716282Courtesy of FORD MOTOR COMPANY
  6. Remove the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
  7. Remove the oil level indicator.
    GFD716283Courtesy of FORD MOTOR COMPANY
  8. Disconnect the crankcase vent tube quick release connector from the valve cover.
    GFD716284Courtesy of FORD MOTOR COMPANY
    • Disconnect the VCT oil control solenoid electrical connectors.

    • Disconnect the CMP sensor electrical connectors.

    • Detach the wiring harness retainers.

    GFD716285Courtesy of FORD MOTOR COMPANY
  10. Remove the bolt and the exhaust CMP sensor.
    GFD716286Courtesy of FORD MOTOR COMPANY
  11. Loosen the fasteners and remove the valve cover.
    GFD716287Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the valve cover gasket.
    GFD716288Courtesy of FORD MOTOR COMPANY
    1. NOTE: The VCT oil control solenoid seals should only be replaced if they are damaged.

      Inspect the VCT oil control solenoid seals for damaged.

    2. If damaged, using the special tools, remove the VCT oil control solenoid seals and discard. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD716289Courtesy of FORD MOTOR COMPANY
  14. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD716290Courtesy of FORD MOTOR COMPANY
  15. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

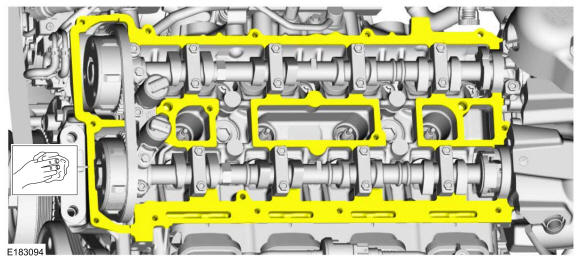

    Make sure that the mating faces are clean and free of foreign material.

GFD716291Courtesy of FORD MOTOR COMPANY
