Oil Pressure Switch: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

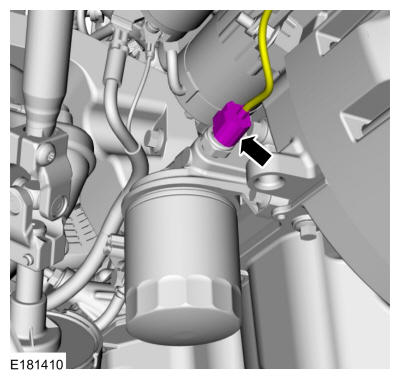

Disconnect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY
- H.O. equipped engines have an
  Oil Pressure Sensor and a different torque. Refer to: Engine Oil Pressure (EOP) Sensor .

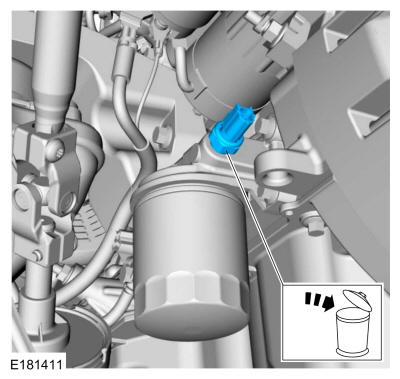

- Remove and discard the oil pressure switch.
  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
