Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Make sure to minimize damage to sealer foam and avoid pulling apart dash seal brackets from retainer pins. Excessive damage may allow engine noise, fumes, air or water to enter the passenger compartment.

    1. Remove the steering column dash seal nuts.
    2. Loosen the dash seal.
    3. Hand start the dash seal nuts.

    GFD715894Courtesy of FORD MOTOR COMPANY
  3. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD715211Courtesy of FORD MOTOR COMPANY
  4. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
  5. If equipped with strut tower cross brace, disconnect the positive battery cable. Refer to: Battery Disconnect and Connect .
  6. If equipped with strut tower cross brace, detach the wiring harness retainer and position the positive battery cable aside.
    GFD716170Courtesy of FORD MOTOR COMPANY
    • If equipped, remove the nuts and the strut tower cross brace.

    • Discard the nuts.

    GFD716171Courtesy of FORD MOTOR COMPANY
  8. Remove the nuts and the engine appearance cover.
    GFD715871Courtesy of FORD MOTOR COMPANY
  9. Install the special tool on the LH side of the cylinder head. Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD716172Courtesy of FORD MOTOR COMPANY
  10. NOTE: Coolant tube removed for clarity.

    Install the special tool on the RH side of the cylinder head. Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    GFD716173Courtesy of FORD MOTOR COMPANY
  11. Remove the retainers and the radiator top shield.
    GFD716174Courtesy of FORD MOTOR COMPANY
  12. Install retaining pins to support cooling module.
    GFD716213Courtesy of FORD MOTOR COMPANY
  13. Remove the RH and LH engine mount bracket nuts.
    GFD716175Courtesy of FORD MOTOR COMPANY

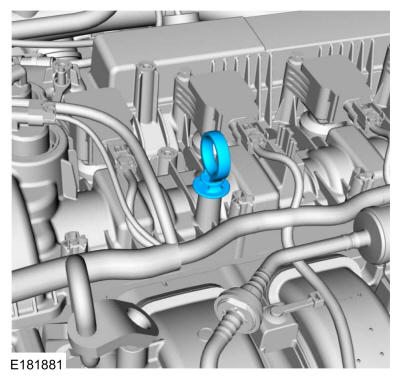

  14. Remove the oil level indicator.
    GFD716214Courtesy of FORD MOTOR COMPANY
  15. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, position the legs on the body structure near the suspension strut tower. Failure to follow these instructions may result in body damage.

    Install the special tool to support the engine. Install Special Service Tool: 303-F072 Support Bar, Engine.

    GFD716177Courtesy of FORD MOTOR COMPANY
  16. Remove the front wheels and tires. Refer to: Wheel and Tire .
  17. Remove the screws, bolts and the underbody shield.
    GFD716178Courtesy of FORD MOTOR COMPANY

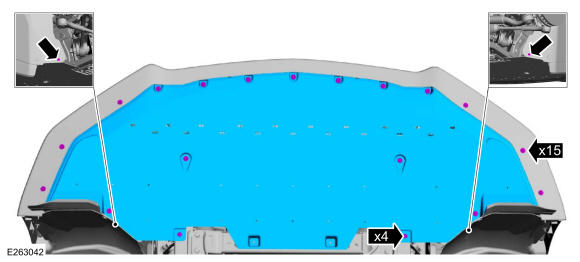

  18. Remove the pin-type retainers, bolts and the underbody shield.
    GFD716215Courtesy of FORD MOTOR COMPANY
  19. Drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque: 20 lb.ft (27 Nm)

    GFD716061Courtesy of FORD MOTOR COMPANY
  20. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD716062Courtesy of FORD MOTOR COMPANY
  21. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    Detach the steering column lower shaft from the lower coupling.

    1. Remove and discard the steering column shaft bolt.
    2. Pull apart the steering column shaft from the coupling.
    3. Secure the lower shaft to the frame rail to avoid damaging it during subframe removal.

    GFD715900Courtesy of FORD MOTOR COMPANY
  22. Detach the EPAS wiring harness pin-type retainers.
    GFD716216Courtesy of FORD MOTOR COMPANY
  23. Detach the brake line retainers from the subframe.
    GFD716217Courtesy of FORD MOTOR COMPANY
  24. Remove the bolts from the support bar on the front of the subframe.
    GFD716218Courtesy of FORD MOTOR COMPANY
  25. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the nut and position the coolant tube bracket aside.

    GFD716219Courtesy of FORD MOTOR COMPANY
  26. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine fasteners more than 5 mm (0.19 in).
    NOTE: Automatic transmission shown, manual transmission similar.

    Loosen the bolts 5 mm (0.19 in).

    GFD716220Courtesy of FORD MOTOR COMPANY
  27. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine fasteners more than 5 mm (0.19 in).
    NOTE: Automatic transmission shown, manual transmission similar.

    Loosen the bolts 5 mm (0.19 in).

    GFD716221Courtesy of FORD MOTOR COMPANY
  28. NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission fasteners more than 5 mm (0.19 in).
    NOTE: Automatic transmission shown, manual transmission similar.

    Loosen bolts 5 mm (0.19 in).

    GFD716222Courtesy of FORD MOTOR COMPANY

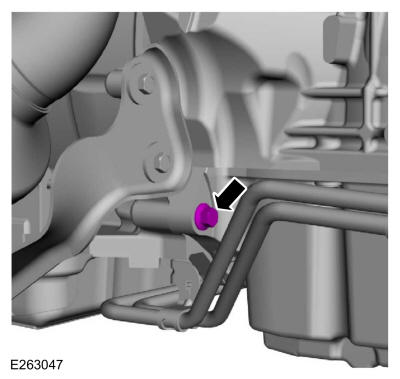

  29. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolt.

    GFD716223Courtesy of FORD MOTOR COMPANY
  30. If equipped, remove the RH and LH front height sensors. Refer to: Front Suspension Height Sensor .

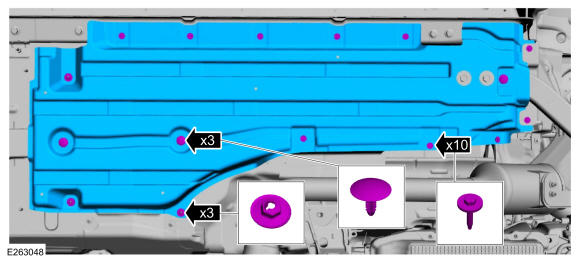

  31. Remove the fasteners and the RH deflector shield.
    GFD716224Courtesy of FORD MOTOR COMPANY
  32. Using an adjustable stand, support the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD716225Courtesy of FORD MOTOR COMPANY
  33. Mark the position of the front subframe for reference during installation.
    GFD716226Courtesy of FORD MOTOR COMPANY
  34. Mark the position of the rear subframe for reference during installation.
    GFD716227Courtesy of FORD MOTOR COMPANY
  35. Remove and discard the rear subframe bolts.
    GFD716228Courtesy of FORD MOTOR COMPANY
  36. Remove and discard the front subframe nuts.
    GFD716229Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

  37. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.
    GFD716191Courtesy of FORD MOTOR COMPANY
  38. Remove the transmission cooling tube bracket nut and position aside.
    GFD716230Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  39. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolts.

    GFD716231Courtesy of FORD MOTOR COMPANY
  40. Using an adjustable stand, lower the subframe 102 mm (4.0 in). Use the General Equipment: Vehicle/Axle Stands
    GFD716232Courtesy of FORD MOTOR COMPANY
  41. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the bolts for the catalytic converter bracket.

    GFD716233Courtesy of FORD MOTOR COMPANY

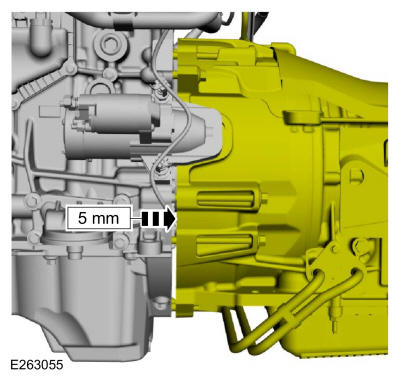

  42. Separate the engine from the transmission 5 mm (0.19 in).
    GFD716234Courtesy of FORD MOTOR COMPANY
  43. Remove the engine front cover bolts.
    GFD716235Courtesy of FORD MOTOR COMPANY
  44. Remove the bolts and the oil pan.
    GFD716236Courtesy of FORD MOTOR COMPANY
  45. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD716237Courtesy of FORD MOTOR COMPANY
  46. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD716238Courtesy of FORD MOTOR COMPANY
  47. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD716239Courtesy of FORD MOTOR COMPANY
