Oil Pan: Installation

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

1. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

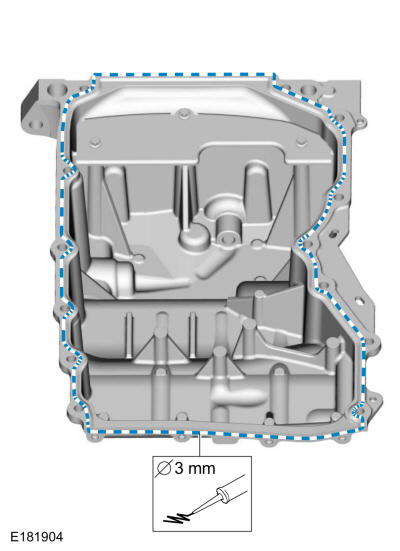

   Apply a 3 mm (0.19 in) bead of silicone sealant.

   Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

2. Install the oil pan and the bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

   Install the engine front cover bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

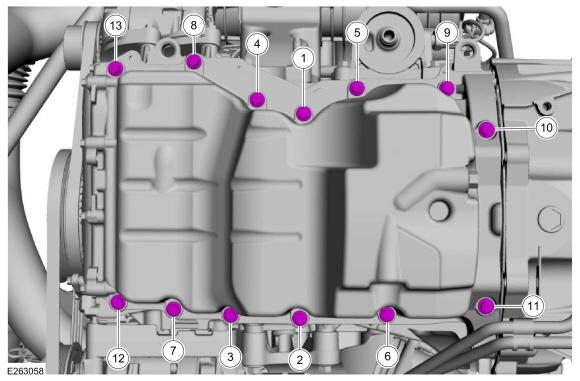

4. Tighten the oil pan bolts in sequence shown.

   Torque: 18 lb.ft (25 Nm)

   Fig 1: Oil Pan Bolts Tightening Sequence

   Courtesy of FORD MOTOR COMPANY

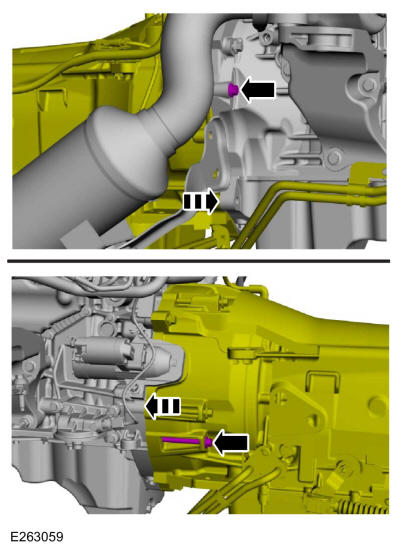

5. NOTE: Automatic transmission shown, manual transmission similar.

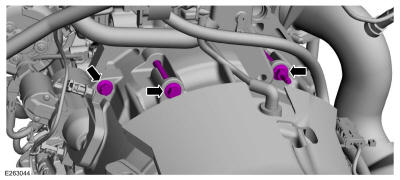

   Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transmission and engine together.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Automatic transmission shown, manual transmission similar.

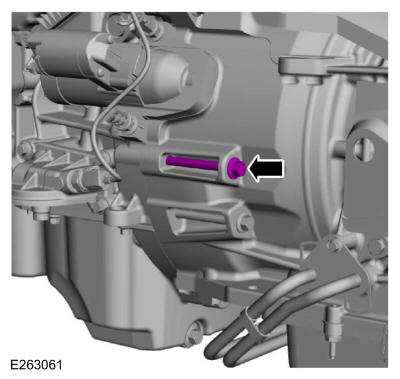

   Tighten the bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Automatic transmission shown, manual transmission similar.

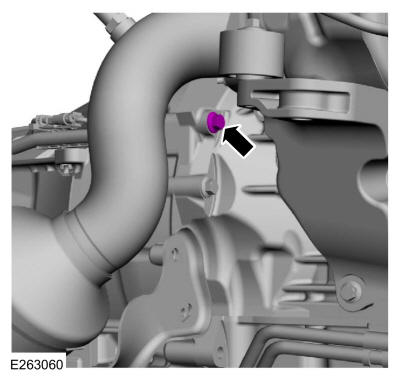

   Tighten the bellhousing-to-engine bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Automatic transmission shown, manual transmission similar.

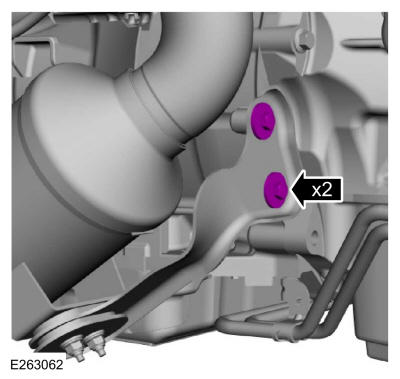

   Install the bolts for the catalytic converter bracket.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Using an adjustable stand, raise the subframe. Use the General Equipment: Vehicle/Axle Stands

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

11. Position the transmission cooling tube bracket and install the nut.

    Torque: 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Install the nut on the RH engine mount bracket stud bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

13. Install the new front subframe nuts loosely.

    Courtesy of FORD MOTOR COMPANY

14. • Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.
    • Align the subframe to the alignment marks made during removal.
    • Install the new rear subframe bolts loosely.

    Courtesy of FORD MOTOR COMPANY

15. Tighten the rear subframe bolts in a cross pattern.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Tighten the front subframe nuts in a cross pattern.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

18. Install the RH deflector shield and the fasteners.

    Courtesy of FORD MOTOR COMPANY

19. If equipped, install the RH and LH front height sensors. Refer to: Front Suspension Height Sensor .
20. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Automatic transmission shown, manual transmission similar.

    Tighten the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Automatic transmission shown, manual transmission similar.

    Position the coolant tube bracket and install the nut.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the bolts in the support bar.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Attach the brake line retainers to the subframe.

    Courtesy of FORD MOTOR COMPANY

25. Attach the EPAS wiring harness pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

26. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

27. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .
28. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

29. Install the underbody shield, bolts and the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

30. 1. Install the underbody shield and the bolts.

       Torque: 46 lb.ft (63 Nm)

    2. Install the underbody shield screws.

    Courtesy of FORD MOTOR COMPANY

31. Install the front wheels and tires. Refer to: Wheel and Tire .
32. Remove Special Service Tool: 303-F072 Support Bar, Engine.

    Courtesy of FORD MOTOR COMPANY

33. Install the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

34. Install the RH and LH engine mount bracket nuts.

    Torque: 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Remove the retaining pins.

    Courtesy of FORD MOTOR COMPANY

36. Install the radiator top shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

37. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

38. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

39. Install the engine appearance cover and the nuts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

40. If equipped, install the strut tower cross brace and the new nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

41. If equipped with strut tower cross brace, position the positive battery cable and attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

42. If equipped with strut tower cross brace, connect the positive battery cable. Refer to: Battery Disconnect and Connect .
43. Connect the battery ground. Refer to: Battery Disconnect and Connect .
44. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

45. 1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

       Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
