Cylinder Head: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE:
During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the following items:
- Remove the intake manifold. Refer to: Intake Manifold .
- Remove the vale tappets. Refer to: Valve Tappets .
-
- Detach and disconnect the fuel rail electrical connector.
- Detach the wiring harness retainers.
- Remove the fuel rail insulator shield.
- Disconnect and position the coolant tube aside. Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the fuel injector and the FRP sensor electrical connectors.
- Disconnect the ECT sensor electrical connector from the back of the engine.
-
- Disconnect the crankcase vent tube sensor electrical connector and wire harness retainer.
- Detach the crankcase vent tube retainer and remove.
-
- Disconnect the upper radiator hose from the coolant outlet tube. Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the coolant by-pass hose from the degas bottle. Use the General Equipment: Hose Clamp Remover/Installer

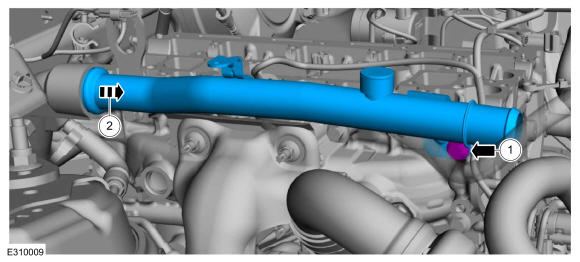

- Remove the bolt from the cylinder head and remove the coolant tube from coolant outlet.
- Remove and discard the coolant tube O-ring seal.
- Slide the insulator up and disconnect the CHT sensor electrical connector.

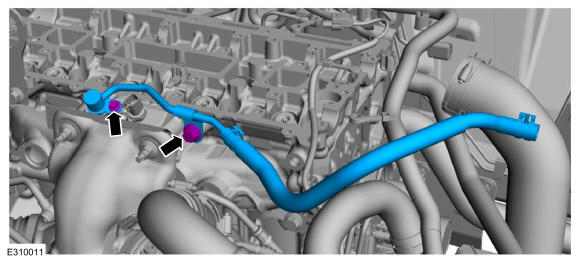

- Remove the bolts and the coolant tube.
- Inspect the coolant tube O-ring seal and replace if necessary.
- Remove the bolt and the ground wire.
- Disconnect the turbocharger hose from the coolant outlet. Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the heater hose from the coolant outlet. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the nuts, bolt and the turbocharger heat shield.
- Remove the turbocharger nuts and the studs.
-

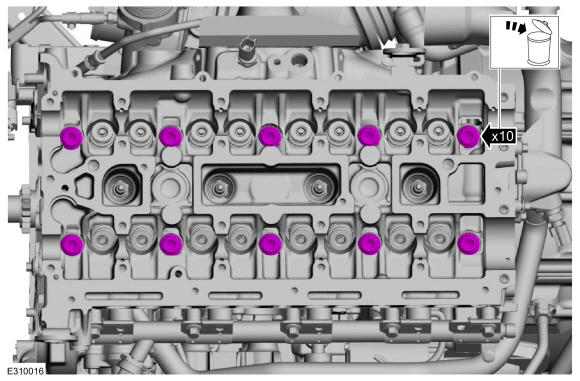

- Remove the cylinder head bolts.
- Discard the bolts.
-
NOTE: When removing or installing the cylinder head, use care to prevent excessive movement of the turbocharger. Excessive movement may cause damage to the turbocharger oil return tube resulting in an engine oil leak.

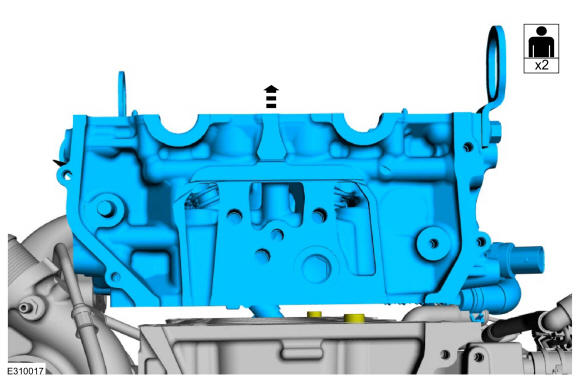

With the aid of an assistant, lift the cylinder head to clear the locating dowels in the cylinder block and remove the cylinder head.

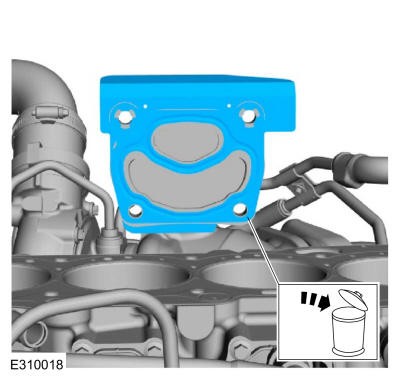

- Remove and discard the turbocharger gasket.

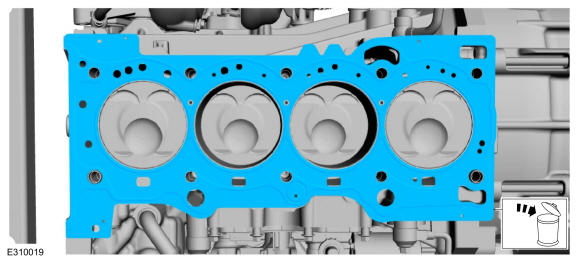

- Remove and discard the cylinder head gasket.
-

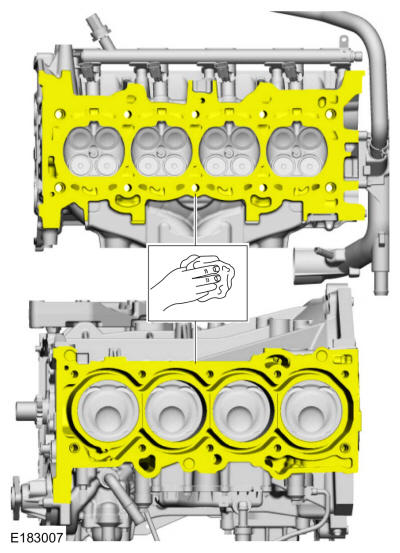

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.
Make sure that the mating faces are clean and free of foreign material.
- Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
- Check the cylinder block distortion. Refer to: Cylinder Block Distortion .
