Crankshaft Rear Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flexplate or flywheel. Refer to: Flexplate . Refer to: Flywheel .

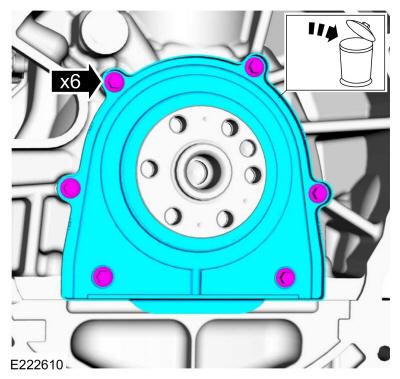

- Remove the bolts and the crankshaft rear seal, discard the crankshaft rear seal.

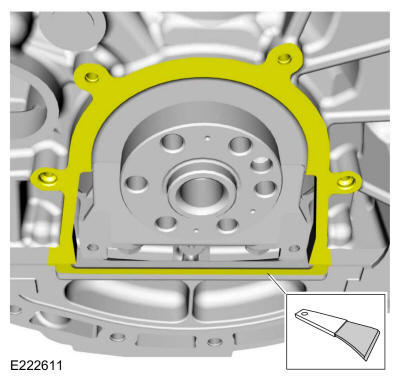

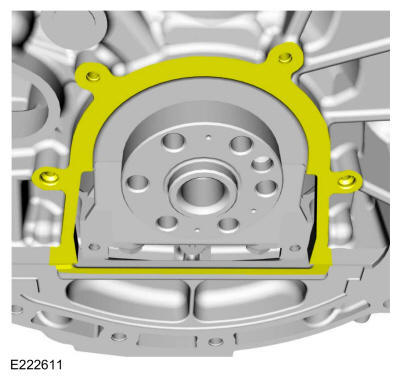

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
