Crankshaft Pulley: Installation

WARNING: This page is about a different variant/trim than selected.

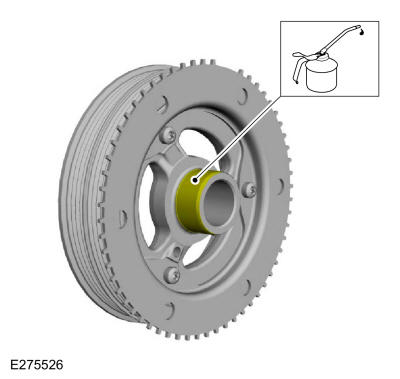

  1. Lubricate the crankshaft pulley with clean engine oil.
    GFD716100Courtesy of FORD MOTOR COMPANY
  2. Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.
    GFD716101Courtesy of FORD MOTOR COMPANY

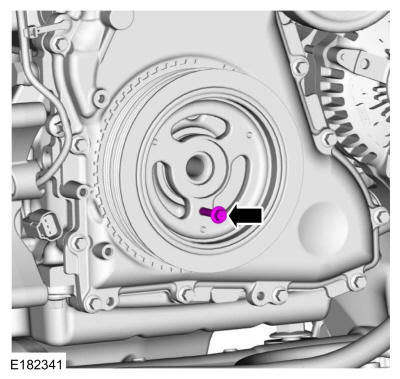

  3. NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

    Install an M6 bolt finger tight.

    GFD716102Courtesy of FORD MOTOR COMPANY

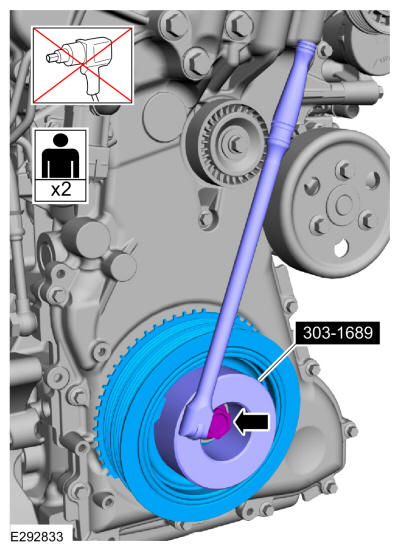

  4. NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be installed using hand tools only.

    With the aid of an assistant and using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

    Torque: Stage 1: 74 lb.ft (100 Nm) | Stage 2: 180°

    GFD716103Courtesy of FORD MOTOR COMPANY

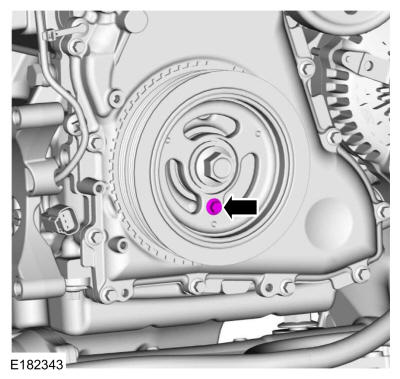

  5. Remove the M6 bolt.
    GFD716104Courtesy of FORD MOTOR COMPANY

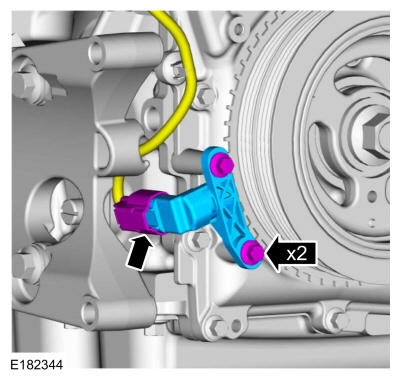

    • Connect the CKP sensor electrical connector.

    • NOTE: Do not tighten the CKP sensor bolts at this time.

      Install the CKP sensor and the bolts finger tight.

    GFD716105Courtesy of FORD MOTOR COMPANY

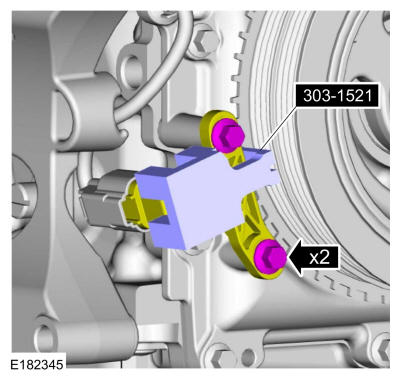

    • Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    • Tighten the bolts.

      Torque: 62 lb.in (7 Nm)

    GFD716106Courtesy of FORD MOTOR COMPANY

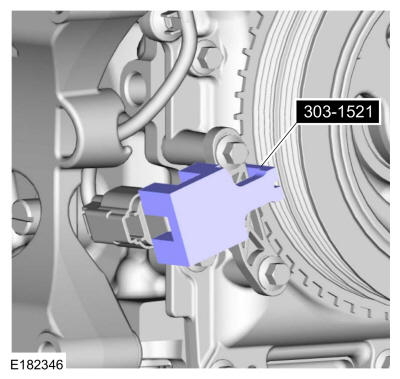

  8. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
    GFD716107Courtesy of FORD MOTOR COMPANY
  9. NOTE: Do not rotate the crankshaft until the special tools 303-1686 are removed from the valve cover.

    Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    GFD716095Courtesy of FORD MOTOR COMPANY
  10. Install the engine plug bolt.

    Torque: 177 lb.in (20 Nm)

    GFD716094Courtesy of FORD MOTOR COMPANY

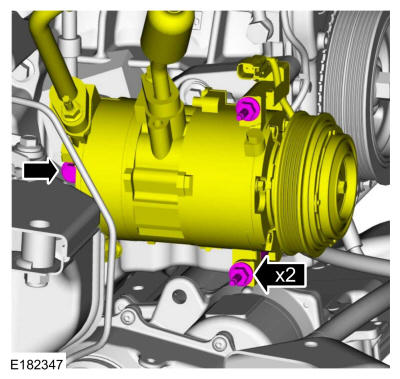

  11. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD716108Courtesy of FORD MOTOR COMPANY
  12. Connect the A/C compressor electrical connectors and the wire harness retainers.
    GFD716090Courtesy of FORD MOTOR COMPANY
  13. Remove Special Service Tool: 303-1686 Holding Tool, Camshaft.
    GFD716098Courtesy of FORD MOTOR COMPANY
  14. Install the following items:

    1. Install the RH and LH CMP sensors. Refer to: Camshaft Position (CMP) Sensor .
    2. Remove the accessory drive belt. Refer to: Accessory Drive Belt .

  15. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
