Section 7 (Engine - 2.3L ECOBOOST (231KW/314PS)/2.3L ECOBOOST (257KW/350PS) - Mi4): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E 2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine
Magnetic Socket
Trolley Jack
Vehicle/Axle Stands
Hose Clamp Remover/Installer
Wooden Block

Materials

10-Speed Automatic Transmission - 10R80

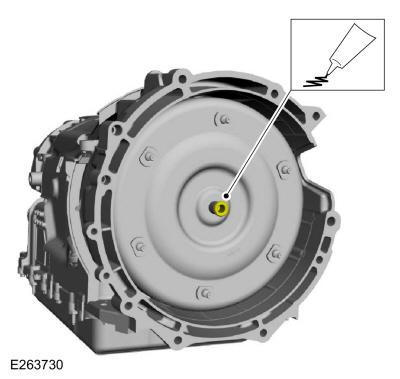

1. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

   6-Speed Manual Transmission - MT82

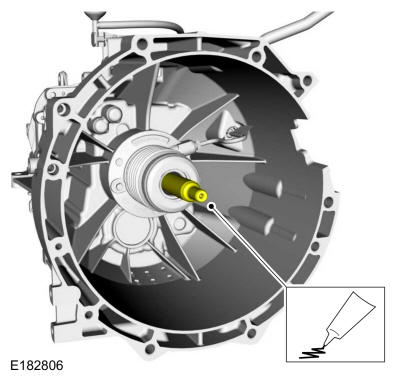

2. Lubricate the input shaft with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

   6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

3. Using the special tool, install the engine. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

   Courtesy of FORD MOTOR COMPANY

   10-Speed Automatic Transmission - 10R80

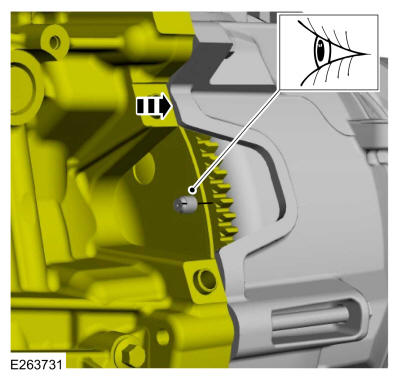

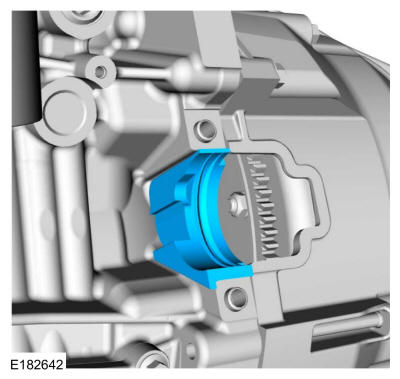

4. Align the torque converter stud marked during removal with the flexplate.

   Courtesy of FORD MOTOR COMPANY

   6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

5. NOTE: Automatic transmission shown, manual transmission similar.

   Install the oil pan bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

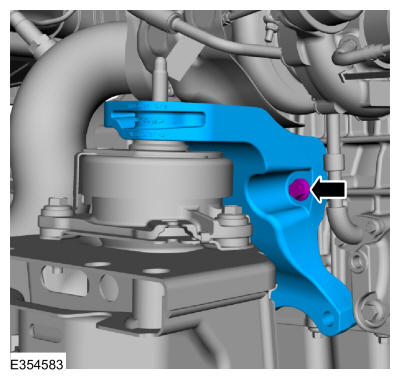

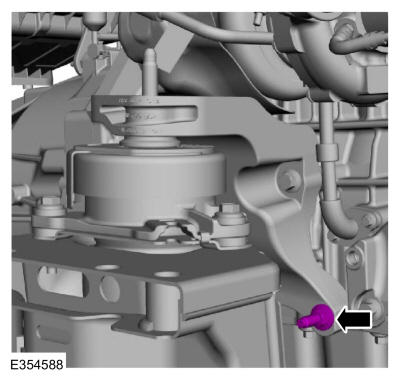

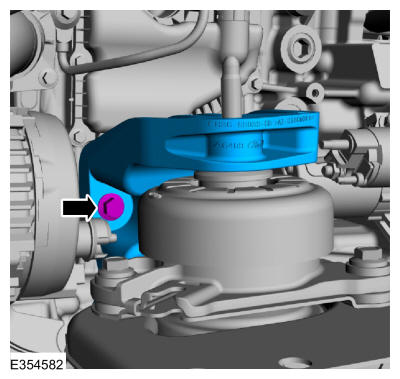

6. Install RH engine mount bracket and the front upper bolt finger tight.

   Courtesy of FORD MOTOR COMPANY

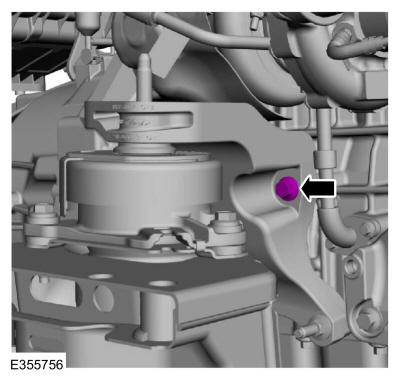

7. Install the LH engine mount bracket and the front upper bolt finger tight.

   Courtesy of FORD MOTOR COMPANY

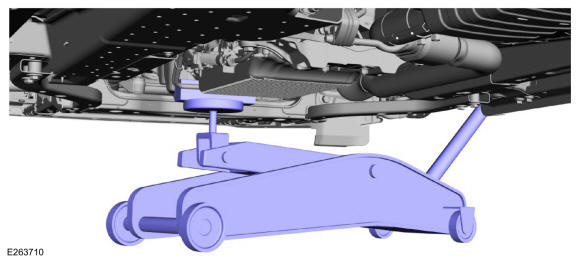

8. Remove the jack and wooden block. Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack

   Courtesy of FORD MOTOR COMPANY

9. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

   Courtesy of FORD MOTOR COMPANY

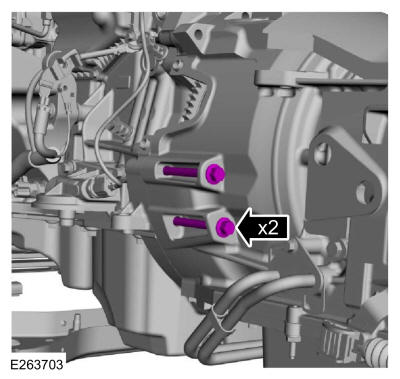

10. NOTE: Automatic transmission shown, manual transmission similar.

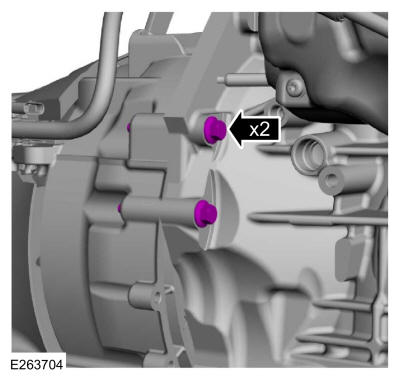

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

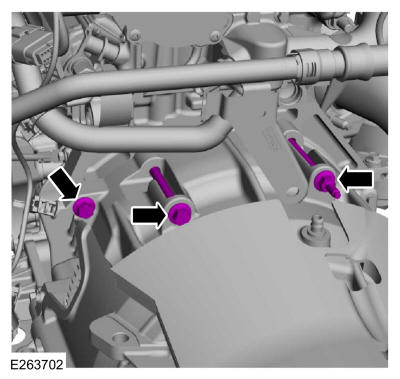

12. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

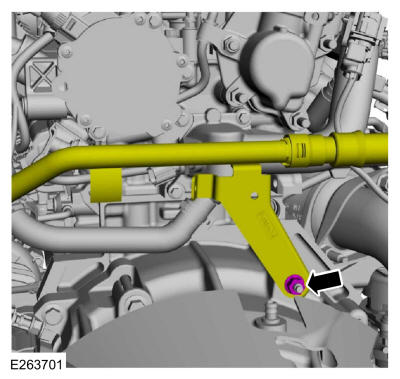

13. NOTE: Automatic transmission shown, manual transmission similar.

    Position the coolant tube bracket and install the nut.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

14. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

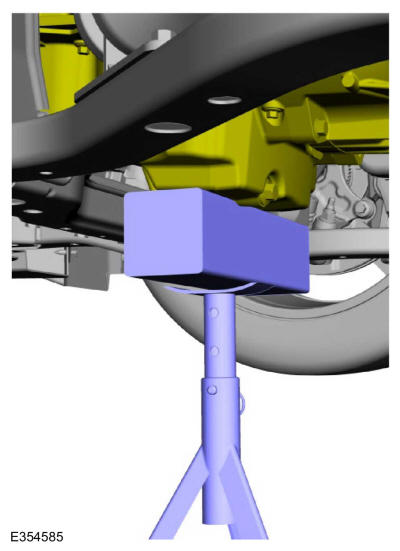

15. Install the jack stand and wooden block under the oil pan and support the engine. Use the General Equipment: Wooden Block Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

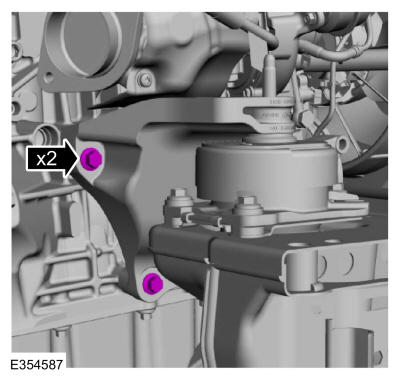

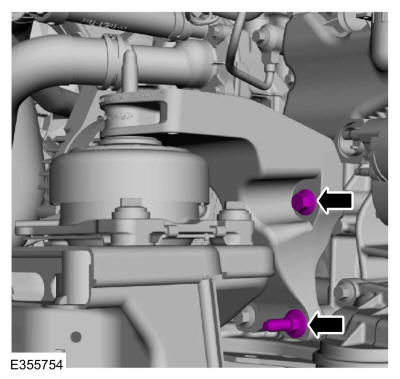

16. Install the rear bolts for the RH engine mount bracket finger tight.

    Courtesy of FORD MOTOR COMPANY

17. Install and tighten the front lower stud bolt for the RH engine mount bracket.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Tighten the rear bolts for the RH engine mount bracket.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the rear stud bolt and bolt for the LH engine mount bracket finger tight.

    Courtesy of FORD MOTOR COMPANY

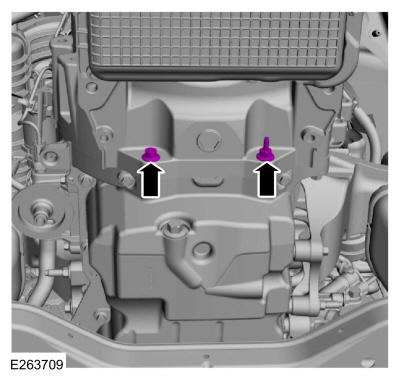

20. Install and tighten the front lower bolt for the LH engine mount bracket.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Tighten the rear stud bolt and bolt for the LH engine mount bracket.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Remove the jack stand and wooden block. Use the General Equipment: Wooden Block Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

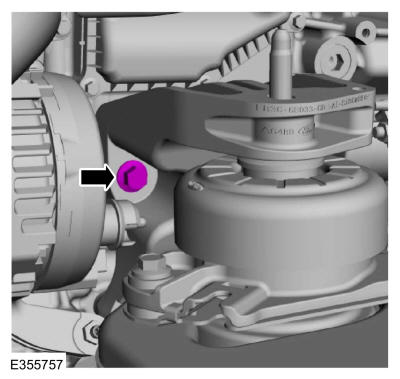

23. Tighten the front upper bolt for the RH engine mount bracket.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Tighten the front upper bolt for the LH engine mount bracket.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

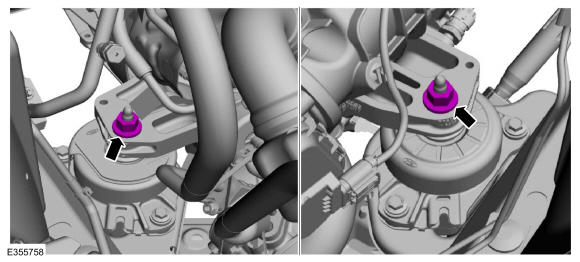

25. Install the RH and LH engine mount bracket nuts.

    Torque: 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

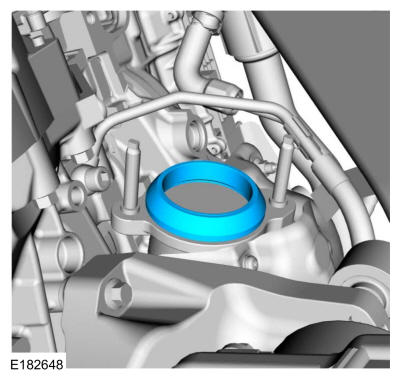

26. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

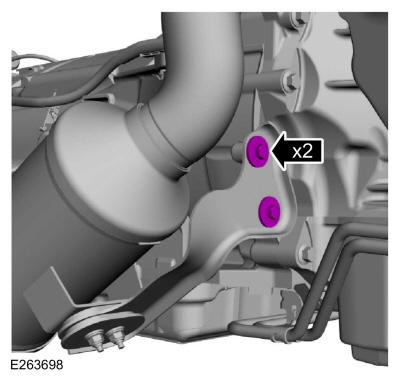

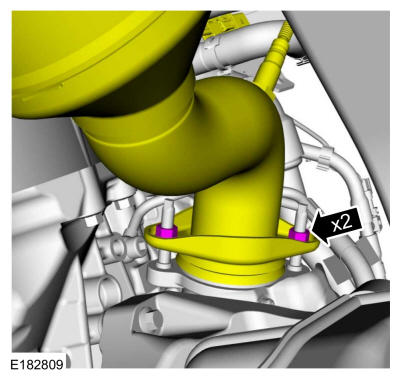

27. Position the catalytic converter and install the new nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Automatic transmission shown, manual transmission similar.

    Install the bolts for the catalytic converter bracket.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Automatic transmission shown, manual transmission similar.

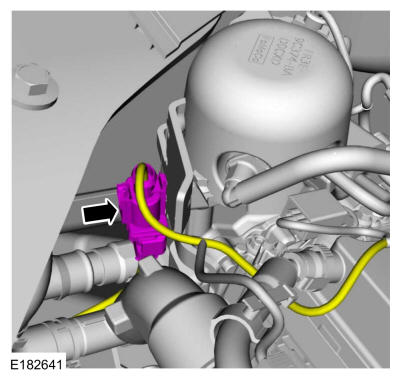

    Connect the catalyst monitor sensor (CMS) sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

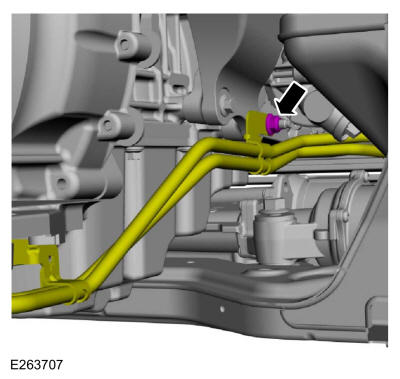

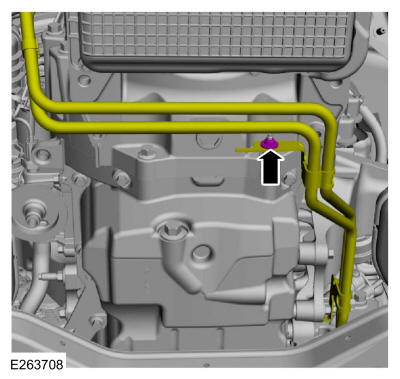

30. Install the transmission cooling tube bracket and nut.

    Courtesy of FORD MOTOR COMPANY

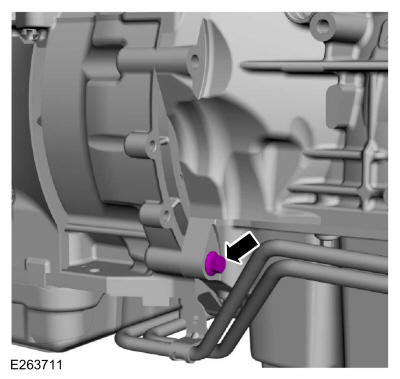

31. Position the automatic transmission tube bracket and install the nut.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

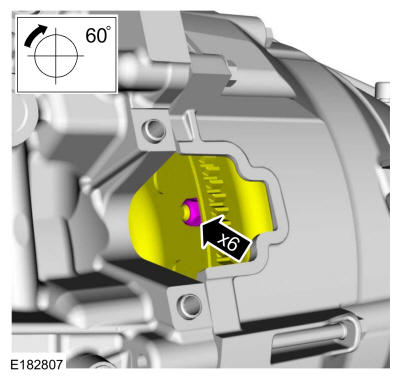

32. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the new torque convertor nuts. Use the General Equipment: Magnetic Socket

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

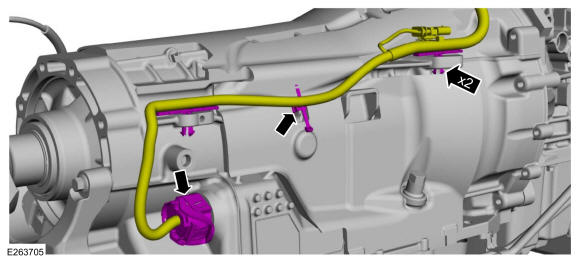

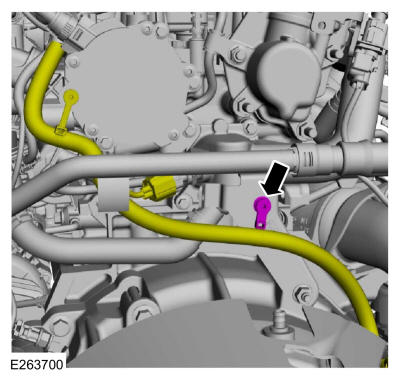

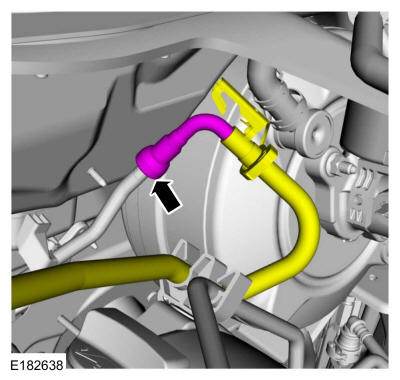

33. Attach the transmission wiring harness retainer to the coolant tube bracket.

    Courtesy of FORD MOTOR COMPANY

34. Attach the transmission vent hose and retainer.

    Courtesy of FORD MOTOR COMPANY

35. • Attach the wiring harness retainers.

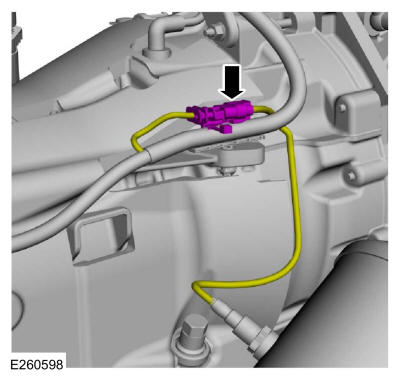

    • Connect the transmission electrical connector.

    Courtesy of FORD MOTOR COMPANY

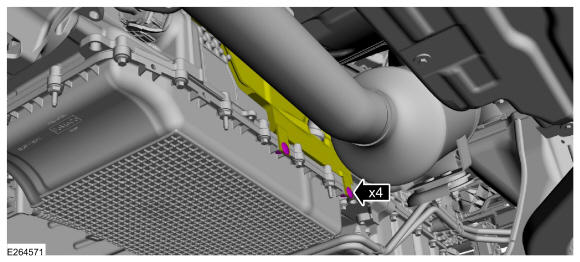

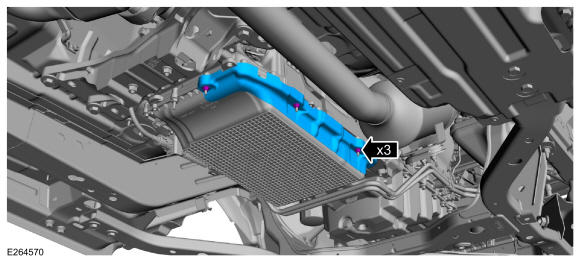

36. Position the NVH cover and install the retainers.

    Courtesy of FORD MOTOR COMPANY

37. Install the heat shield and the retainers.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

38. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

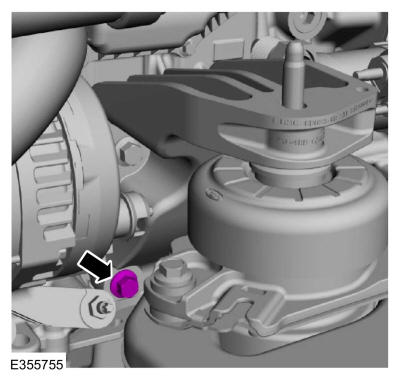

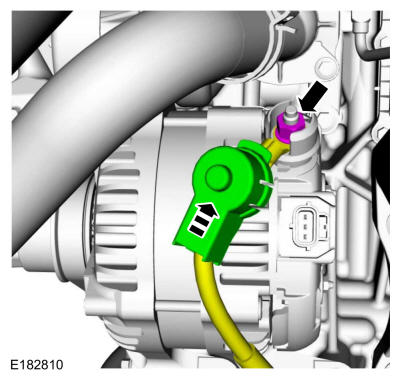

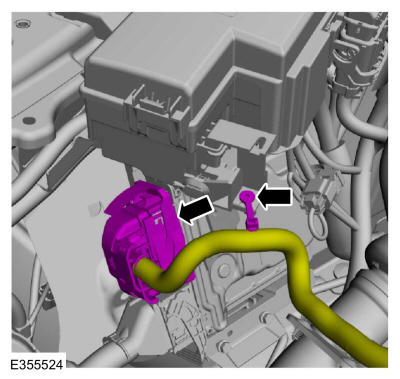

39. • Install the B+ cable and the nut.

      Torque: 150 lb.in (17 Nm)

    • Position the protective cover.

    Courtesy of FORD MOTOR COMPANY

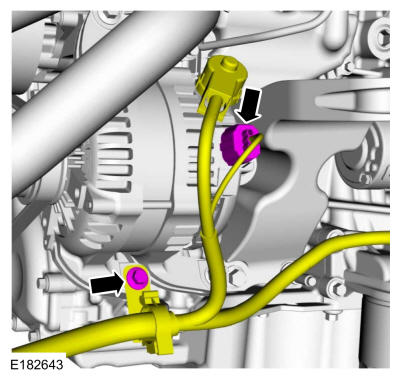

40. • Connect the generator electrical connector.

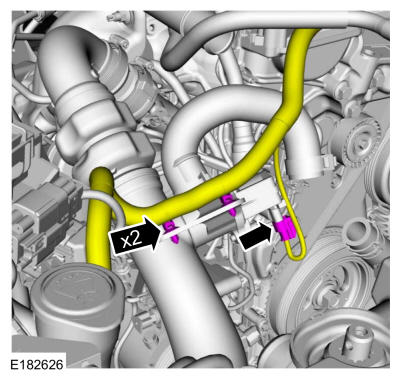

    • Position the wire harness retainer and install the bolt.

      Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

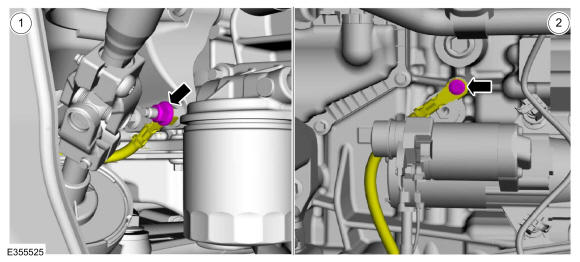

41. NOTE: The engine ground wire may be located in one of the following locations.
    1. If equipped, install the ground wire and nut to the LH engine mount bracket stud bolt.

       Torque: 35 lb.ft (48 Nm)

    2. If equipped, install the ground wire and bolt to the LH side of the engine block.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

42. Attach the wire harness retainer to the engine mount bracket stud bolt.

    Courtesy of FORD MOTOR COMPANY

43. Install the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

44. Install the starter motor. Refer to: Starter Motor .
45. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Connect the A/C compressor electrical connectors and the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

47. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

48. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

49. Connect and attach the HO2S electrical connector.

    Courtesy of FORD MOTOR COMPANY

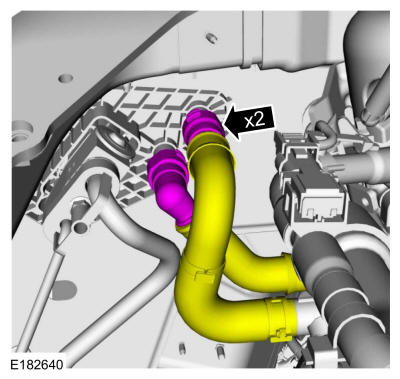

50. Connect the coolant hoses to the heater core.

    Courtesy of FORD MOTOR COMPANY

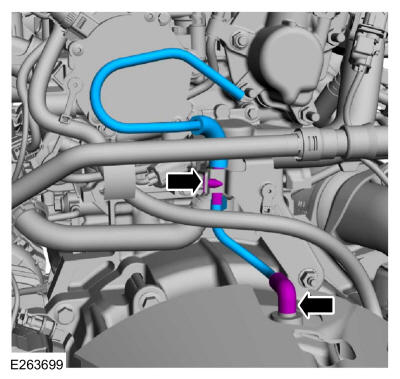

51. • Attach the vacuum tube to the intake manifold retainer.
    • Connect the vacuum tube quick release coupling to the EVAP canister purge valve.

    Courtesy of FORD MOTOR COMPANY

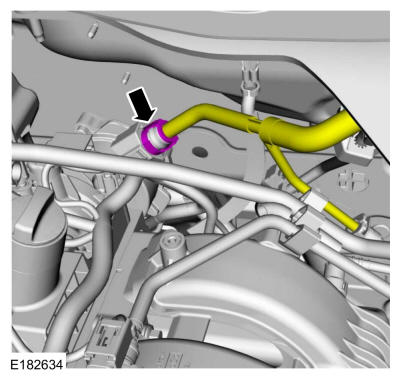

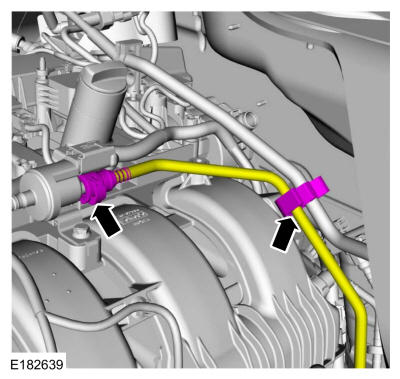

52. Connect the fuel supply tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

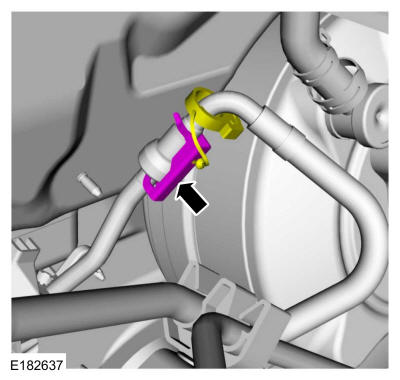

53. Install the fuel supply tube spring lock coupling retainer.

    Courtesy of FORD MOTOR COMPANY

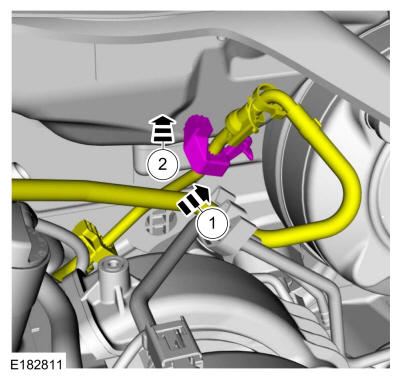

54. 1. Slide the retainer up the fuel supply tube.
    2. Attach the fuel supply tube retainer to the cowl.

    Courtesy of FORD MOTOR COMPANY

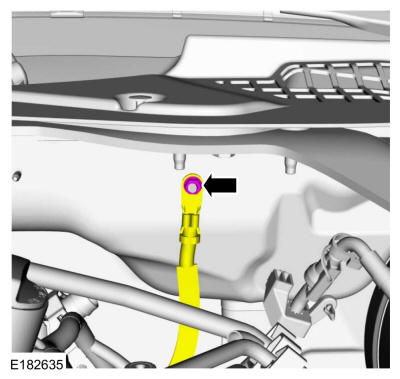

55. Install the engine ground strap and nut to the cowl.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Connect the vacuum hose to the brake vacuum pump.

    Courtesy of FORD MOTOR COMPANY

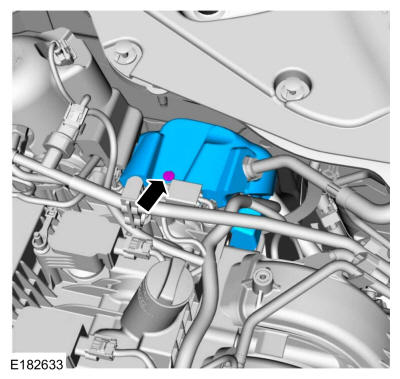

57. Install the brake vacuum pump insulator cover and the retainer.

    Courtesy of FORD MOTOR COMPANY

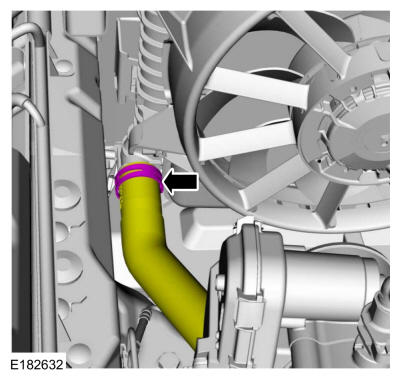

58. Install the lower radiator hose to the radiator. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

59. Position the CAC outlet tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

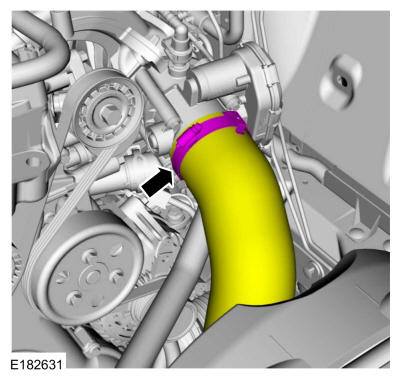

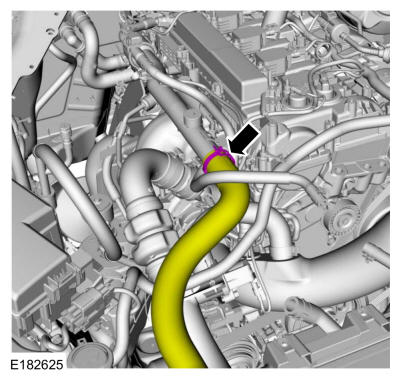

60. Position the CAC inlet tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

61. Connect the upper PCM electrical connector and the retainer.

    Courtesy of FORD MOTOR COMPANY

62. Connect and attach the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

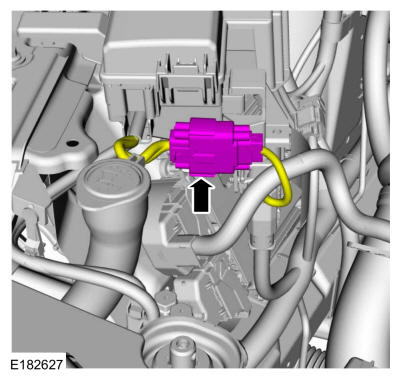

63. Connect the CAC valve electrical connector and the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

64. Install the following items:
    1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Install the air cleaner. Refer to: Air Cleaner .
    3. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

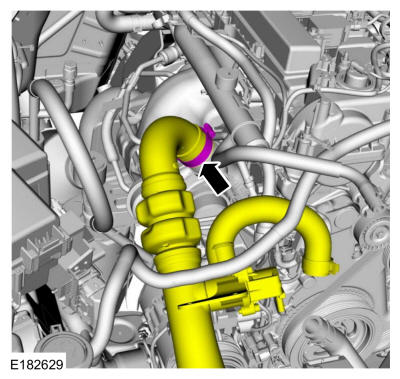

65. Install the upper radiator hose to the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

66. Install the degas bottle. Refer to: Degas Bottle .

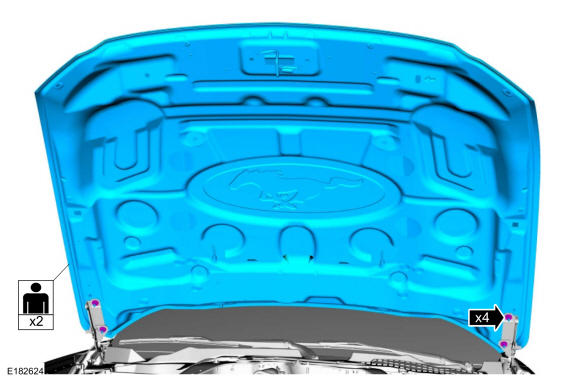

67. NOTE: Use the index-mark for location to aid in hood installation.

    Install the hood and the 4 nuts.

    Torque: 17 lb.ft (23 Nm)

    Courtesy of FORD MOTOR COMPANY

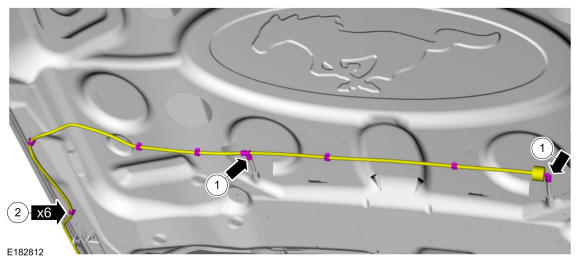

68. 1. Connect the windshield washer hose couplings. Refer to: Washer Hose Coupling .
    2. Attach the windshield washer hose retainers.

    Courtesy of FORD MOTOR COMPANY

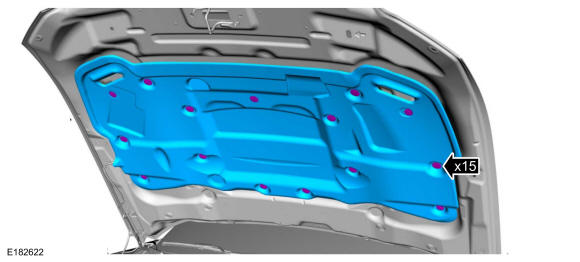

69. Install the hood insulation and the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

70. Install the engine appearance cover and the nuts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

71. If equipped, install the strut tower cross brace and the new nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

72. If equipped with strut tower cross brace, position the positive battery cable and attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

73. If equipped with strut tower cross brace, connect the positive battery cable. Refer to: Battery Disconnect and Connect .
74. Connect the battery ground. Refer to: Battery Disconnect and Connect .
75. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

76. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
77. 1. Install the underbody shield and the bolts.

       Torque: 46 lb.ft (63 Nm)

    2. Install the underbody shield screws.

    Courtesy of FORD MOTOR COMPANY

78. Start and check the exhaust system for leaks.
79. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
