Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

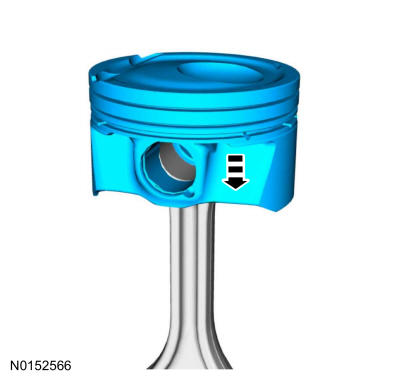

  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD716493Courtesy of FORD MOTOR COMPANY

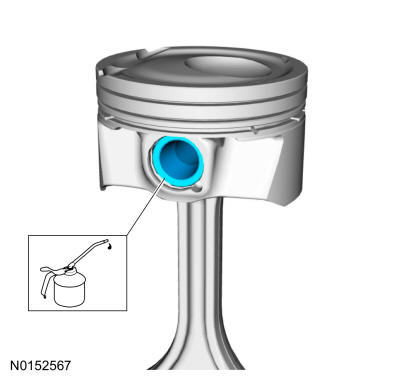

  2. Lubricate with clean engine oil and install the piston pin.
    GFD716494Courtesy of FORD MOTOR COMPANY
  3. Install the piston pin retainers.
    GFD716495Courtesy of FORD MOTOR COMPANY
  4. Lubricate with clean engine oil and install the piston rings.
    GFD716496Courtesy of FORD MOTOR COMPANY
  5. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

GFD716497Courtesy of FORD MOTOR COMPANY
