Clutch Slave Cylinder: Installation
WARNING: This page is about a different variant/trim than selected.

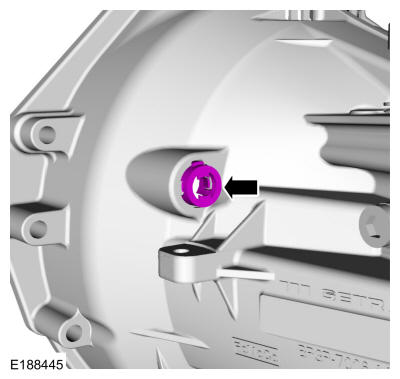

- Install a new retaining clip.
- Position the clutch slave cylinder in the transmission, inserting the tube through the retaining clip. Install the clutch slave cylinder bolts.
Torque: 97 lb.in (11 Nm)
- Install the transmission Refer to: Transmission - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4
Refer to: Transmission - 5.0L 32V Ti-VCT .
