Clutch Master Cylinder: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call the Poison Control Center at: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
- Remove the brake pedal and bracket assembly. Refer to: Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82 .

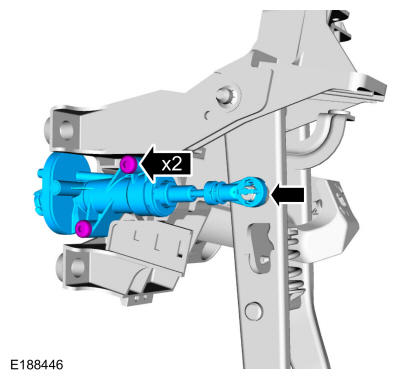

- Remove the clutch master cylinder bolts, then disconnect the clutch master cylinder from the clutch pedal and remove the master cylinder. Inspect the retaining clip for damage and replace if necessary.
Torque: 89 lb.in (10 Nm)
