Muffler and Tailpipe: Installation

WARNING: This page is about a different variant/trim than selected.

Clean all exhaust connections before reassembly.
NOTE: Bumper not shown in illustration for clarity.

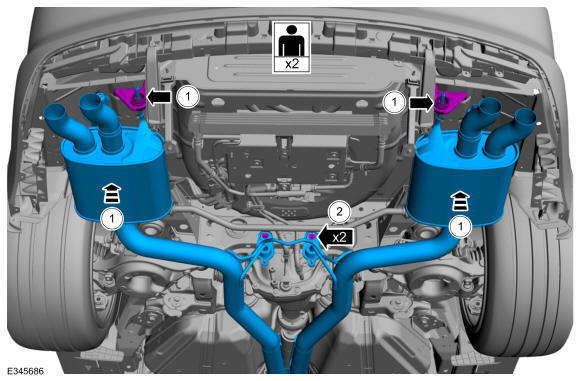

1. Position the muffler and tailpipe in hanger isolators and in the vehicle.
2. Install the LH and RH rear exhaust hanger isolator bracket bolts in the rear subframe.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

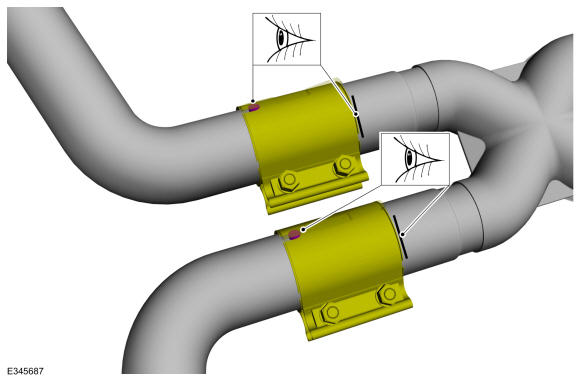

NOTE: Ensure that the service clamp centered correctly over the joint, failing this could result in damage to the active exhaust actuator wiring harness and muffler and tailpipe assembly.

NOTE: Make sure that the clamp aligns with the installation mark.

Position the locking tabs and align the clamps with installation mark.

Courtesy of FORD MOTOR COMPANY

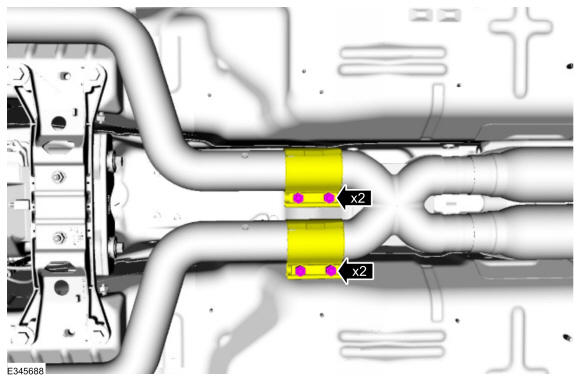

Install the LH and RH clamp nuts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown in illustration, RH similar.

NOTE: Bumper not shown in illustration for clarity.

Attach the wiring retainers. Connect the LH and RH tailpipe actuator electrical connectors.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Check the exhaust system for leaks.
