Catalytic Converter LH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: If the catalytic converter is not being replaced, the catalyst monitor sensor does not need to be removed from the catalytic converter. Disconnecting the electrical connector is still necessary.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

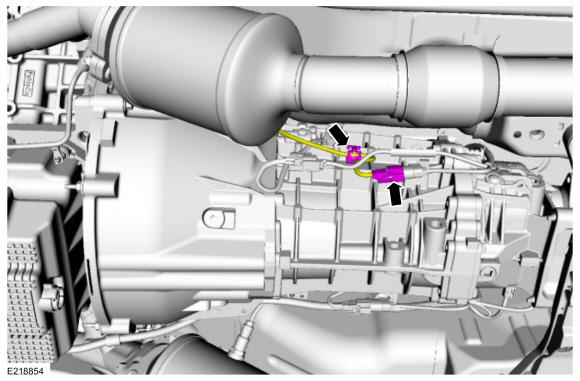

Disconnect the catalyst monitor sensor electrical connector and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

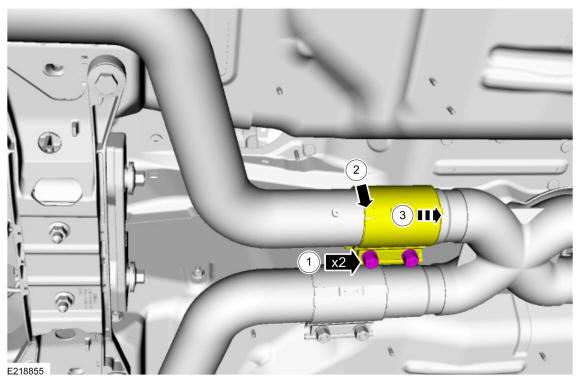

1. Loosen the clamp nuts.
  Torque: 35 lb.ft (48 Nm)
2. Release the locking tab on the clamp.
3. Reposition the clamp rearward.
Courtesy of FORD MOTOR COMPANY

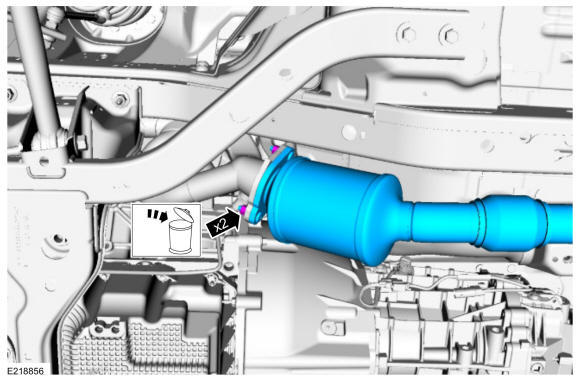

NOTE: During assembly, tighten the catalytic converter nuts evenly.

Remove and discard the nuts and remove the LH catalytic converter. Discard the gasket.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
