Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Take a Extra Care not a damage Fuel tank level sensor and flot arm.

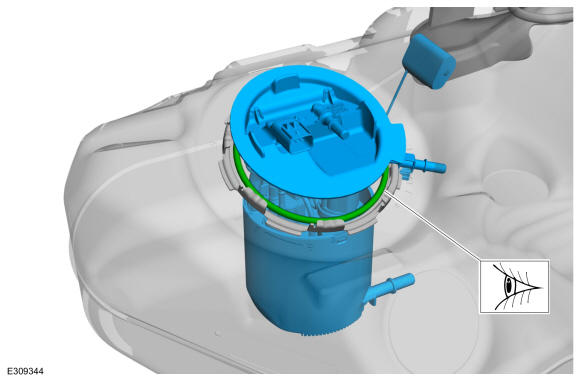

NOTE: Make sure to install a new Fuel Level Sensor O-ring seal.

NOTE: Make sure that the seal is correctly located.

Courtesy of FORD MOTOR COMPANY

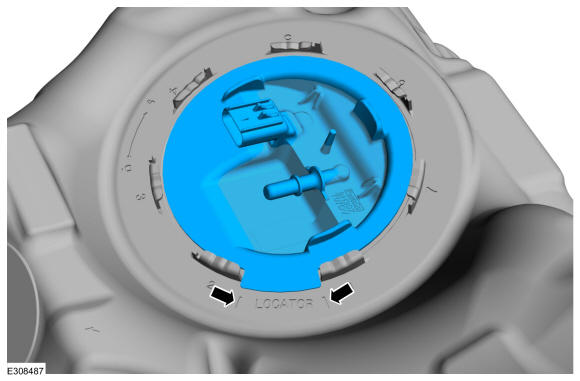

NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
