Fuel Lines: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel tank. Refer to: Fuel Tank .
- Remove LH Catalytic Converter. Refer to: Catalytic Converter LH .

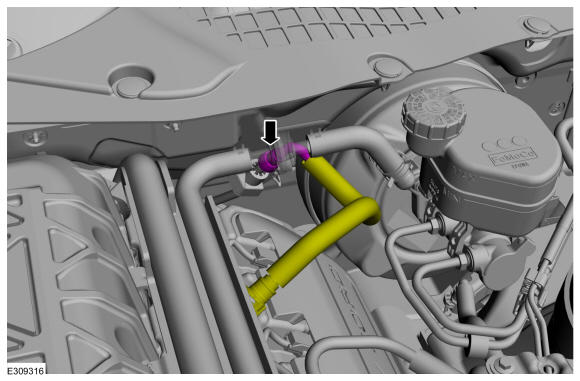

- Disconnect the fuel line-to-fuel rail spring lock coupling. Refer to: SPRING LOCK COUPLINGS
.

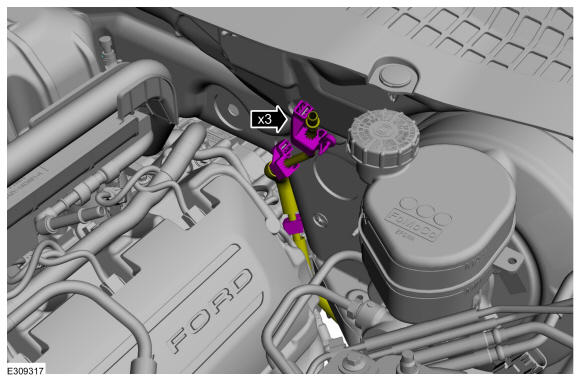

- Detach the retainer clips.

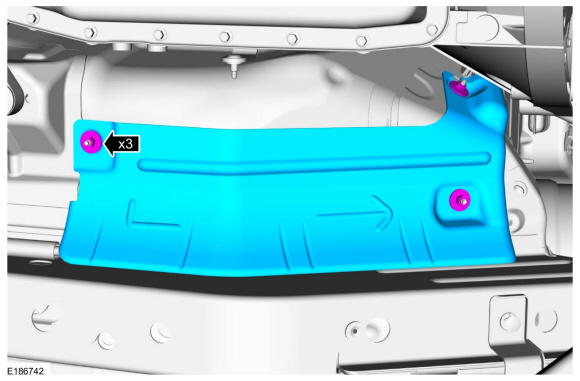

- Remove the nuts and the heat shield.
Torque: 71 lb.in (8 Nm)

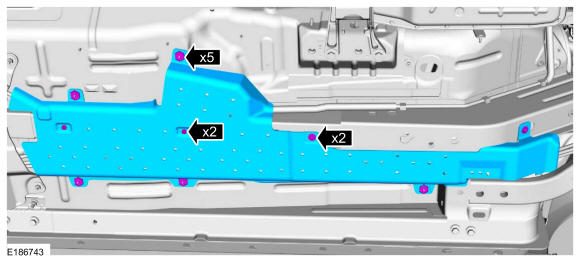

- Remove the nuts, bolts, push-pins and splash shield.

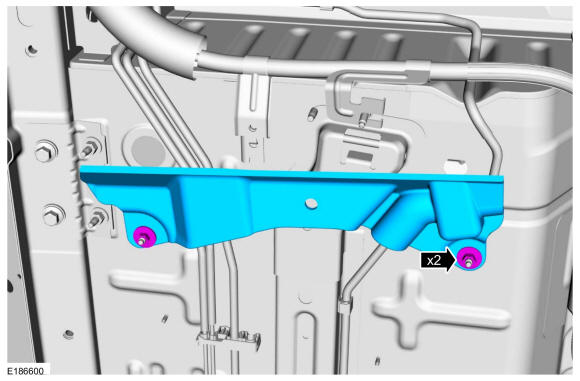

- Remove the nuts and the fuel tank deflector.
Torque: 18 lb.ft (25 Nm)

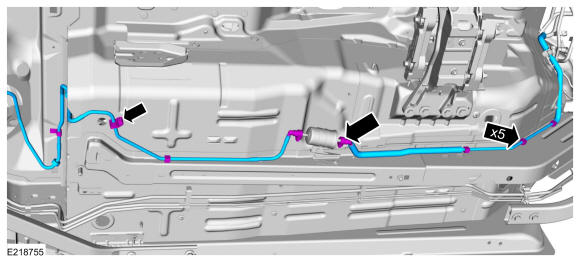

- If equipped. Release the retainers and remove the fuel line. Refer to: QUICK RELEASE COUPLING .
