Gearshift Lever: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the gearshift lever boot. Refer to: Gearshift Lever Boot .
- Remove the driveshaft. Refer to: Driveshaft .

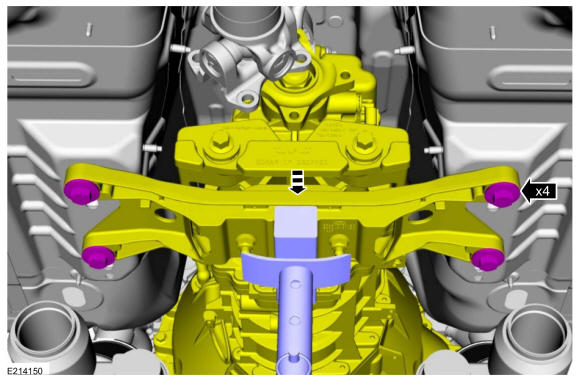

- Support the crossmember with a transmission jack, remove the crossmember bolts and lower the transmission. Use the General Equipment: Transmission Jack

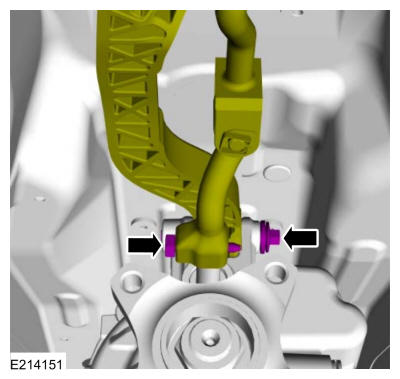

- Remove the gearshift lever assembly bolts.
- Remove the nuts and the gearshift lever assembly.
