Gearshift Lever: Installation

WARNING: This page is about a different variant/trim than selected.

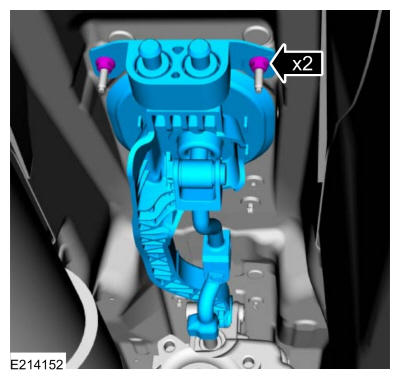

Install the gearshift lever assembly and nuts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

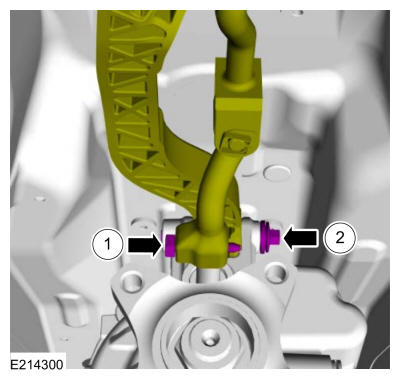

1. Install the gearshift lever bolt.
  Torque: 133 lb.in (15 Nm)
2. Install the gearshift lever-to-transmission bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

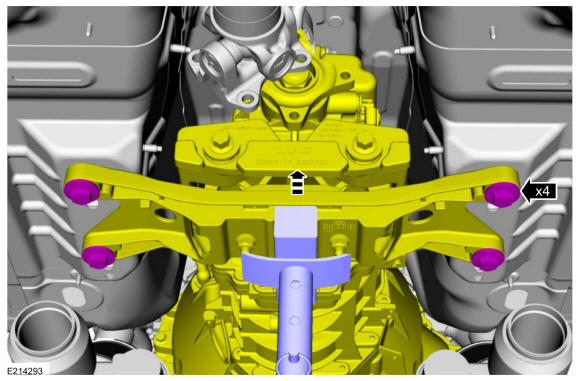

Support the crossmember with a transmission jack, raise the transmission and install the crossmember bolts. Use the General Equipment: Transmission Jack
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the driveshaft. Refer to: Driveshaft .
Install the gearshift lever boot. Refer to: Gearshift Lever Boot .
