Gearshift Lever Boot: Installation

WARNING: This page is about a different variant/trim than selected.

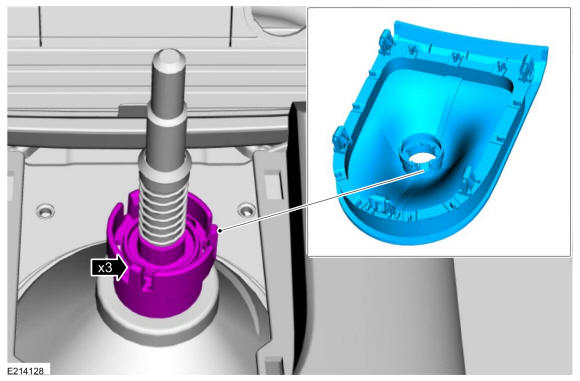

  1. Install the gearshift lever boot and attach the retainers.
    GFD719678Courtesy of FORD MOTOR COMPANY

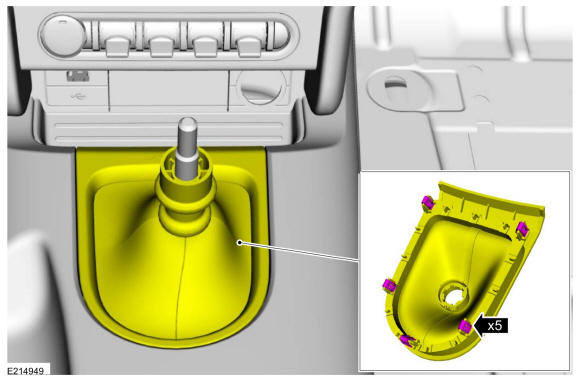

  2. Install the gearshift lever boot to the floor console.
    GFD719679Courtesy of FORD MOTOR COMPANY

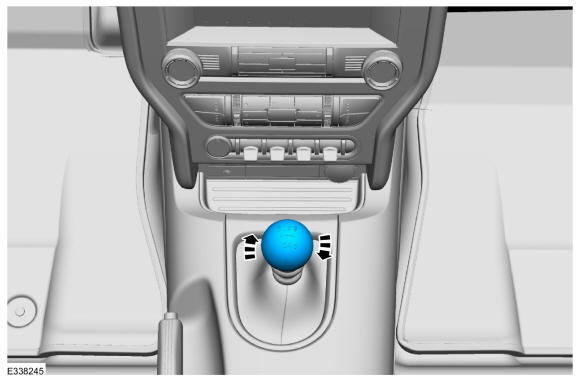

  3. Install the gearshift knob, remove the tape from the gearshift knob surface.
GFD719680Courtesy of FORD MOTOR COMPANY
