Gearshift Lever: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

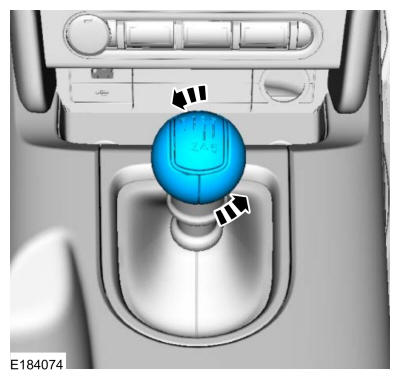

- Rotate the gearshift knob counterclockwise and remove the gearshift knob.

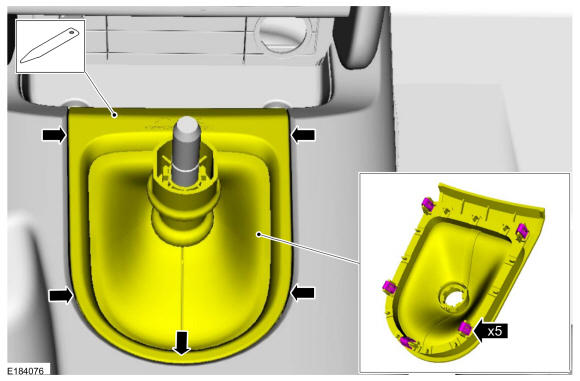

- Using an interior trim remover, release the gearshift lever boot from the floor console starting at the front sides and moving rearward. Use the General Equipment: Interior Trim Remover
Click here to view a video version of this procedure.

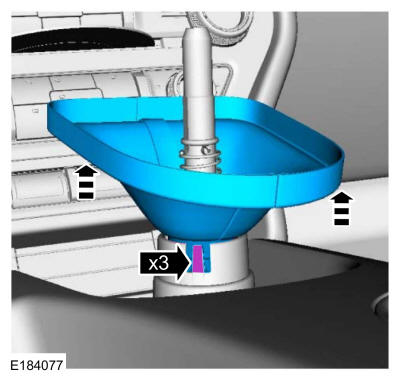

multimedia:A supplement to the article is available. - Release the retainers and remove the gearshift lever boot.
- Remove the driveshaft. Refer to: Driveshaft .

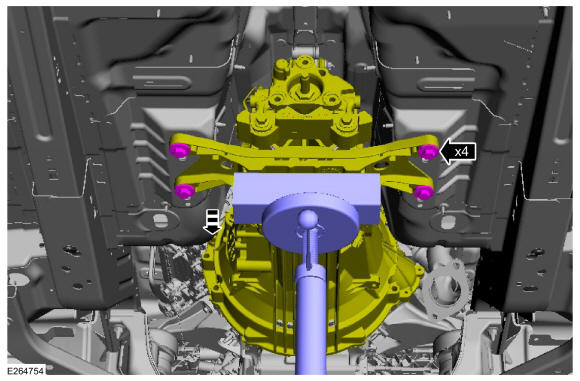

- Support the crossmember with a wood block and a jack stand, remove the crossmember bolts and lower the transmission. Use the General Equipment: Vehicle/Axle Stands Use the General Equipment: Wooden Block

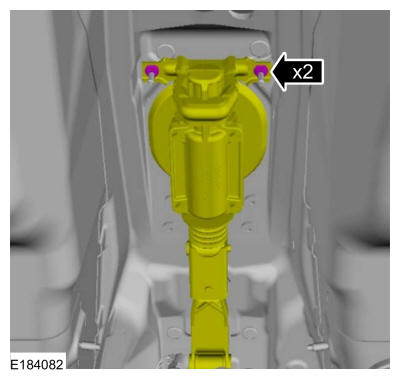

- Remove the gearshift lever nuts.
- Remove the gearshift lever assembly.

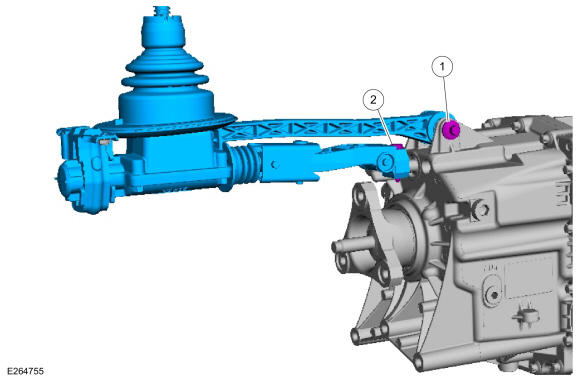

- Remove the gearshift lever-to-transmission bolt.
- Remove the gearshift lever bolt.
- Remove the gearshift lever assembly from the transmission by pulling towards the rear of the vehicle.
