Gearshift Lever Boot: Installation

WARNING: This page is about a different variant/trim than selected.

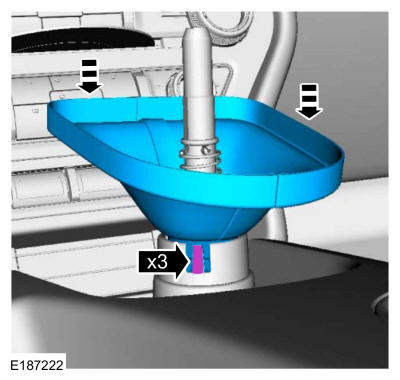

  1. Install the gearshift lever boot and attach the retainers.
    GFD719667Courtesy of FORD MOTOR COMPANY

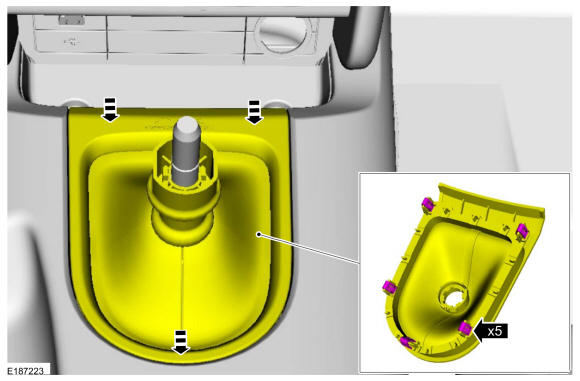

  2. Install the gearshift lever boot to the floor console.
    GFD719668Courtesy of FORD MOTOR COMPANY

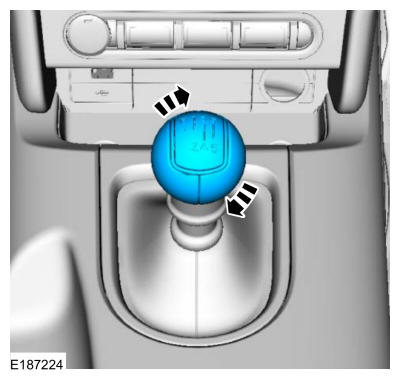

  3. Install the gearshift knob.
GFD719669Courtesy of FORD MOTOR COMPANY
