Output Shaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

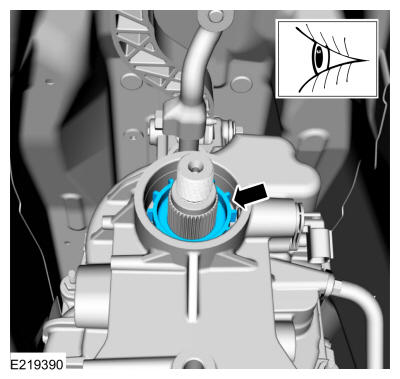

- Remove and inspect the speed sensor tone wheel for damage. Install a new tone wheel if damage is found.

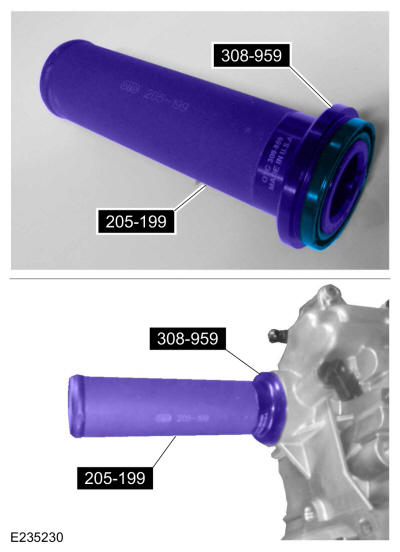

- Install a new seal on the special tool. Use Special Service Tool: 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft., 308-959 Installer, Output Shaft Seal.
- Install the output shaft flange. Refer to: Transmission Output Shaft Flange
