Transmission Draining and Filling
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® Thread Sealant with PTFETA-24-B | WSK-M2G350-A2 |
| Motorcraft® MERCON® LV Automatic Transmission FluidXT-10-QLVC | WSS-M2C938-AMERCON® LV, |
-
NOTE: Make sure that the vehicle is level.
Refer to: Jacking and Lifting - Overview

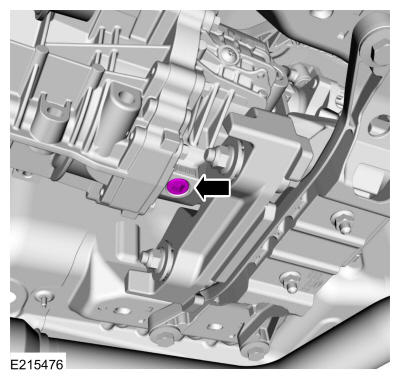

- Remove the drain plug and drain the transmission fluid. Apply thread sealer to the drain plug.
Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
Torque: 21 lb.ft (28 Nm)

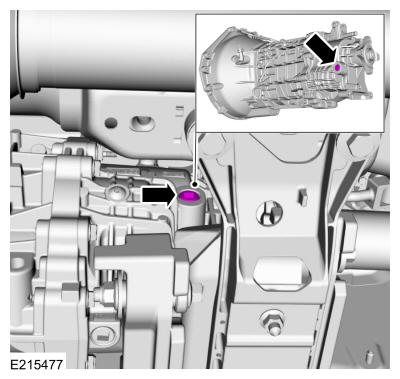

- Remove the fill plug.

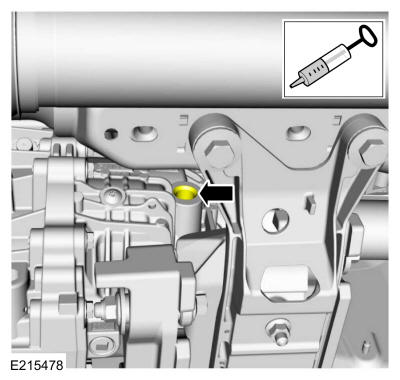

- Fill the transmission to the bottom of the fill hole. Refer to: Specifications
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Vehicles Equipped with a Transmission Fluid Cooler
- Loosely install the fill plug.
-
NOTE: Vehicles equipped with a transmission fluid cooler must be started and run for 2 minutes with the clutch engaged (clutch pedal released) to allow the transmission fluid to circulate through the transmission fluid cooling system or the transmission will be underfilled.
Start the engine and allow the engine to idle for 2 minutes with the clutch engaged.
- Turn engine off.
- Fill the transmission to the bottom of the fill hole. Refer to: Specifications
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
All vehicles
- Apply thread sealer to the fill plug. Install the fill plug.
Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
Torque: 21 lb.ft (28 Nm)
