Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bolt and the guide plate.
    GFD719619Courtesy of FORD MOTOR COMPANY

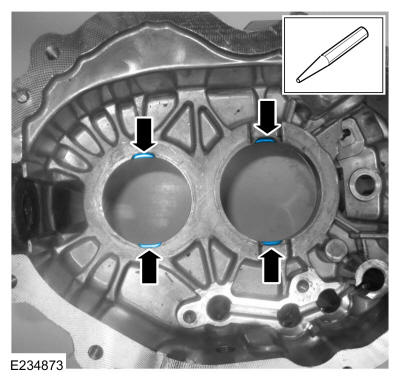

  2. Using a drift, drive the bearing races out of the transmission case. Use the General Equipment: Punch
GFD719620Courtesy of FORD MOTOR COMPANY
