Output Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE: Take note of all components that need to be heated before assembly. Do not heat components above 260 degrees and no longer then 15 minutes.

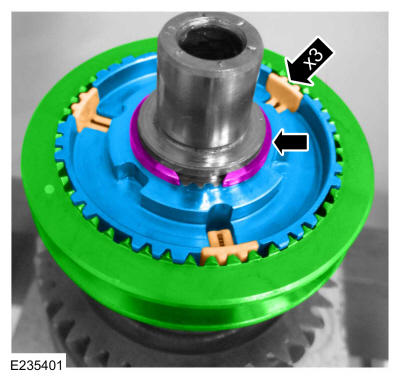

  1. Remove the snap ring and remove the 5-6 synchronizer hub, sleeve and detents.
    GFD719599Courtesy of FORD MOTOR COMPANY

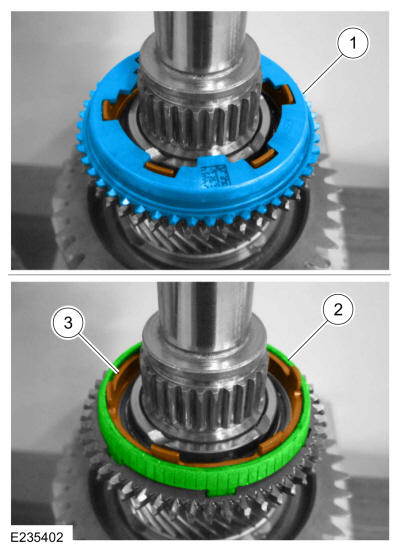

  2. Remove the 6th gear 3-piece synchronizer assembly.
    GFD719600Courtesy of FORD MOTOR COMPANY

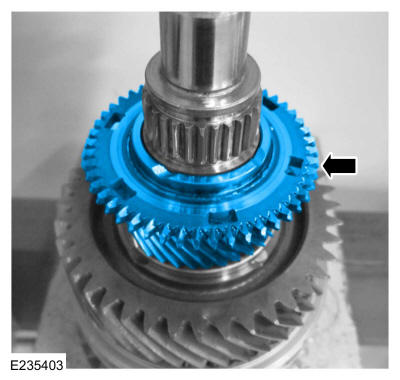

  3. Remove 6th gear.
    GFD719601Courtesy of FORD MOTOR COMPANY

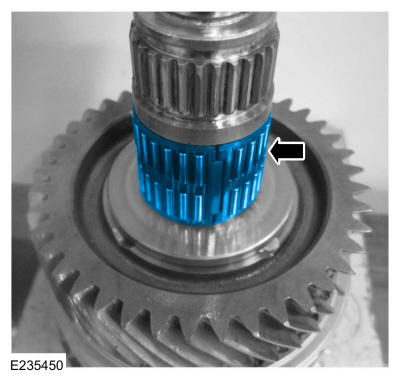

  4. Remove the 6th gear roller bearing.
    GFD719602Courtesy of FORD MOTOR COMPANY

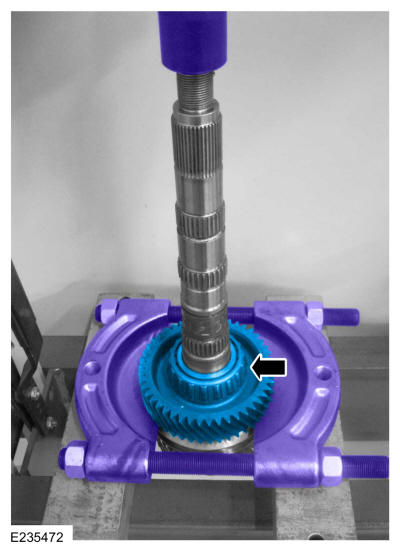

  5. Using a press and a bearing separator, remove the roller bearing and 1st gear. Use the General Equipment: Hydraulic Press. Use the General Equipment: Bearing Separator
    GFD719603Courtesy of FORD MOTOR COMPANY

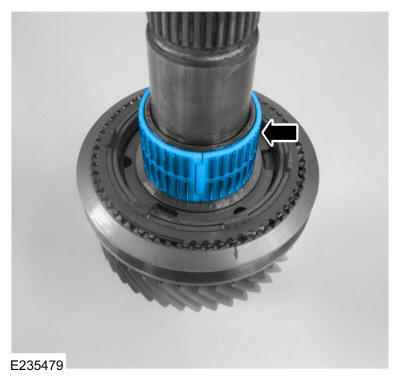

  6. Remove the 1st gear roller bearing.
    GFD719604Courtesy of FORD MOTOR COMPANY

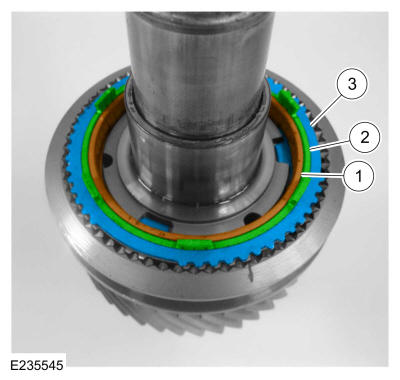

  7. Remove the 1st gear 3-piece synchronizer assembly.
    GFD719605Courtesy of FORD MOTOR COMPANY

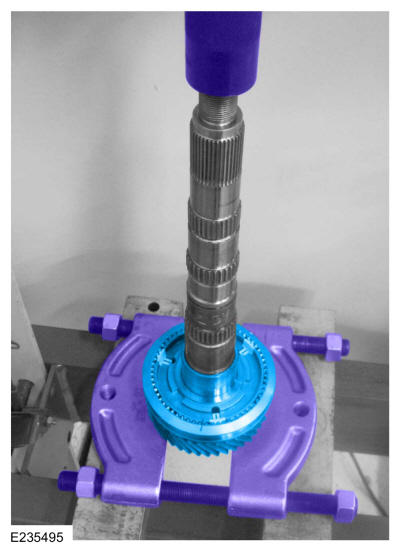

  8. Using a press and a bearing separator, remove 2nd gear, the 1-2 synchronizer hub and sleeve and the 1st gear roller bearing inner race. Use the General Equipment: Hydraulic Press. Use the General Equipment: Bearing Separator
    GFD719606Courtesy of FORD MOTOR COMPANY

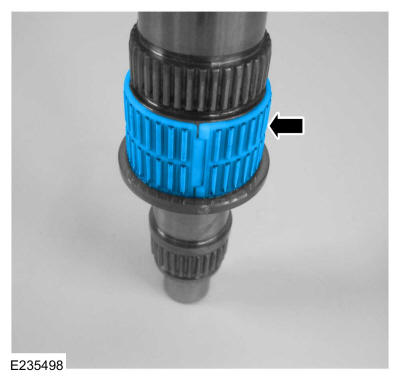

  9. Remove the 2nd gear roller bearing.
GFD719607Courtesy of FORD MOTOR COMPANY
