Output Shaft: Assembly
WARNING: This page is about a different variant/trim than selected.

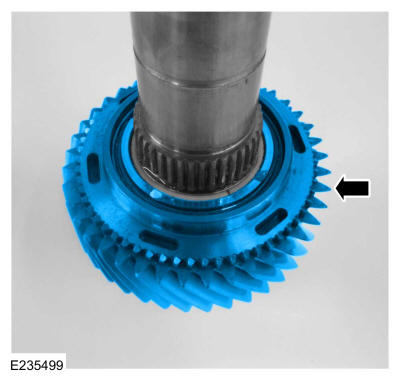

- Install the 2nd gear roller bearing.
- Install 2nd gear.

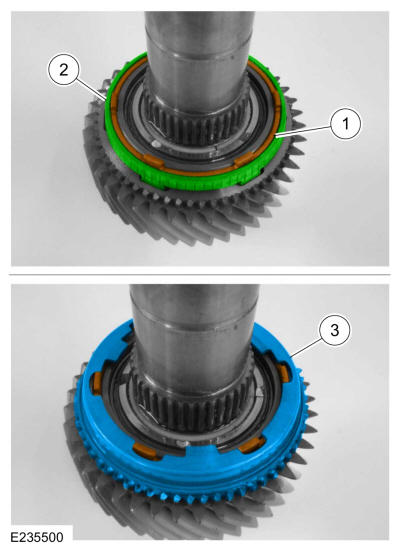

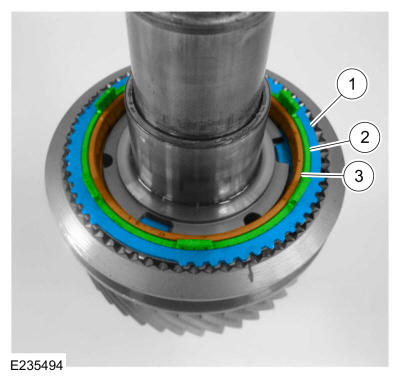

- Install the 2nd gear 3-piece synchronizer assembly.

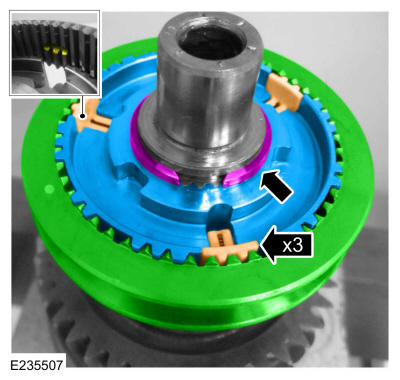

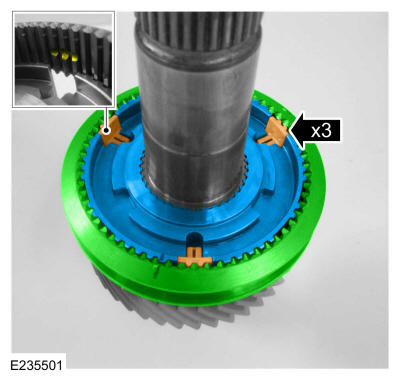

- Install the 1-2 synchronizer hub, synchronizer sleeve and install the 3 detents. When installing the sleeve, align the indented internal splines with the detent slots in the hub.
-
NOTE: Do not heat the component longer then 15 minutes or damage may occur.

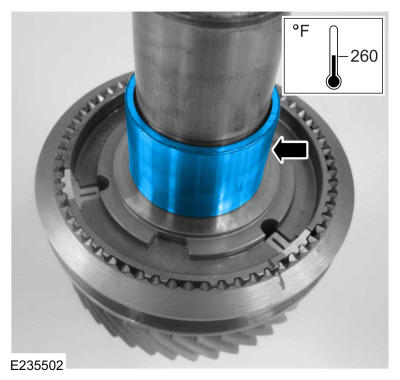

Heat the 1st gear bearing race to 260deg.F and install it on the output shaft.

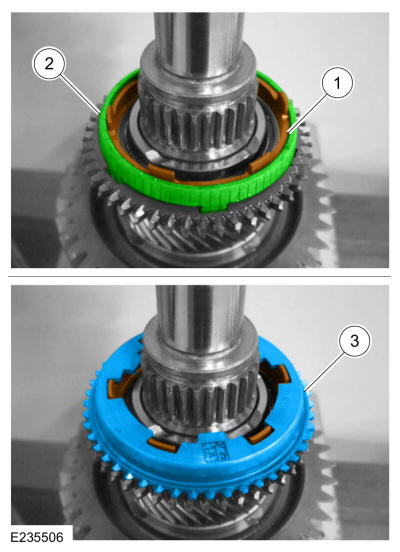

- Install the 1st gear 3-piece synchronizer assembly.
- Install the 1st gear roller bearing.
- Install 1st gear. Align the synchronizer with the slot in the gear.
-
NOTE: Do not heat the component longer then 15 minutes or damage may occur.

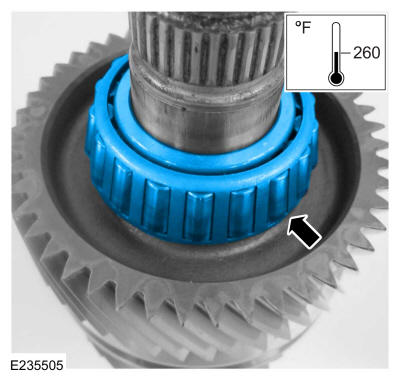

Heat the rear bearing to 260deg.F and install it on the output shaft.

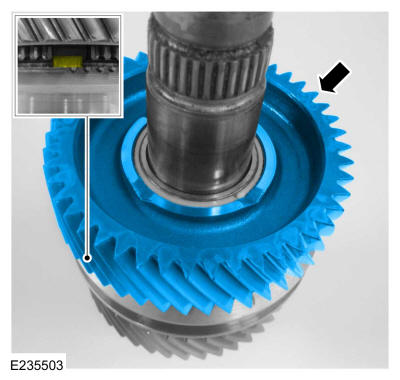

- Install the 6th gear roller bearing.
- Install 6th gear.
- Install the 6th gear 3-piece synchronizer assembly.
- Install the 5-6 synchronizer hub, sleeve and detents. Install the snap ring. When installing the sleeve, align the indented internal splines with the detent slots in the hub.
